58266 Tamiya – 1/10 RC FERRARI 360 MODENA CHALLENGE (TA-04)

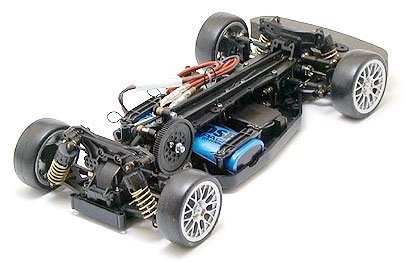

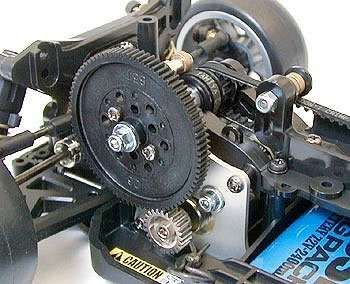

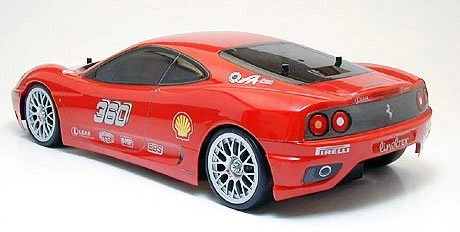

Tamiya is proud to bring out this stunning sports car on the all new TA04 chassis. The full size 360 Modena Challenge, the racing version of Ferrari&39;s latest model, has been designed for the customer who wants to race in the Ferrari Challenge Trofeo Pirelli. The TA04 chassis is full of high performance parts such as 2 belt 4WD system for efficient power transfer, rigid ABS/polycarbonate double deck frame, 4 wheel independent double wishbone suspension for excellent road holding and 6 ball bearings for the front/rear diff gear and center pulley. Various key areas including upper arm length can be adjusted. Kit comes with medium narrow tires type A which can be used in all seasons. Includes type 540 motor.

Basic Specifications

• Chassis Type: TA04
• Scale: 1/10
• Length: 17.5 inches (433mm)
• Width: 7.56 inches (192mm)
• Wheelbase: 10.12 inches (257mm)
• Front Tread: 6.46 inches (164mm)
• Rear Tread: 6.46 inches (164mm)
• Weight: 2.41 lbs. (1095g)
• Chassis: ABS Tub

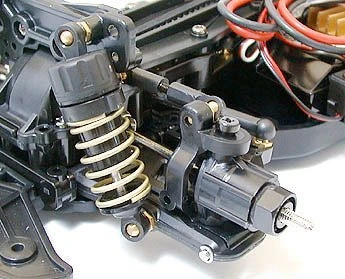

• Suspension: 4 wheel independent/front and
  rear double wishbone
• Damper Type: Plastic coil-over oil filled
• Drive Train: 4WD Dual belt
• Gear Ratio: 7.08:1
• Differential Type: Gear Differential
• Engine: Electric 540

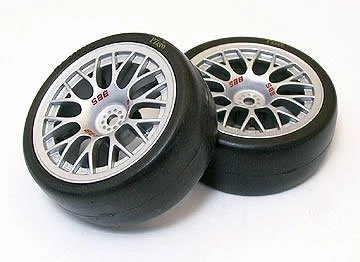

• Wheels & Tires: Mesh wheel / Slick
• Body Type: Clear/Polycarbonate
• Steering Tie Rod: 3part
• Caster Angle-F/R: 10deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Recommended Speed Controller: Electronic
  Speed Controller (not included)
• Damper: F/R CVAMiniII
• Transmission type: 2 Belt Mid-ship Full-time
  4WD
• Tire Width: F/R both 26mm
• Tire Diameter: F/R both 64mm
• Tread pattern F/R: slicks
• Power source: 7.2V battery

Separately Available Items

• RC Unit: Adspec GT-I or 2-channel RC system
  with electronic speed control
• Battery: Tamiya 7.2V Racing Pack or
  equivalent

ELECTRIC KITS REQUIRE:
(unless stated differently above)

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya
  connector
• Charger: AC/DC timed or peak for 6-cell
  battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Items: Building and track equipment
