58267 Tamiya – 1/10 SCALE RC RACING CAR CHASSIS KIT TB EV

• Pure Race Version of the TB-01 Chassis Tamiya
  now releases their highest performance shaft driven 4WD touring chassis to

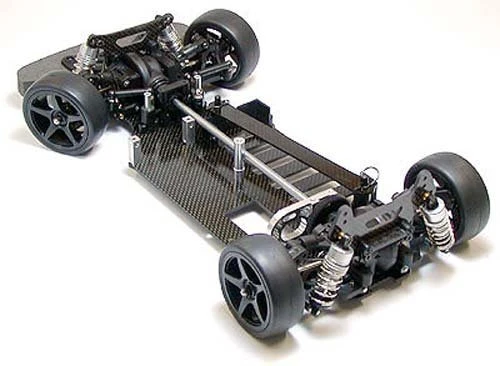

  date, the TB Evolution. The superb performance of the base TB-01 chassis,

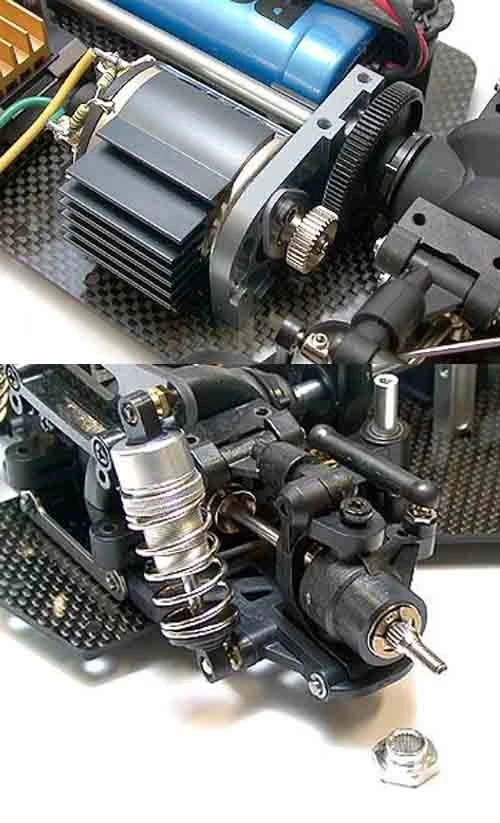

  which features a longitudinally mounted motor combined with a highly reliable
  shaft drive, has been further improved on this special chassis kit. Added

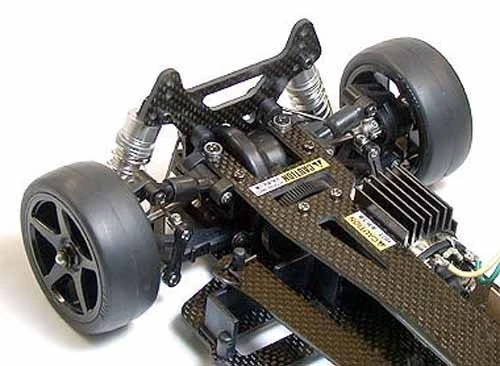

  to the front and rear of the carbon fiber double deck frame, carbon fiber
  damper stays enhance weight savings and overall rigidity. Furthermore, to
  meet the strict setting demands of expert racers, the TB Evolution kit comes

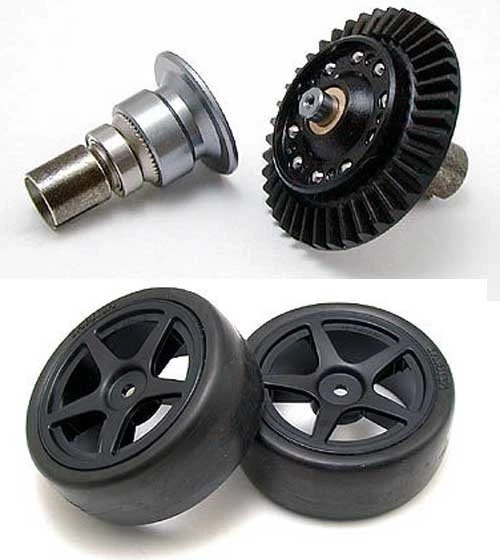

  with highly adjustable TRF Special Dampers, Special Ball Differentials, and
  a long list of other high performance parts.
• Package Evolution :The packaging
  of the TB Evolution is a fresh departure from Tamiya&39;s standard design. Simple
  and compact, this stylish box even comes with a convenient carrying handle.
  Also, the TB Evolution box can be used as a parts case after assembly!

Specifications:

• Overall Length: 365mm
• Overall Width: 184mm
• Overall Height: 135mm
• Minimum Clearance: 8mm
• Weight Fully Equipped: 1,470g (including TP-S3003 servo,
  CPR Unit, motor, RC2400SP battery, but without body)
• Wheelbase: 257mm
• Tread (front and rear): 160mm
• Chassis Material: 2.5mm thick carbon fiber

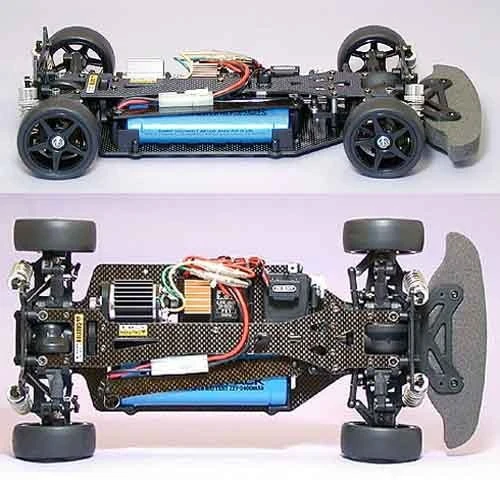

• Chassis Type: double deck frame
• Steering Tie Rods: divided in three segments
• Suspension (front and rear): double wishbone
• Caster Angle (f/r): 8deg./0deg.
• Camber Angle (f/r): variable
• Toe Angle (f/r): variable/2o
• Dampers (f/r): TRF Special Dampers
• Drive Train: shaft driven, full-time 4WD.
• Gear Ratio: 6.73:1(kit standard)
• Diff. Gear System (f/r): one-way/ball diff.
• Speed Controller: electronic speed controller
• Tire Width (f/r): 24mm
• Tread Pattern (f/r): racing slick.
• Tire Diameter (f/r): 64mm

Separately Available Items:

• RC Unit: Adspec GT-I or 2-channel
  RC system with electronic speed control
• Battery: Tamiya 7.2V Racing Pack
  or equivalent, Type 540 Motor.

ELECTRIC KITS REQUIRE:
(unless stated differently above)

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard
  Tamiya connector
• Charger: AC/DC timed or peak for
  6-cell battery
• Paint: PS for Polycarbonate/TS
  for ABS
• Misc. Items: Building and track
  equipment
