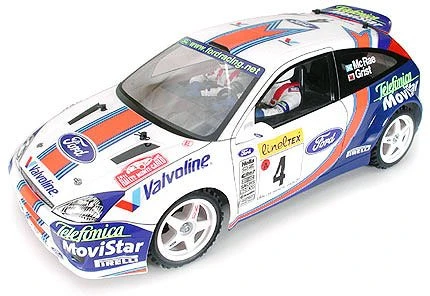

58281 Tamiya – 1/10 RC Ford Focus RS WRC 2001 (TB-01)

About the Ford Focus RS WRC 01Out of all the machines entered by six manufacturers in the intense 2001 World Rally Championship, the Ford Focus RS WRC 01 stood out competitively and gave Ford a superior edge. Since its debut in 1999, the Ford Focus RS WRC underwent various modifications, including engine and suspension upgrades, as well as a tire change from Michelin to Pirelli. Finally, the car’s coloring and main sponsor were also changed.

High Drive Efficiency TB-01 ChassisFor increased drive efficiency the chassis employs a longitudinally installed motor as well as shaft drive and a full set of ball-bearings. The durable, hardened resin main and upper frames are equipped with wheel dampers and independent 4-wheel double wishbone suspension. Aluminum motor heat sink has been installed to prevent overheating.

Basic Specifications

• Overall length: 418mm
• Overall Width: 185mm
• Overall Height: 143mm
• Clearance: 24mm
• Weight Fully Equipped: 1,767g (Measurement includes TP-S3003 servo, CPR Unit and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 157mm
• Chassis Material: ABS
• Chassis Shape: bath tub frame
• Steering Tie Rod: 3 part
• Suspension: front and rear double wishbone
• Caster Angle-F/R: 10deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: longitudinally installed motor with shaft drive 4WD
• Gear Ratio: 9.91:1 (kit standard)
• Diff. Gear System: F/R 3-bevel diff
• Recommended Speed Controller: mechanical speed controller included
• Tire Width: F/R both 27mm
• Tire Diameter: F/R both 69mm
• Tread Pattern: F/R rally block

Required Items (Sold Separately)

• R/C Unit: Adspec GT-1 or FET 2-channel R/C unit with electronic speed control
• Battery: Tamiya 7.2V Racing Pack, or 7.2V Advanced Pack
