58397-53957 Tamiya – 1/10 R/C Toyota Hilux High-Lift 4×4 4WD Truck + Pick-Up Truck (MFC-02) Multi-Function Control Unit
Original price was: $370.00.$99.99Current price is: $99.99.
- Safeguard Your Shopping Experience
- Experience Quality, Shop with Us
- No Compromise on Quality
- Shop the Best Quality Online
Description of Tamiya58397

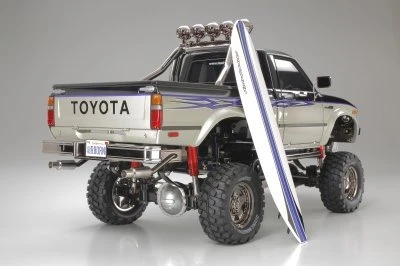

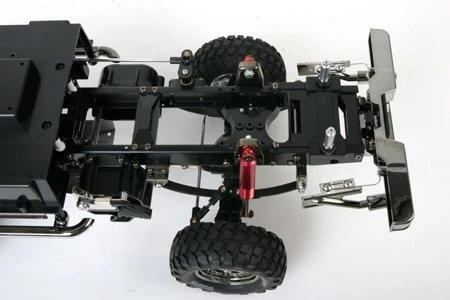

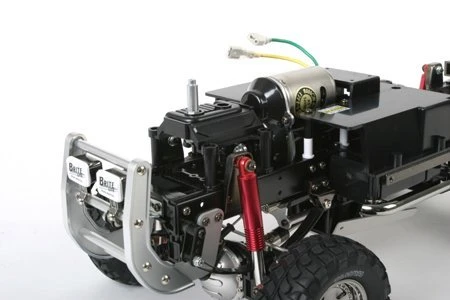

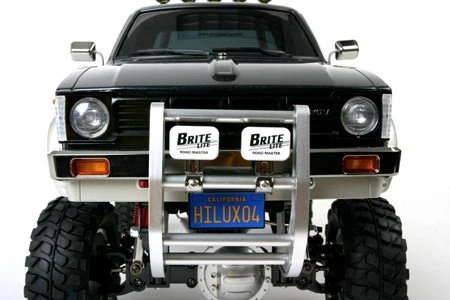

Combining nostalgic feel with modern mechanics, the superbly detailed classic Toyota pick-up truckbody is now mounted on the same chassis as the Ford F-350 High-Lift.
Body parts list
| Item | Descriptions | Quantity needed |
| A9335487 | Front body | 1 |

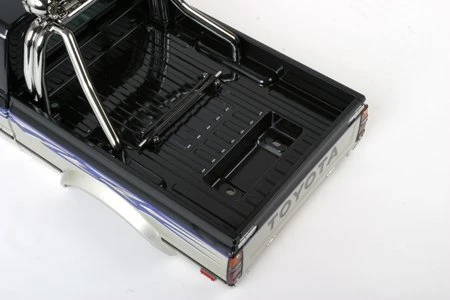

| A9335488 | Rear body | 1 |
| A9335489 | Surf board | 1 |
| A9115194 | k-parts (roll bar) | 1 |
| A9495521 | Sticker a | 1 |
| A9495521 | Sticker b | * |
| A9495521 | Metal transfer | * |
| A9495521 | Rubber sheet | * |
| A9225105 | W-parts (front grill) | 1 |
| A9115196 | P-parts (clear lenses) | 1 |
| A9225104 | T-parts (front windscreen) | 1 |
| A9005869 | D-parts (mirrors) | 2 |
| A9115198 | N-parts (bumpers) | 1 |
| A9115195 | M-parts (license plates) | 1 |
| A9115197 | Q-parts (surf board fins) | 1 |
| A9400655 | Metal parts bag B (screws metal parts) | 1 |
| * included in sticker bag 9495221 | ||
Specs & Features

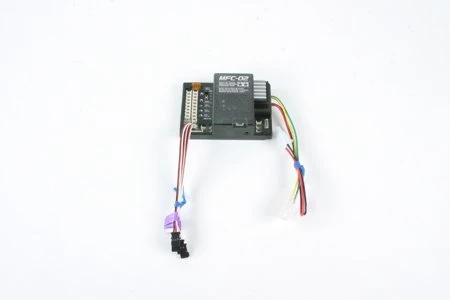

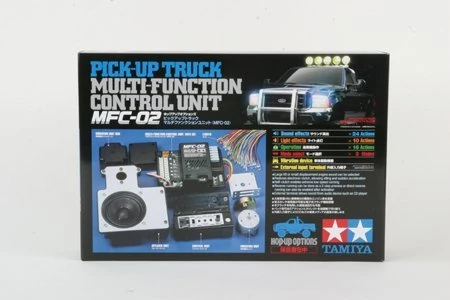

Description of Tamiya53957

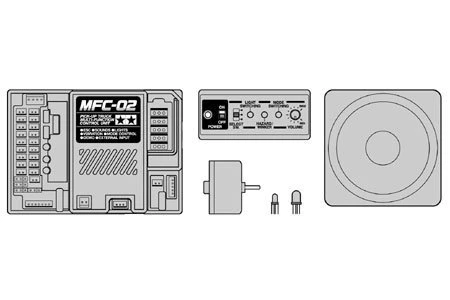

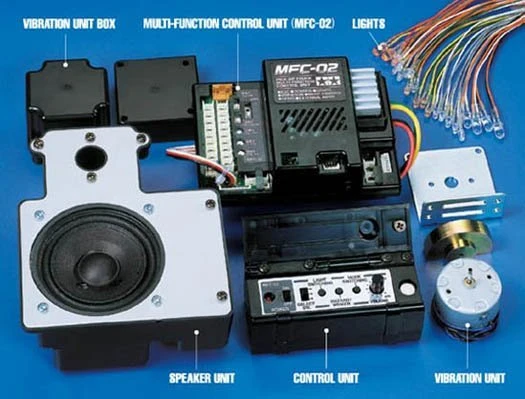

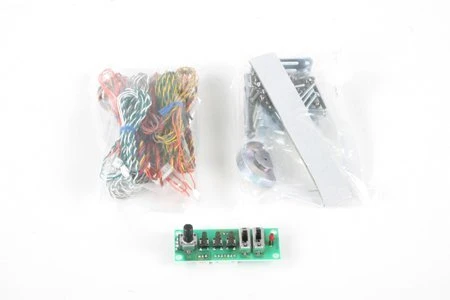

Released in 2006, the 1/10 R/C 4×4 3-Speed High-Lift has been exceptionallywell-received by fans around the world. With the release of this new Multi-Function Unit, Tamiyakicks up the realism another notch with light, sound, and vibration effects all controllable via a 4-channel transmitter (sold separately) to make all the 3-Speed Highlifts even more impressive!!!
LIGHT EFFECTS

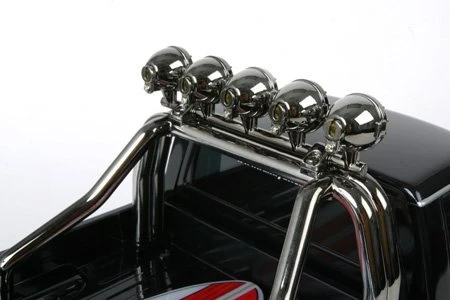

10 types of high-brightness LEDs (including optional LEDs) for a total of up to 33 lights can be controlled to depict various realistic light actions while driving. They can also light up in pre-set patterns during Demo Mode for a brilliant shelf display.
| Headlight 1 | Headlight 2 | High Beam |
| Fog Lamp 1 | Fog Lamp 2 | Fog Lamp 3 |
| Fog Lamp 4 | Fog Lamp 5 | Auxiliary Lights (Front) |
| Auxiliary Lights (Rear) | Turn Signal (Front Right) | Turn Signal (Front Left) |
| Turn Signal (Rear Right) | Turn Signal (Rear Left) | Reverse Lamp |
| Brake Lamp | Flash Lamp |
SOUND EFFECTS
Onboard speaker unit can emit a total of 24 different sound effects (including optional sounds) that were all digitally recorded from actual vehicles, including the operating sounds for both a big imposing V8 engine and a spunky small-displacement turbo engine.
| Engine Starting 1 | Idling 1 | Running 1 |
| Engine Stop 1 | Up-shifting 1 | Down-shifting 1 |
| Horn 1 | Engine Starting 2 | Idling 2 |
| Running 2 | Engine Stop 2 | Up-shifting 2 |
| Down-shifting 2 | Horn 2 | Gear Changing |
| Turn Signal | Timer 1 | Timer 2 |
| Timer 3 | Alarm |
SPECIAL OPERATIONS Up to 16 different actions can be controlled via a 4-channeltransmitter (sold separately) to give the sense of driving a real pick-up truck.
| Steering Control | Throttle Control | Horn Operation |
| High Beam Operation | Gear Shifting Operation | Turn Signal Operation |
| Hazard Lamp Operation | Headlight Operation | Brake Operation |
| Engine Start/Stop Operation |
MORE FEATURES
- Vibration Function Unit recreates rumble movements in conjunction with engine sounds.
- ESC enables realistic low-speed running.

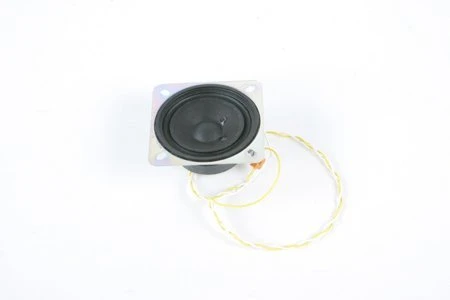

- Speaker Unit not only emits the sound effects mentioned above, it also has an input terminal toallow connection with outside audio sources such as MP3 and CD players for music playback.
- 3 convenient modes of operation: R/C mode with Multi-Function effects off, R/C mode withMulti-Function effects on (4 varieties), and Demo Mode for static display with light and soundeffects only (4 varieties).
- Detailed and user-friendly set-up guide and tutorials to assist users with proper operation of allthe MFC-02 features (please see the next page for some preliminary sample diagrams).
SEPARATELY REQUIRED ITEMS
- 4-channel self-neutral stick-type transmitter equipped with slide trim and self-neutral feature foroptimum performance. (Futaba Attack 4WD recommended)
Tamiya recommends the Futaba Attack 4WD (T4VWD/FP-R114H) because it has a self-neutral feature. Other 4-channel transmitters made by Futaba, JR Propo, and Acomscan be used with the MFC-02, but operations may not be as smooth as they may lackthe self-neutral feature and connectors may not be compatible. As for transmittersfrom other makers, while it may be possible to use them, please note that there maybe instances where they may not be able to operate all of the MFC-02&39;s functions. - 4-channel receiver.
- 2 servos.
SPECIAL NOTES
- Do not use together with ITEM 53909 TLU-01 or ITEM 53937 TLU-02.
- MFC-02 is compatible with the Type 540 motor only. Please avoid installing other motors.
- MFC-02 cannot be operated with 2-channel or 3-channel transmitters/receivers.
- MFC-02 is not compatible with PCM type receivers, multi-channel receivers, and olderreceivers made by Sanwa (identifiable by their black cases).
- Not Compatible with 2.4ghz systems or others that have digital trim
