58414 Tamiya – 1/10 RC Mercedes-Benz Unimog 406 Series U900 CR01 CR-01 Chassis

The 1/10 scale raio control 4×4 off road car, Mercedes-Benz Unimog 406 series
U900

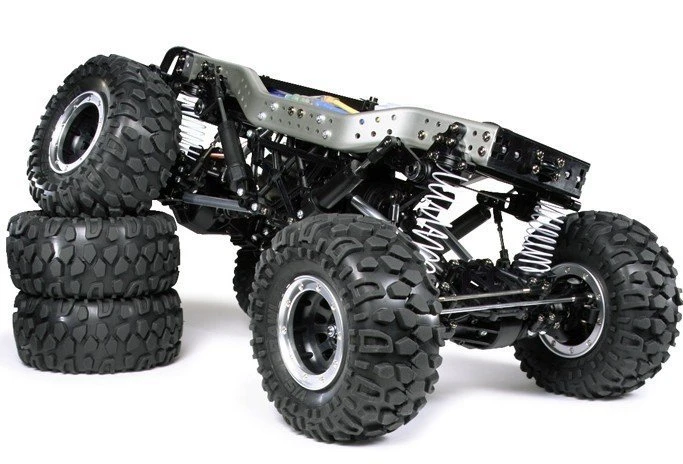

• CR-01 Crawler Chassis, This tough ladder frame chassis features a stabilizer-equipped,
  4-link suspension system providing maximum stroke and ground clearance. The
  centrally-mounted motor effectively transfers power to all four wheels via
  propeller shafts

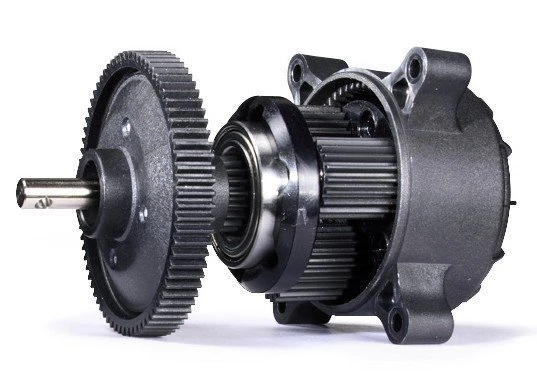

• Planetary Gear, Center gearbox features planetary gears and has a compact
  design which enables the battery to be mounted lower to give the chassis is
  a better center of gravity. Furthermore, expandable propeller shafts efficiently
  transfer power without interfering with suspension operation.
• Heavy Duty Aluminum Channels, Realistic ladder frame construction features
  durable aluminum channels and resin cross members.
• Tires, Massive off-road tires with inner sponges have tread pattern on the
  sidewalls to traverse any terrain and re mounted on new 3-piece beadlock wheels.

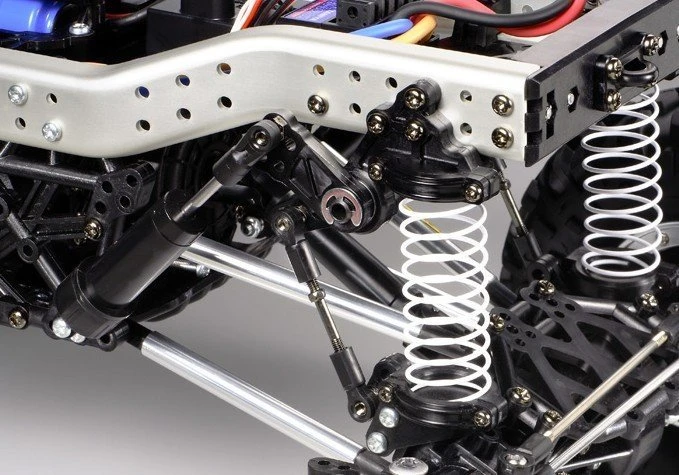

• 4-link suspension, front and rear axle housings are each supported by 4
  aluminum rods that provide plenty of stroke. Dampers are actuated via push
  rods and rocker arms, and the separate coil springs work with the stabilizer
  bars to help prevent rollovers
• Newly designed 3-piece beadlock wheels mounted with massive 125mm diameter
  and 56mm wide rock crawler tires are ready for any terrain.
• Can be fitted with Yellow (Front) and Red (Rear) TLU-01 LED Lights (ITEM
  53909)

Specs:

• Full Ball Bearings
• Planetary gearbox comes with 20T pinion gear for a 40.5:1 gear ratio
• 125mm Diameter rock crawler tires
• With 540 type motor

Requires:

• ESC and 2ch Radio w/1 servo
• Requires Paint and Assembly
• Do not use the TEU-101BK (Item 45029) with CR-01 Crawlers. The 101BK will
  overheat easily with the rigors of crawling. We&39;d recommend the TEU-302BK
  (Item 45028) for use with the CR-01
