58473 Tamiya – 1/10 RC Datsun 240Z Drift Spec – TT01ED

Japan&39;s First Fairlady Z in Drift Specs

First released in 1969 was Japan&39;s Datsun Fairlady Z which quickly became an
extremely popular machine in particular America where it got its nickname ��Z��.

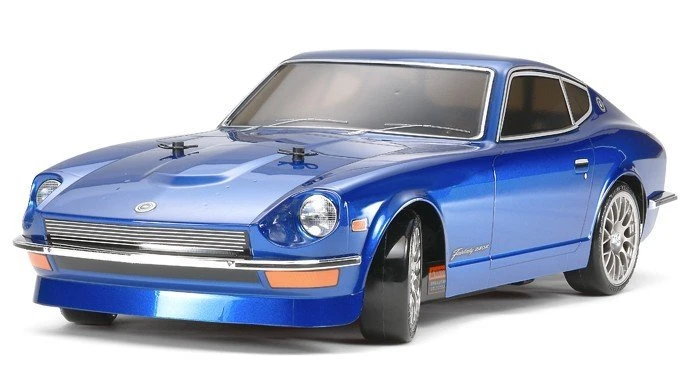

The S30 Fairlady Z which is still popular even today now comes accurately reproduced
as a 1/10 R/C assembly kit. The kit included polycarbonate body accurately reproduces
the Z&39;s long-nose, short-deck stylish form. Separately molded light cases and
metal plated front & rear bumpers provide the model with greater scale realism.
Also included are LED lights to depict realistic head (white) and tail (red)
lighting action. This machine comes mounted on the TT-01D Type-E chassis which
features many drift spec parts to enable thrilling drift driving.

TT-01 Type-E with Drift Specifications

The TT-01 Type-E drift-spec chassis features excellent chassis rigidity thanks
to its fiberglass reinforced nylon upper deck and gear covers. The Super Driftech
Tires enable easy drift control and offer great durability. The 4-wheel double
wishbone suspension is equipped with CVA Super Mini oil dampers and short springs.
In addition, ball bearings reduce friction loss to efficiently transmit the
power from the Sport-Tuned Motor. Furthermore, an aluminum motor heatsink is
included to effectively dissipate motor heat.

Specs & Features

• Length: 451mm,
• Width: 190mm,
• Height: 132mm
• Wheelbase: 251mm
• Tire Diameter (F/R): 24/63mm
• Bathtub Type Chassis Frame
• Longitudinally-Placed Motor Shaft-Driven Full-Time
• F/R 3-Bevel Differential Gears
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• F/R Friction Dampers
• Gear Ratio=8.35:1
• Type 540 Motor Included
• Requires Electronic Speed Controller (separately available)

Separately Required Items

• Finespec FM Radio Control System w/ESC
• Tamiya Battery Pack
• R6/AA/UM3 Batteries (x8) for Transmitter
