58534 Tamiya – 1/10 RC F104 Ver.II Pro Chassis Kit – F104V.2

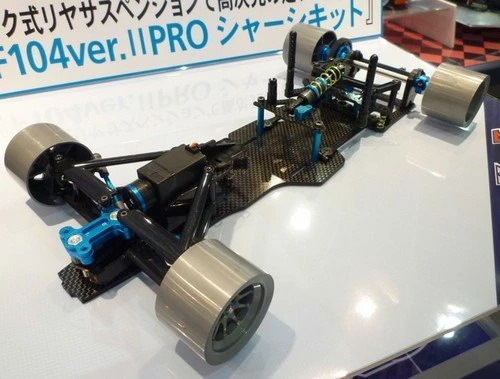

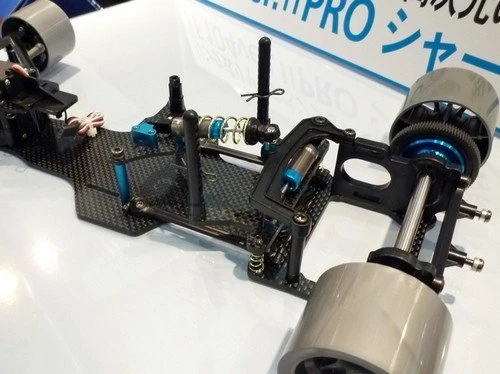

• The new F104 version II chassis incorporates a Pivot
  Ball Link Rear Suspension (PBLR) like the one found on the RM-01 chassis.
  Compared to the previous 3-point T-bar rear suspension system, this new setup
  enables more precise adjustments of the chassis&39; pitch and roll characteristics.
  Furthermore, the PBLR suspension system features a center pivot ball, an aluminum
  pitch damper to temper chassis pitch movement, and an aluminum roll damper
  and side links to control chassis roll. The new layout also increases overall
  traction and provides greater high speed cornering ability. The proven F104
  front suspension remain intact, which features king pin coil springs for the
  suspension set up.

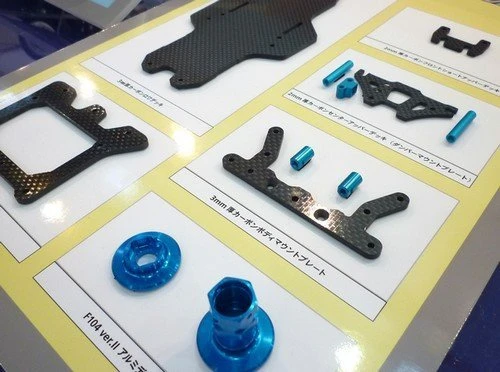

The following Hop-Up Options are included in the
kit:

• 3mm Carbon Fiber Lower Deck
• 3mm Carbon fiber lower brace
• 3mm Carbon Fiber body-mount plate
• 2mm Carbon Fiber Upper Deck (front/rear)
• 3×35 Aluminum Turnbuckle Shafts (blue) x2
• New Aluminum Diff housing (uses TRF417 diff rings)
• Item 54342 RM-01 Aluminum Roll Damper set
• Item 54341 RM-01 Aluminum Pitch Damper set
• Item 54240 F104 Clamp Type Wheel hub
• Item 54209 5x5mm Aluminum Hex Head Ball Connector (fluorine
  coated)
• Item 54202 F104 Aluminum Upper Suspension Mount
• Item 54161 F104 Low Friction Suspension Ball Set
• Item 54159 Aluminum Horn for Hi-torque servo saver (F104)
• Item 53900 04 Module Spur Gear Set (93T/104T)
• Item 53601 Low Friction 5mm Adjuster (8pcs.)
• Item 53599 Fluorine Coated 5mm Aluminum Ball Connector
  (10pcs.)
• Item 51000 Hi-Torque Servo Saver (black)
• Item 50509 F1 Front Spring Set

Specs and Features:

• Scale: 1/10 scale
• Construction type: assembly kit
• Terrain use: on-road
• Drive-train: 2WD
• Drive type: pinion to spur gear
• Drive line: solid axle
• Differential type: ball pressure plate
• Suspension: PBLR (Pivot Ball Link Rear Suspension)
• Steering mechanism: direct servo
• Shock damper: oil-filled damper
• Shock damper material: aluminum
• Tire type: not inluded
• Tire tread: n/a
• Body material: n/a
• ESC: not included
• ESC type: n/a
• LED Light buckets: no
• LED lights: no
• Motor type: not included
• Bearings: shielded ball bearing
• Chassis material: carbon fiber plate
• Sticker material: n/a
• Internal gear ratio:
• Adjustable camber: front only
• Adjustable toe angles: front only
• Adjustable ride height: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: yes
• Adjustable track width: fixed
• Adjustable shock angle: yes
• Anti-squat adjustment: n/a
• Droop adjustment: n/a
• Special features: 3.0 mm carbon chassis
• Requires: 7.2 battery, charger
• Requires: polycarbonate paint
• Requires: radio gear, servo, receiver
• Requires: wheels, tires, body set, motor, esc
