58551 Tamiya – 1/10 RC Toyota 86 Drift Spec – TT01D Type-E

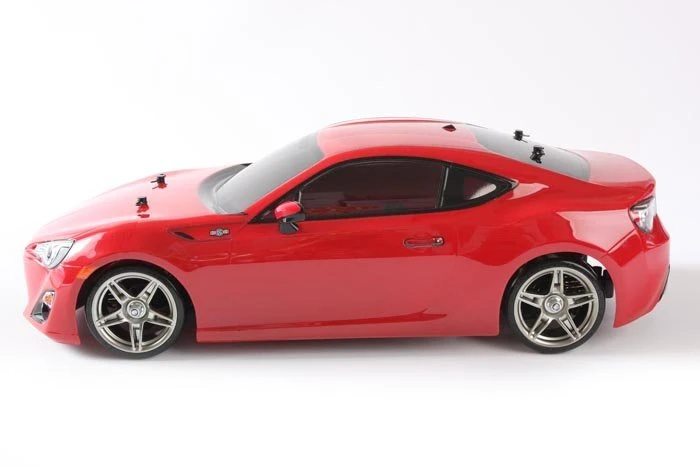

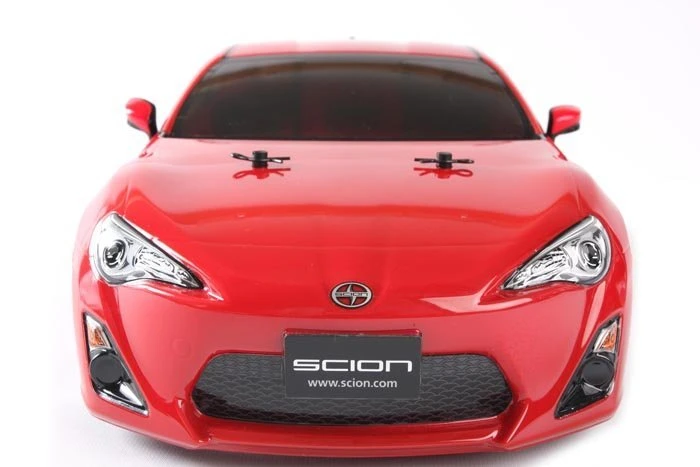

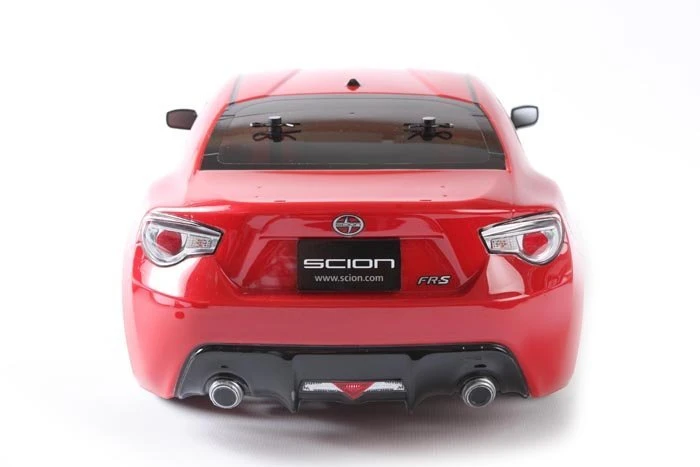

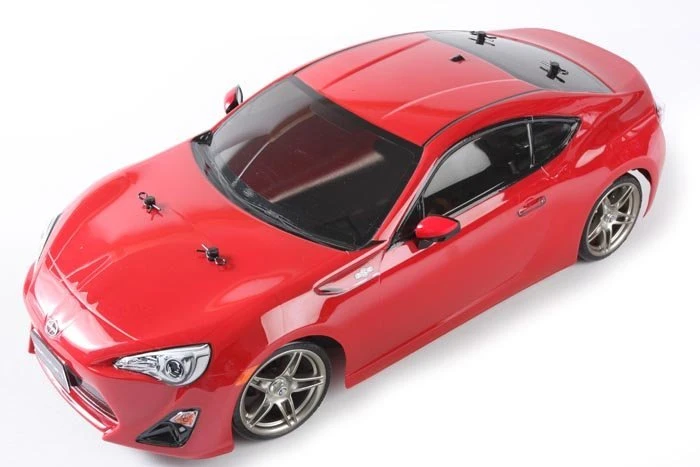

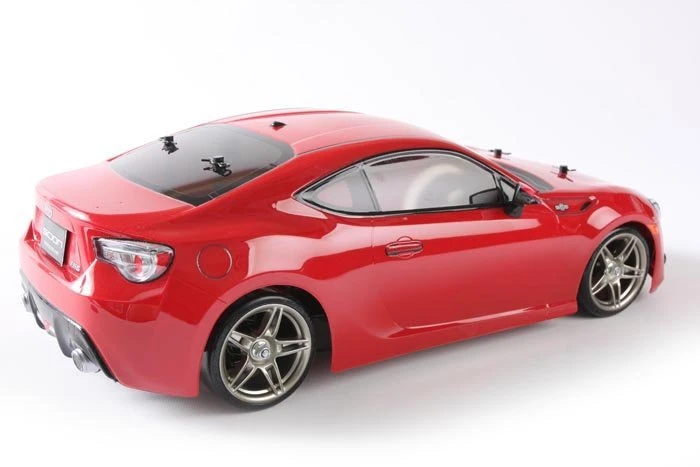

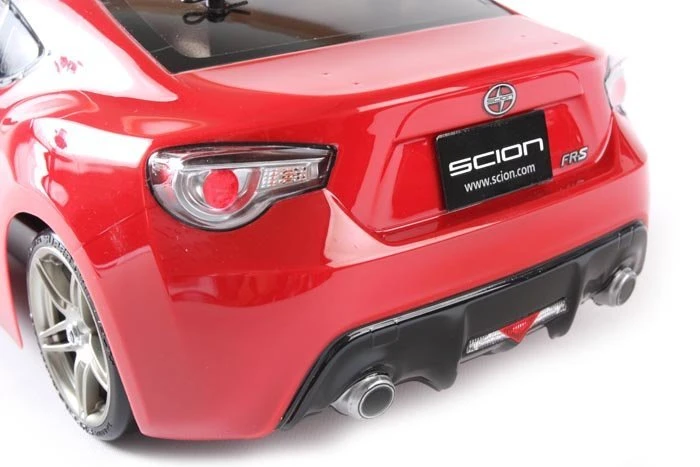

This is the electric powered 1/10 scale, Toyota 86 On-Road Drift Spec Car Kit

Features:

• Chassis: TT-01D type E with shock tower now molded separately from the
  gear case covers and new upper deck with transponder mount new A parts (Uprights)
  made of polycarbonate plastic material new D parts (upper deck, motor cover
  and more) made of fiberglass- reinforced nylon material
• Drive: Four wheel shaft drive
• Motor: 540 motor with pre-attached leads and blue aluminum heat sink
• Ball Bearings: Installed in differentials, bushings in wheel hubs
• Shocks: Oil-filled, plastic body CVA Super Mini
• Gearbox: Sealed, front and rear
• Differentials: Bevel gear, ball bearing equipped
• Transmission: Single speed
• Body: Polycarbonate, clear
• Tires: Super Driftech drift spec resin 1″ (26mm) wide, 2.5″ (63mm) diameter
• Wheels: Plastic, two sets, 2.0″ (52mm) outer diameter, 0.94″ (24mm) wide,
  +2�X offset
• Bumper: Front foam
• Suspension: Independent double wishbone
• Camber: Non-adjustable, camber refers to the angle of the tops of the tires
  from vertical when viewed from front or behind vehicle
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension
  when viewed from the side of the car in relation to the chassis
• Steering: Bell-crank type with servo saver

Includes:

• Tamiya Toyota 86 On-Road Drift Spec Car kit,
• 540 motor,
• clear body,
• tires,
• foam bumper,
• spoke wheels,
• 19 tooth pinion gear,
• 61 tooth spur gear,
• decals
• instructions

Requires:

• Radio: 2-channel with one servo
• Radio Batteries: 8 AA size (for transmitter)
• Battery: 6-cell stick pack with standard connector
• Charger: AC/DC timed or peak for 6-cell battery
• Misc. Items: Building and track equipment
• Electronic Speed Control

Specs:

• Length: 17.4″ (444mm)
• Width: 7.4″ (187mm)
• Height: 5.2″ (132mm)
• Weight: Approx. 3.1lbs (1400g)
• Wheelbase: 10″ (251mm)
