58555 Tamiya – 1/12 RC Mazda 787B No.18 – RM01 Le Mans 24 Hours 1991

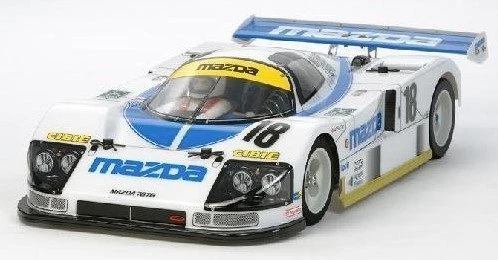

The 1991 Mazda 787B Le Mans racer is the latest body to be offered in the RM-01
kit product line-up. Tamiya created the RM-01 chassis in response to the 1/12

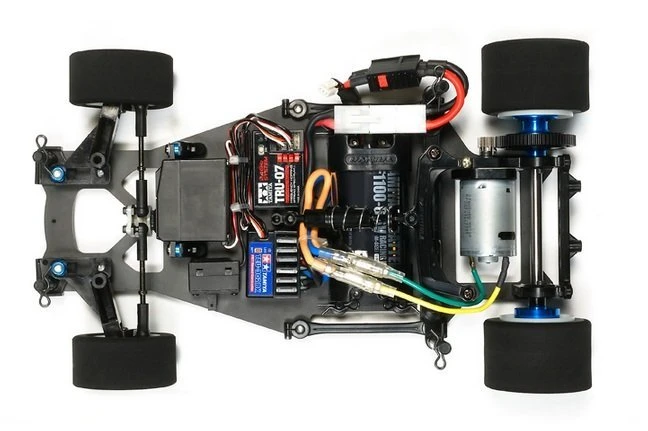

scale racing resurgence around the world. The chassis features a Direct Drive
2WD setup and a pivot-ball link rear (PBLR) suspension to offer linear throttle
and steering response and realistic racing action.

Specs and Features

• Scale: 1/12 scale
• Construction type: assembly kit
• Terrain use: on-road
• Drive-train: 2WD RWD

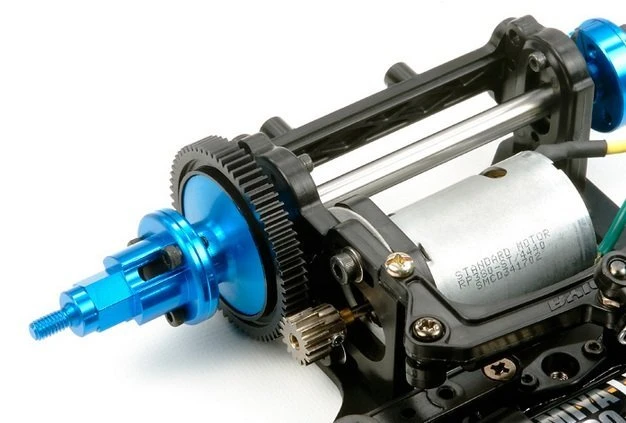

• Drive type: pinion to spur gear
• Drive line: solid axle
• Differential type: ball pressure plate

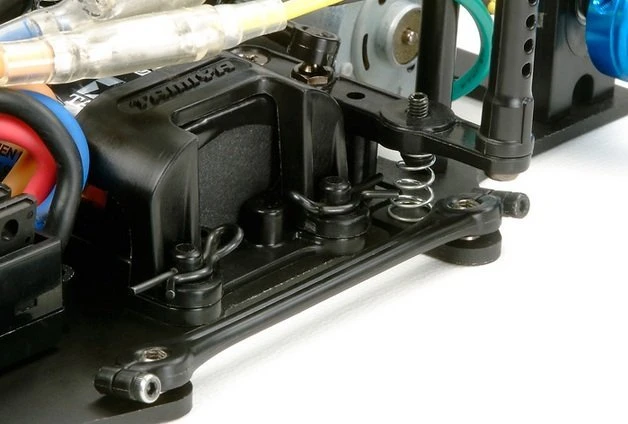

• Suspension: PBLR (Pivot Ball Link Rear Suspension)

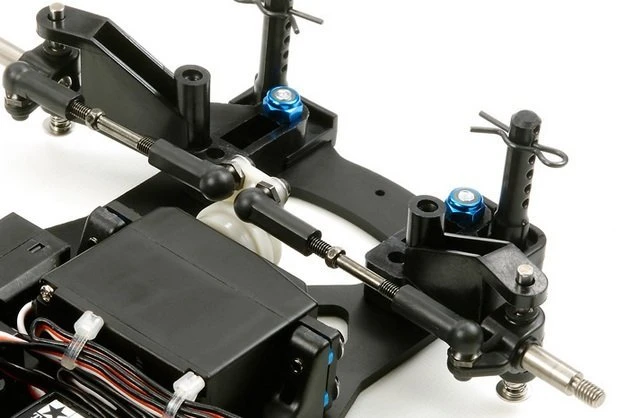

• Steering mechanism: direct servo
• Shock damper: friction damper
• Shock damper material: plastic
• Tire type: foam
• Tire tread: slick

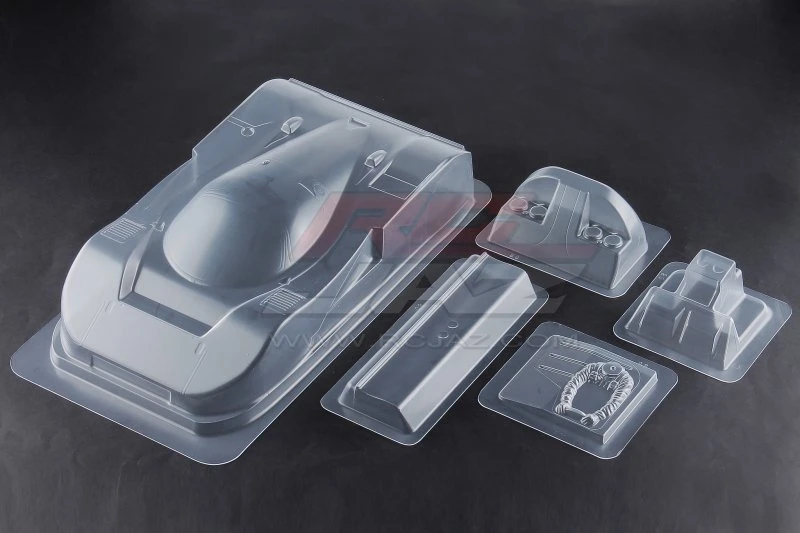

• Body material: Clear Polycarbonate
• ESC: not included
• ESC type: N/A
• LED Light buckets: no
• LED lights: no

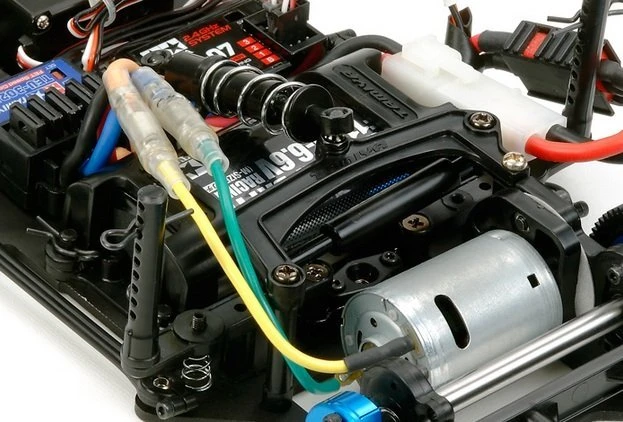

• Motor type: 380-brushed type
• Bearings: shielded ball bearing
• Chassis material: FRP
• Sticker material: vinyl
• Internal gear ratio:
• Adjustable camber: fixed
• Adjustable toe angles: front only
• Adjustable ride height: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: fixed
• Adjustable track width: fixed
• Adjustable shock angle: fixed
• Special features:
• Requires: radio gear, servo, receiver
• Requires: polycarbonate paint
• Requires: 3.2V battery & charger
