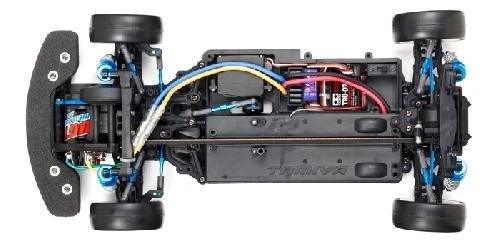

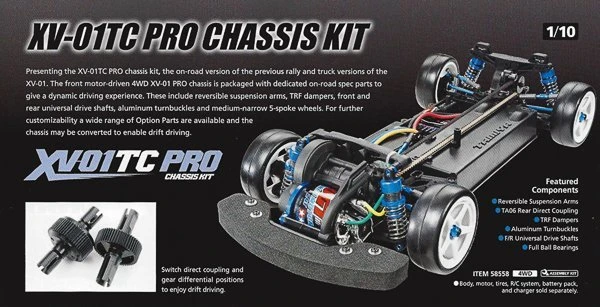

The XV-01 is a crossover chassis which has been designed
to offer a dynamic R/C driving experience. In addition to the previous rally
and truck versions of the XV-01, the on-road version chassis can also be converted
to a drift-spec chassis. Kit features XV-01 PRO chassis coupled with on-road

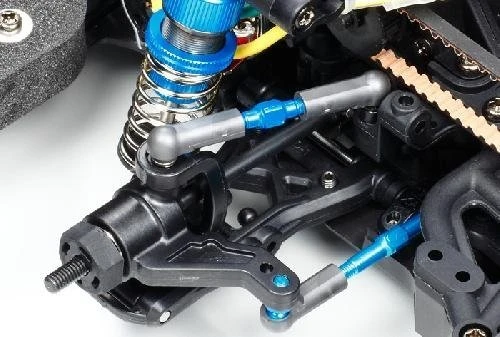

spec parts as follows: - Reversible Suspension Arms and TA06 Suspension
- TA06 Rear Direct Coupling

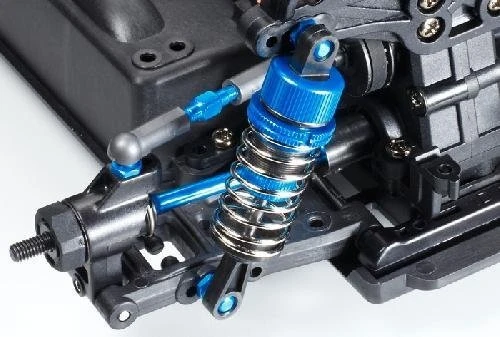

- TRF Dampers
- Aluminum Turnbuckles
- F/R Universal Drive Shafts w/Axle Ring Spring
- Medium-Narrow 5-Spoke Wheels
Specs and Features:
- Construction type: assembly kit
- Terrain use: on-road
- Drive-train: 4WD
- Drive type: multi
- Drive line: universal

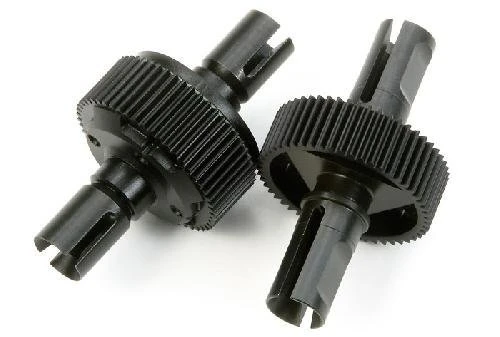

- Differential type: gear
- Suspension: fully independent double wishbone
- Steering mechanism: bell-crank
- Shock damper: oil-filled damper
- Shock damper material: aluminum
- Tire type: not included
- Tire tread: n/a
- Body material: n/a
- ESC: not included
- ESC type: n/a
- LED Light buckets: no
- LED lights: no
- Motor type: not included
- Bearings: sealed ball bearing
- Chassis material: plastic
- Sticker material: vinyl
- Internal gear ratio: 2.6
- Adjustable camber: yes
- Adjustable toe angles: front and rear
- Adjustable ride height: yes
- Adjustable gear ratio: yes
- Adjustable wheelbase: yes
- Adjustable track width: yes
- Adjustable shock angle: yes
- Special features: Chassis features a front-motor, belt-driven 4WD layout with the battery pack positioned along the
- Center-line for excellent balance.
- Requires: 7.2 battery & charger
- Requires: wheels, tires, body set, motor, esc
- Requires: radio gear, servo, receiver
Note: Drive belt covers, wheel well liners, and R/C unit covers are not included.
