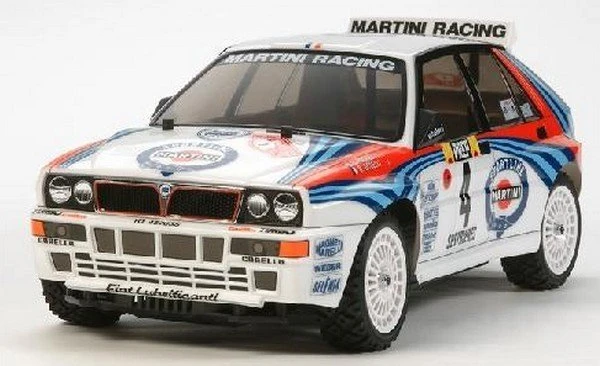

58569 Tamiya – 1/10 RC Lancia Delta Integrale – XV-01

The Lancia Delta Integrale, which has made a number of appearances on various
Tamiya chassis platforms over the years, now makes its home on the XV-01 chassis.
The Lancia Delta Integrale was a legendary Rally warrior, as fans of the sport
are sure to remember, as it won 6 titles back-to-back at the end of the 1980s
and start of the 1990s.

The 4WD XV-01 chassis offers dynamic R/C rally driving on both tarmac and gravel
surfaces. It features a front-motor, belt-driven 4WD layout with front and rear

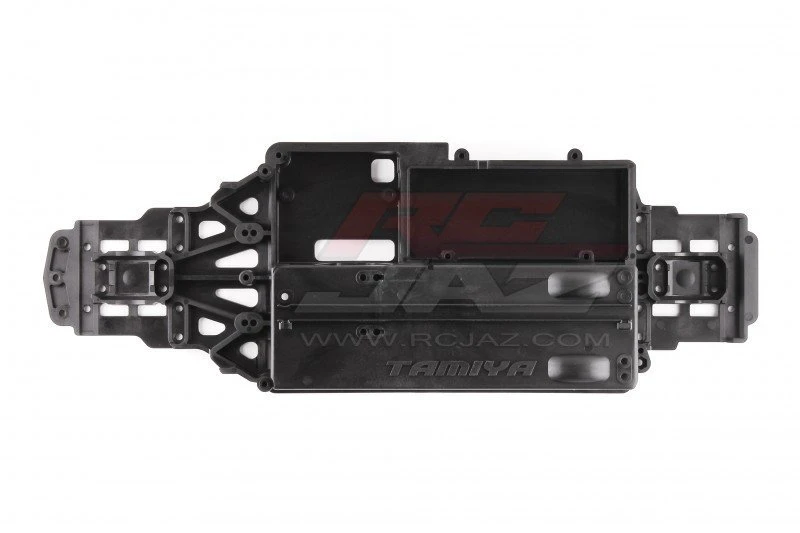

enclosed gearboxes equipped with gear differential units. The box-like main
frame incorporates covers and wheel well liners to provide superb protection
against dirt and debris. The 4-wheel double wishbone suspension ensures plenty
of suspension stroke and ground clearance and is matched with Rally Block Tires
on replica wheels for realistic handling.

Specifications:

• Scale: 1/10

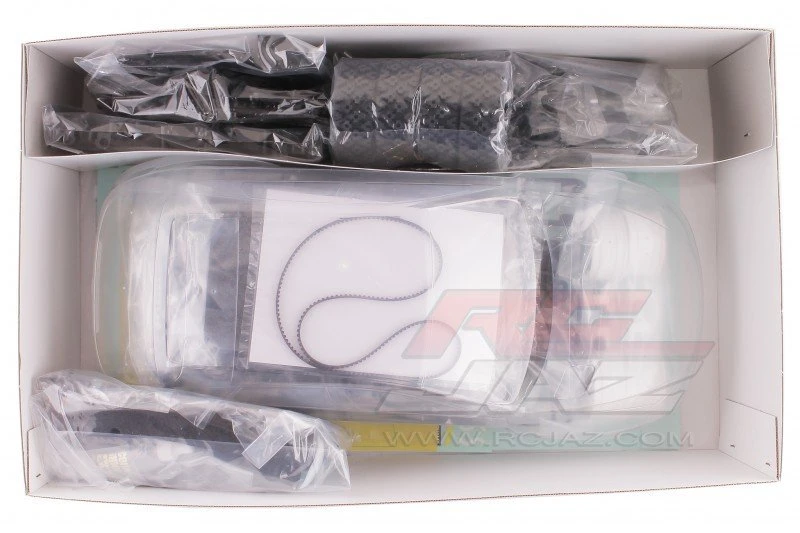

• Construction type: assembly kit
• Terrain use: multi-purpose
• Drive-train: 4WD
• Drive type: Dual-Drive
• Drive line: dog bone
• Differential type: gear
• Suspension: fully independent double wishbone
• Steering mechanism: bell-crank
• Shock damper: oil-filled damper
• Shock damper material: plastic
• Tire type: rubber
• Tire tread: rally block
• Body material: Polycarbonate
• Chassis material: plastic
• Electronic Speed Control (ESC): not included
• ESC model: n/a
• LED Light buckets: no
• LED lights: no
• Motor: 540-brushed type
• Bearings: shielded ball bearing
• Adjustable camber: yes
• Adjustable toe angles: front and rear
• Adjustable ground clearance: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: fixed
• Adjustable track width: fixed
• Adjustable shock angle: yes
• Special feature 1: Dust covers for debris protection for radio gear
• Special feature 2: Front-mounted motor is housed in a gearbox which has
  been designed for ease of maintenance
• Special feature 3: Radio gear components are protected by covers that are
  secured by screws
• Special feature 4: A hatch on the underside of the XV-01 chassis enables
  quick access to the battery
• Special feature 5: Holes in the chassis bottom help remove any debris which
  may block steering movement during off-road use
• Special feature 6: Reversible-type rear suspension ensures plenty of suspension
  stroke for off-road driving
• Special feature 7: The separate suspension mounts makes it easy to change
  settings such as toe angle
• Requires A: 2-channel radio gear & electronic speed control
• Requires B: 7.2 battery & charger
• Requires C: polycarbonate paint
