58592 Tamiya – 1/10 RC Rock Socker Truck CR-01

This is a CR-01 Rock Crawling chassis which has been outfitted with a modified
Stadium Blitzer body. The CR-01 Chassis features a 4-link suspension with a
number of features that enable driving on extremely bumpy and uneven terrain.

• Scale : 1/10
• Construction type : assembly kit
• Terrain use : multi-purpose
• Drive-train : 4WD
• Drive type : gearbox
• Drive line : solid axle
• Differential type : gear
• Suspension : solid axle
• Steering mechanism : direct servo
• Shock damper : oil-filled damper
• Shock damper material : plastic
• Tire type : rubber
• Tire tread : block-pattern
• Body material : Polycarbonate
• Chassis material : aluminum & plastic
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : 540-brushed type
• Bearings : shielded ball bearing
• Adjustable camber : fixed
• Adjustable toe angles : front and rear
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : yes

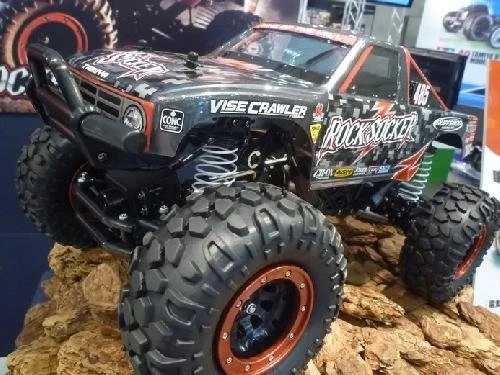

• Special feature 1 : The body of the car is based upon a Tamiya classic, the Stadium Blitzer, which has been modified, featuring an updated color scheme and brand new marking stickers.
• Special feature 2 : The shaft driven chassis features a compact planetary gearbox which transfers power to the wheels, and is small enough to enable a lower center of gravity.

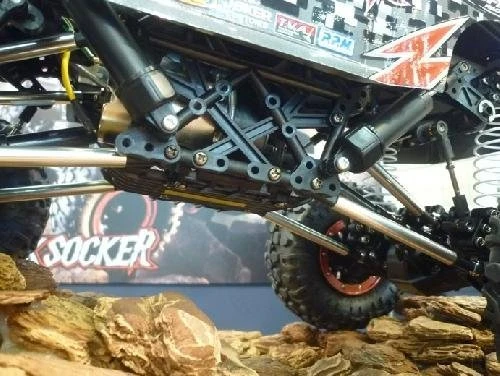

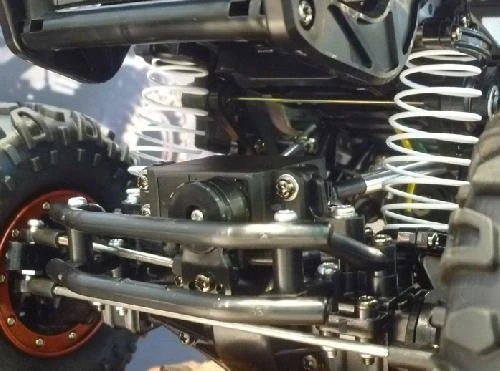

• Special feature 3 : The CR-01 chassis? supreme climbing ability stems from the rigid 4-link suspension with front/rear stabilizers. It is fitted with push rod-actuated oil dampers, with coil springs to act as tension springs. Front and rear 3-bevel differentials are lockable to provide even better traction off-road.

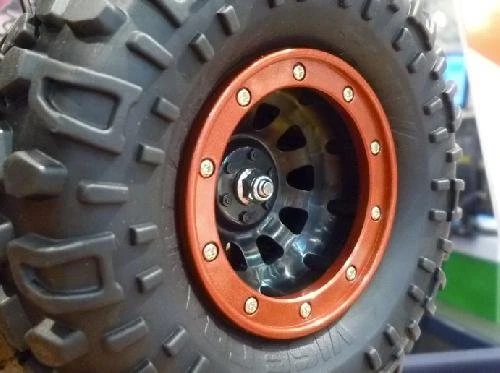

• Special feature 4 : Tires with side tread patterns provide further-enhanced grip.
• Requires A : 2-channel radio gear & electronic speed control
• Requires B : 7.2 battery & charger
• Requires C : polycarbonate paint
