58617 Tamiya – 1/10 Nissan GT-R LM Nismo Launch Version (F103GT)

Tamiya has released prototype version of the FF layout Nissan GT-R. The sports prototype
racing car is built by the Nissan Motor Company and their motorsports division
Nismo. For now you can check out the official press release information below.

Designed for the Le Mans Prototype 1 Hybrid (LMP1-H) regulations of the
FIA World Endurance Championship and the 24 Hours of Le Mans, the GT-R LM is
unique amongst Le Mans Prototypes because it utilizes a front mid-engine layout
for its internal combustion engine as opposed to the rear mid-engine layout
used by nearly all other competitors in the category. It is Nissan&39;s first prototype
since the R391 competed in 1999. The car is branded after the Nissan GT-R road
car and shares similar engine and drivetrain configurations, but is not related
to the sports car. The GT-R LM Nismo program was announced on May 23, 2014.

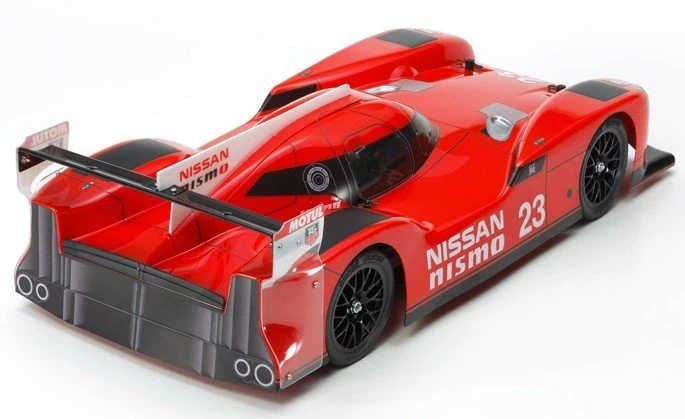

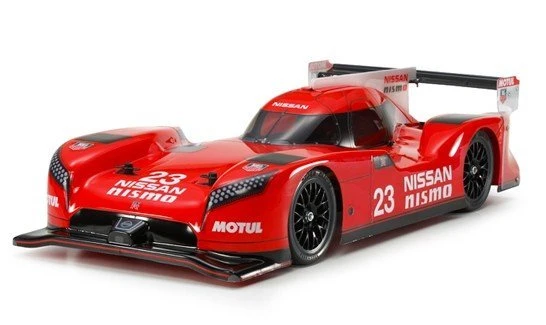

The Tamiya RC rendition faithfully captures all of the real subject nuances
and sleek body form.

• Scale: 1/10
• Construction type: Assembly kit
• Terrain use: On-Road
• Drive-train: 2WD
• Drive type: Pinion to spur gear
• Drive line: Solid axle
• Differential type: Ball pressure plate
• Suspension: Front kingpin coil spring independent suspension/solid axle
  rear
• Steering mechanism: Direct servo
• Shock damper: Friction damper
• Shock damper material: Plastic
• Tire type: Rubber
• Tire tread: Slick
• Body material: Polycarbonate
• Chassis material: FRP (Fiber Reinforced Plastic)
• Electronic Speed Control (ESC): Not included
• ESC model: N/A
• LED Light buckets: No
• LED lights: No
• Motor: 540-brushed type
• Bearings: Shielded ball bearing
• Adjustable camber: Fixed
• Adjustable toe angles: Front only
• Adjustable ground clearance: Yes
• Adjustable gear ratio: Yes
• Adjustable wheelbase: Fixed
• Adjustable track width: Fixed
• Adjustable shock angle: Yes

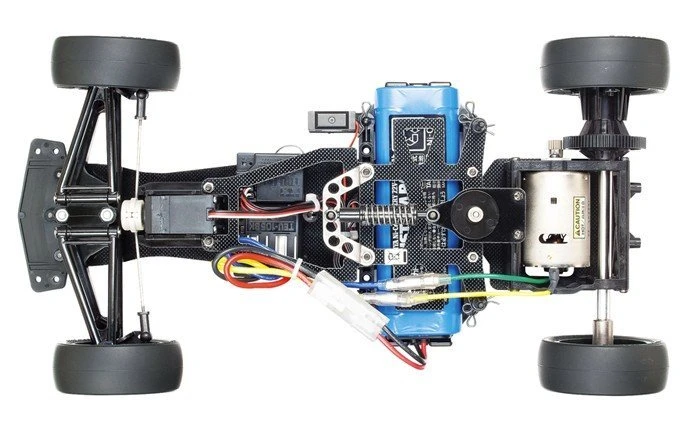

• Special feature 1: The F103GT chassis offers zippy, sharp running thanks
  to a rear 2WD direct drive setup.
• Special feature 2: FRP double deck frame features 1.5mm thick upper and
  2.5mm thick lower deck.
• Special feature 3: Front coil spring independent suspension employs link-type
  arms. Rear rigid type suspension features FRP T bar, friction damper plate
  and coil spring shock unit.
• Special feature 4: Height adjustable gear case allows wide range of settings.
  Includes ball differential for high traction running.
• Special feature 5: Front uprights with caster angle of 3 degrees are equipped
  with 850 ball bearings.
• Requires A: 2-channel radio gear & electronic speed control
• Requires B: 7.2 battery & charger
• Requires C: Polycarbonate paint
