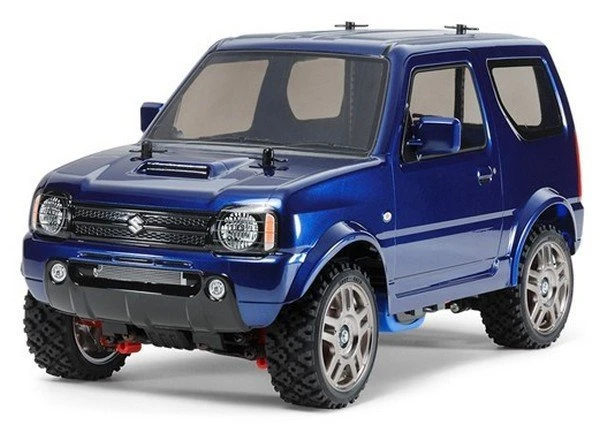

We are excited to see that Tamiya has released Suzuki Jimny (JB23) (58621) in 1/10 MF-01X chassis and comes with a Metallic Blue painted body. It allows radio control modelers to concentrate on building their car while leaving the paint task to the Tamiya experts at the factory. For now you can check out the official press release information below.
The MF-01X is a compact chassis that revolutionizes the M-Chassis genre. The
Jimny body that is mounted on the chassis, of course, has been on sale as one
variant or another since 1970, gaining numerous fans thanks to its versatility
and toughness. The JB23 depicted by this model is one of the 3rd generation
Jimnys introduced in 1998 which had a modernized, rounded body design. It featured
a feisty little fuel injected, turbocharged 658cc engine and was a popular car
in the domestic Japanese market.
Key Design Points:
- Power is transmitted from the rear mounted motor to the front wheels via
a propeller shaft that runs down the side of the MF- 01X. Gearboxes are integrated
into the monocoque for a sturdy and easy-to-assemble structure. - The MF-01X has a three-section make-up; changing the central spacer section
enables short
(210mm), middle (225mm), and long (239mm) wheelbases. Item 58614 uses a middle
wheelbase; option parts Item 54654 is needed to change to a short wheelbase,
and Item 54655 when changing to a long wheelbase.
Spec:
- Scale: 1/10
- Construction type: Assembly kit
- Terrain use: Multi-Purpose
- Drive-train: 4WD
- Drive type: Gearbox
- Drive line: Dog bone
- Differential type: Gear
- Suspension: Fully independent double wishbone
- Steering mechanism: Bell-crank
- Shock damper: Friction damper
- Shock damper material: Plastic
- Tire type: Rubber
- Tire tread: Rally block
- Body material: Polycarbonate
- Chassis material: Plastic
- Electronic: Speed Control (ESC) Included
- ESC model: TBLE-02S
- LED Light buckets: No
- LED lights: No
- Motor: 540-brushed type
- Bearings: Plastic bushing
- Adjustable camber: Fixed
- Adjustable toe angles: Front only
- Adjustable ground clearance: Yes
- Adjustable gear ratio: Yes
- Adjustable wheelbase: Yes
- Adjustable track width: Fixed
- Adjustable shock angle: Fixed
- Special feature 1: Separate parts recreate door mirrors.
- Special feature 2: 3-section frame
- Special feature 3: Rally Block tires are included. Width/Diameter: 27/69mm
- Special feature 4: Features a lightweight, sturdy monocoque composed of
left/right halves which incorporate the gearboxes. - Special feature 5: Torque-tuned motor is included.
- Special feature 6: The car model features the M wheelbase: 225mm. Change
to S (210mm) or L (239mm) wheelbase by switching the spacer used in the center
section, and fitting Items 54654-54655 MF-01XPropeller Shafts. - Special feature 7: Compatible with existing M-chassis bodies, plus Item
54643 MF-01X Ball Bearing Set. - Requires A: 2-channel radio gear
- Requires B: 7.2 battery & charger
- Requires C: Polycarbonate paint
