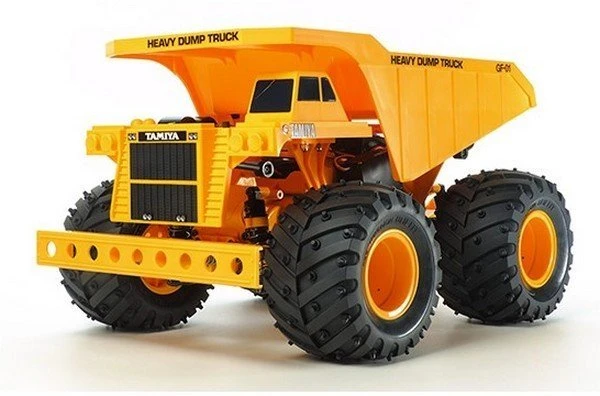

58622 Tamiya GF-01 | 1/24 Heavy Dump Truck

• Tamiya 58622 Heavy Dump Track GF-01 chassis
• Reproduce the “heavy dump” active in large-scale construction site realistic!

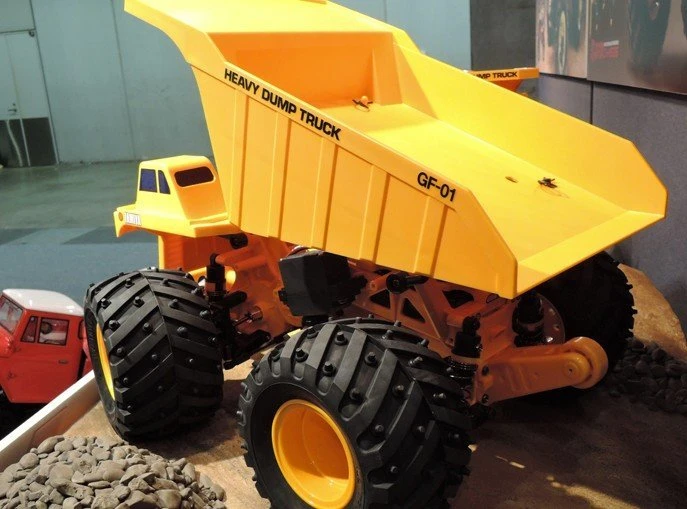

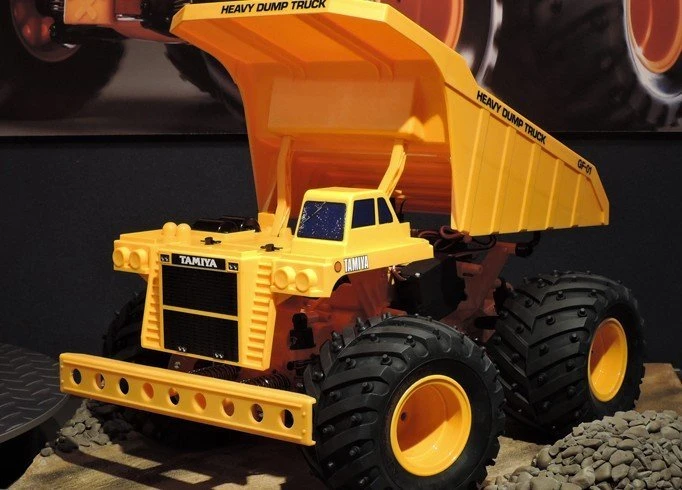

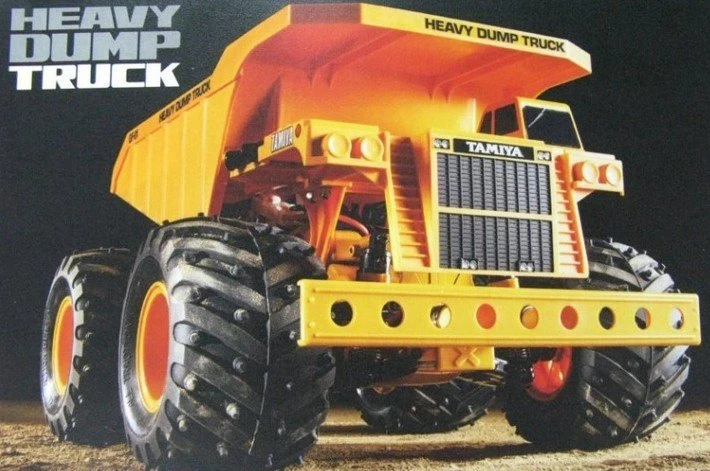

• Big tire fitted, off-road appeal of 4 x4 unique. Anywhere you run around in comical cheerfully. An ultra-large vehicles working in large-scale construction sites such as mines and dam construction was modeled “heavy dump”. A distinctive style in the dynamic that apart from a dump truck traveling on the general road, high strength sense of scale were also reproduced in sufficient ABS resin body. Cab (cab) and the vessel (the bed) is that it is also possible to display in the state as separate parts, which raised the vessel is also a feature of the dump. The chassis gather a high popularity in the comical and wild ride is adopted “GF-01 chassis.” Molding color of the chassis not only the body was also a yellow image of a heavy machinery, it will be fun to look finish. The tire equipped with a large-diameter monster spike tires, style also ran also wild, it is attractive is jammed model of hobby RC unique.
• Length: about 350 mm
• overall width: about 270 mm
• Height: about 210mm four-wheel drive GF-01 chassis, equipped with a big tire in

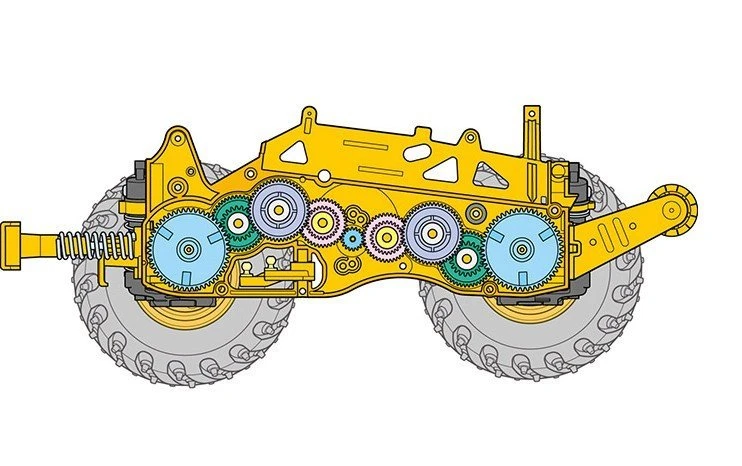

• Square configuration equipped with a motor in the middle of the lightly strength sufficient monocoque frame, front and rear in gear GF-01 chassis that adopted the gear drive 4WD for transmitting power to the wheels. Nearly equal to “square” configuration is the ratio of the wheel base and tread also features. The gear case of the frame one-piece, closed to shut out the sand and pebbles. You create a smooth cornering and a built-in differential gear. Suspension double wishbone 4-wheel independent equipped with friction damper. Sets the steering servo to the chassis left side, it demonstrates the handling characteristics without the habit by isometric 2-piece tie rod.
• The image is a prototype.

Specifications:

• Scale: 1/24

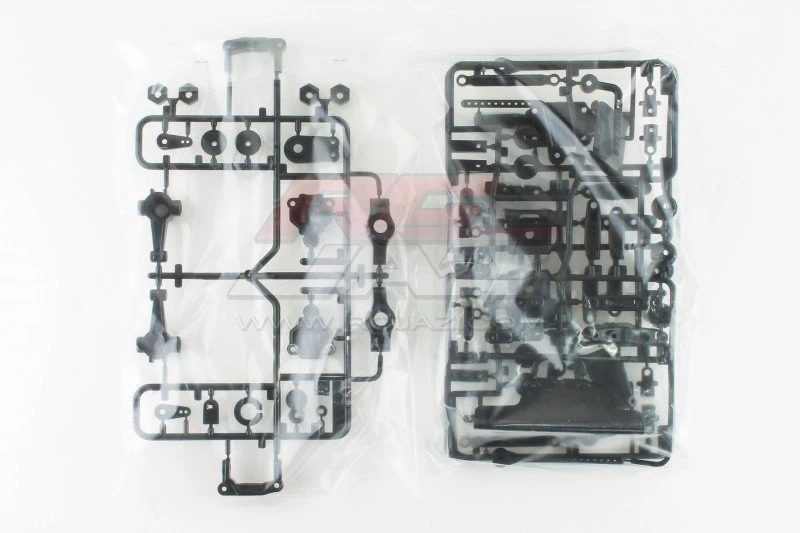

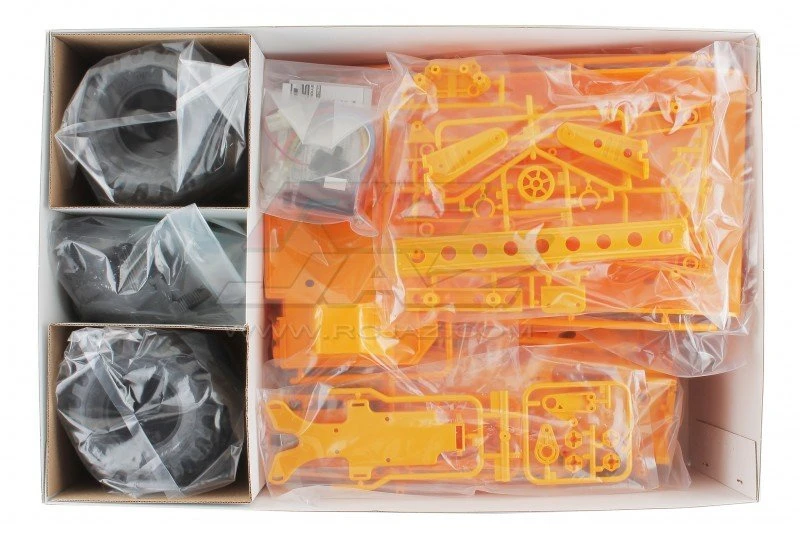

• Construction type: Assembly kit
• Terrain use: Multi-Purpose
• Drive-train 4WD
• Drive type: Gearbox
• Drive line: Dog bone
• Differential type: Gear
• Suspension: Fully independent double wishbone
• Steering mechanism: Bell-crank
• Shock damper: Friction damper
• Shock damper material: Plastic
• Tire type: Rubber
• Tire tread: Lug/pin-spike
• Body material: ABS Plastic
• Chassis material: Plastic
• Electronic Speed Control (ESC): Included
• ESC model: TBLE-02S
• LED Light buckets: No
• LED lights: No
• Motor: 540-brushed type
• Bearings: Plastic bushing
• Adjustable camber: Fixed
• Adjustable toe angles: Front only
• Adjustable ground clearance: Fixed
• Adjustable gear ratio: Fixed
• Adjustable wheelbase: Fixed
• Adjustable track width: Fixed
• Adjustable shock angle: Fixed
• Special feature 1: Length: 350mm, Width: 270mm, Height: 210mm
• Special feature 2: The realistic injection-molded resin body features separate cab and rear bed parts.

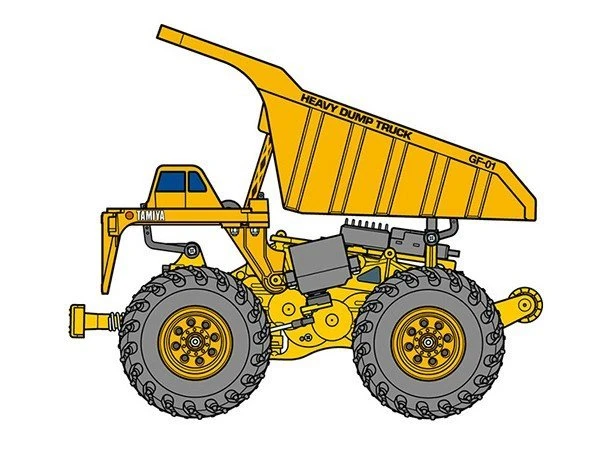

• Special feature 3: Alternate rear bed between flat and raised positions by changing the position of the 2 stays and snap pins in the body mounts. Note: It is not advised to put objects in the rear bed, or drive the model with it elevated.

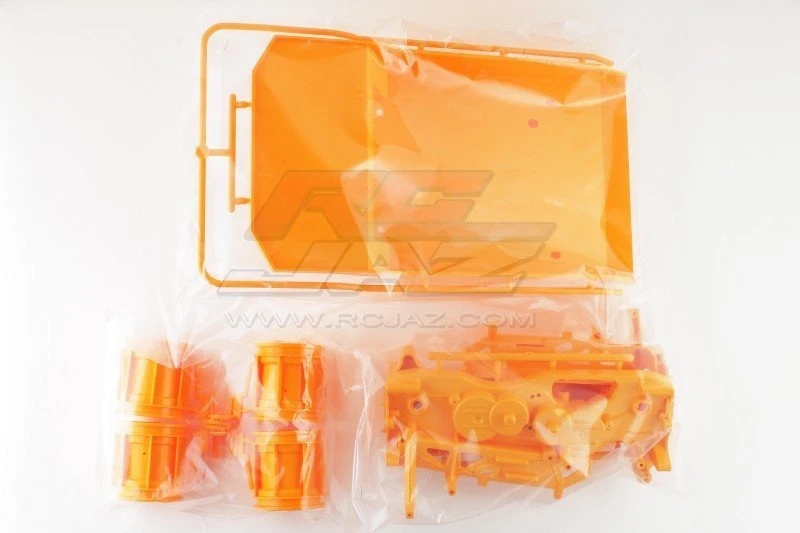

• Special feature 4: Chassis and deep rim wheel parts are molded in yellow for an authentic appearance.
• Special feature 5: The 4WD GF-01 chassis provides an excellent feeling of big scale, and uses front and rear differentials in sealed gearboxes integrated in the frame.
• Special feature 6: 4-wheel double wishbone suspension uses friction dampers.
• Special feature 7: The &39;square&39; setup chassis uses similar tread (194mm) and wheelbase (174mm) lengths.
• Special feature 8: Torque-tuned motor is included.
• Special feature 9: Comes with 115mm-diameter tires.
• Requires A: 2-channel radio gear
• Requires B: 7.2 battery & charger
