Tamiya 58630-60A – 1/10 Plasma Edge II (TT-02B)(w/o ESC)

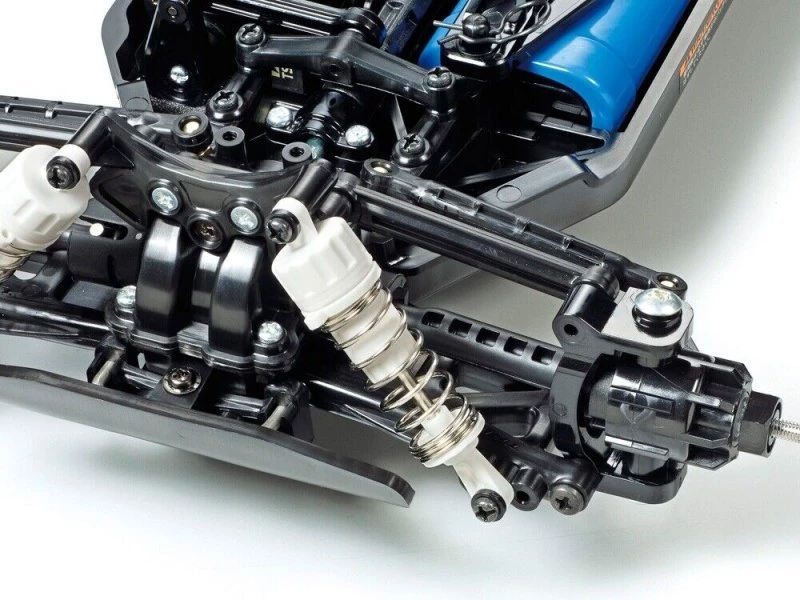

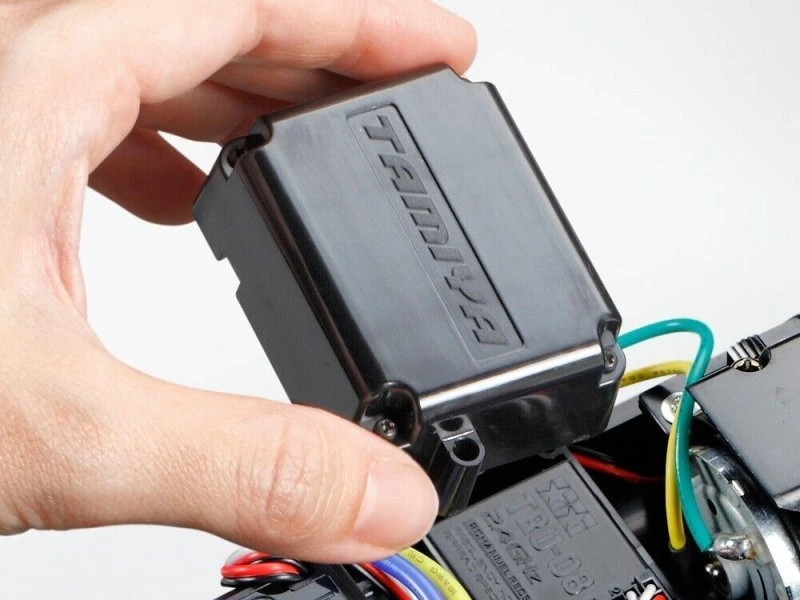

This is an updated version of the classic Plasma Edge buggy body. It features new stickers and a tweaked body design. It is mounted on the easy-to-build and maintenance TT-02B chassis. The TT-02B uses the TT-02 as its base, adding longer suspension arms, CVA shock units, and buggy bumpers to give it great off-road performance. Of course, it retains the TT-02&39;s excellent drivability and ease of assembly and maintenance, while motor cooling ducts and receiver case add to the model&39;s durability.
Specifications:
- Scale: 1/10
- Construction type: Assembly kit
- Terrain use: Off-Road
- Drive-train: 4WD
- Drive type: Gearbox
- Drive line Dog: bone
- Differential type: Gear
- Suspension: Fully independent double wishbone
- Steering mechanism: Bell-crank
- Shock damper: Oil-filled damper
- Shock damper material: Plastic
- Tire type: Rubber
- Tire tread: Pin spike
- Body material: Polycarbonate
- Chassis material: Plastic
- Electronic Speed Control (ESC): NOT Included
- ESC model: TBLE-02S
- LED Light buckets: No
- LED lights: No
- Motor: 540-brushed type
- Bearings: Plastic bushing
- Adjustable camber: Fixed
- Adjustable toe angles: Front only
- Adjustable ground clearance: Yes
- Adjustable gear ratio: Yes
- Adjustable wheelbase: Fixed
- Adjustable track width: Fixed
- Adjustable shock angle: Fixed
- Special feature 1: Torque-tuned motor is included!
- Special feature 2: The TT-02B Chassis is the buggy evolution of Tamiya&39;s popular 4WD entry level unit, the TT-02 Chassis.
- Special feature 3: Bathtub-type frame has longitudinal battery and R/C mechanism placed flat for low center of gravity.
- Special feature 4: 4-wheel double wishbone suspension features long arms and white color CVA shock units, and is combined with high-grip square spike tires to give excellent traction.
- Special feature 5: Features fluorescent yellow star-dish wheels.
- Special feature 6: Includes stickers to decorate the body, plus masking stickers for use when painting.

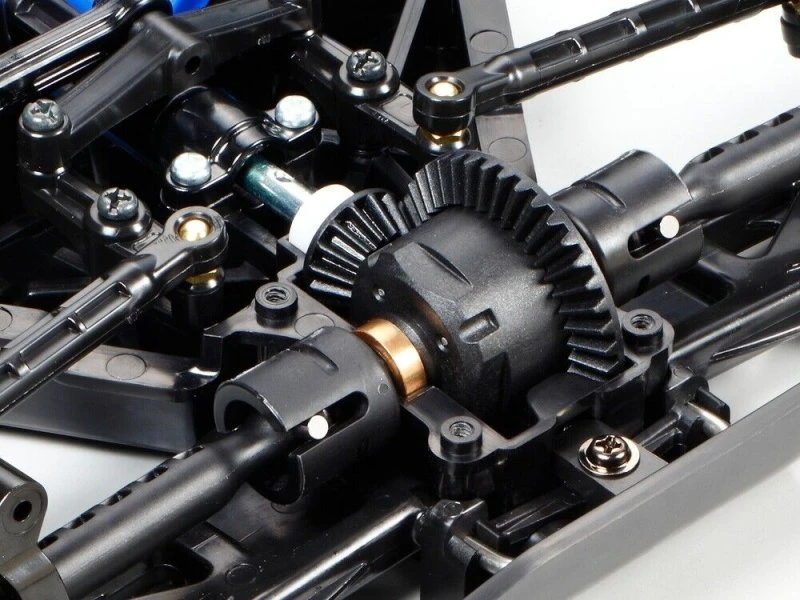

- Special feature 7: Front and rear gearboxes have differentials to ensure smooth cornering.
- Requires A: 2-channel radio gear
- Requires B: 7.2 battery,charger and ESC
- Requires C: Polycarbonate paint
