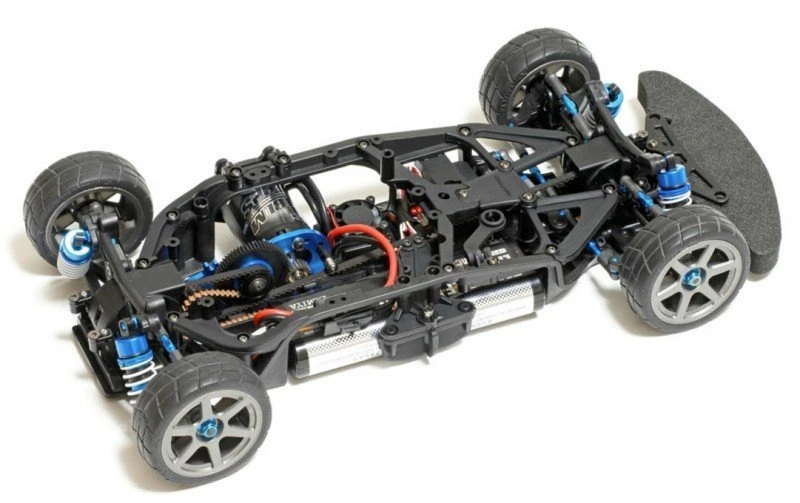

58636 Tamiya – 1/10 TA07 Pro Chassis Kit

This 1/10 4WD Radio Control touring car chassis assembly kit is endowed with
a design influenced by data from the TRF (Tamiya Racing Factory) team&8217;s
top level racing activities.

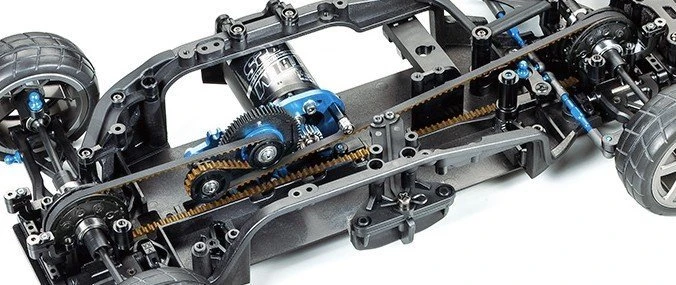

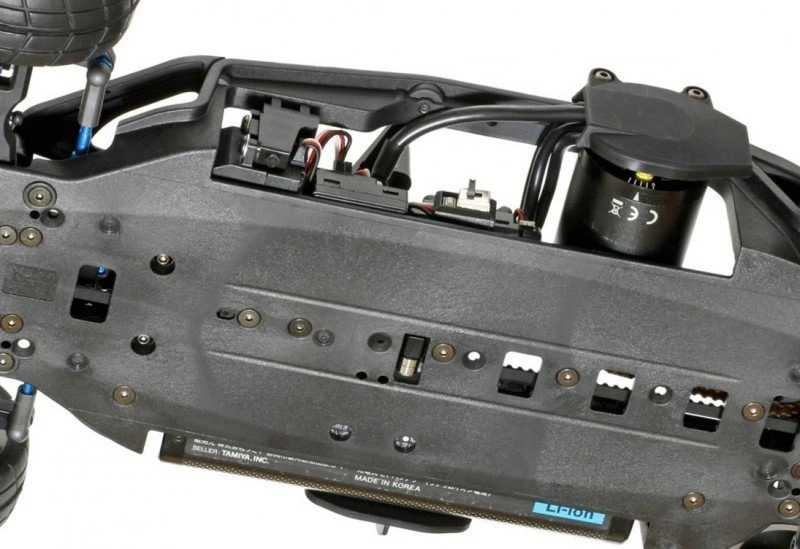

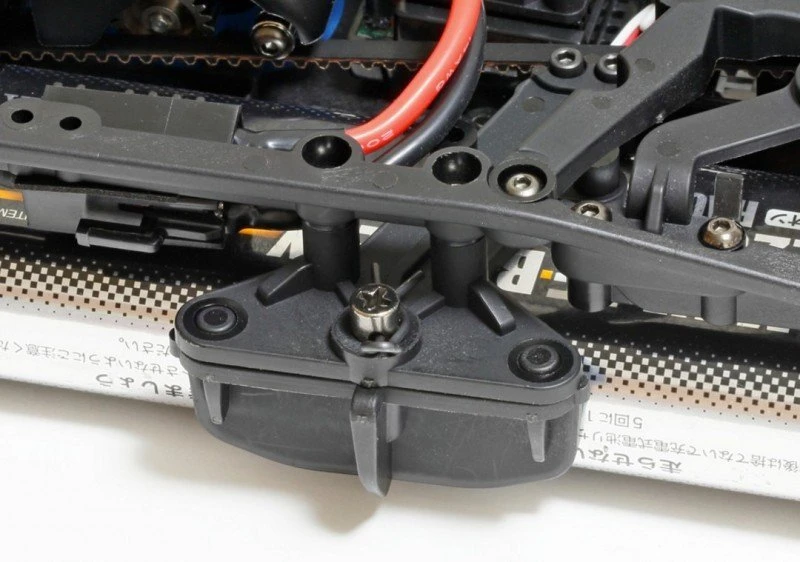

The TA07 Pro Chassis Kit is based around a composite structure that consists
of a narrow lower deck and an upper frame. The part design layout provides the
chassis optimal torsional rigidity which can be further adjusted by removing

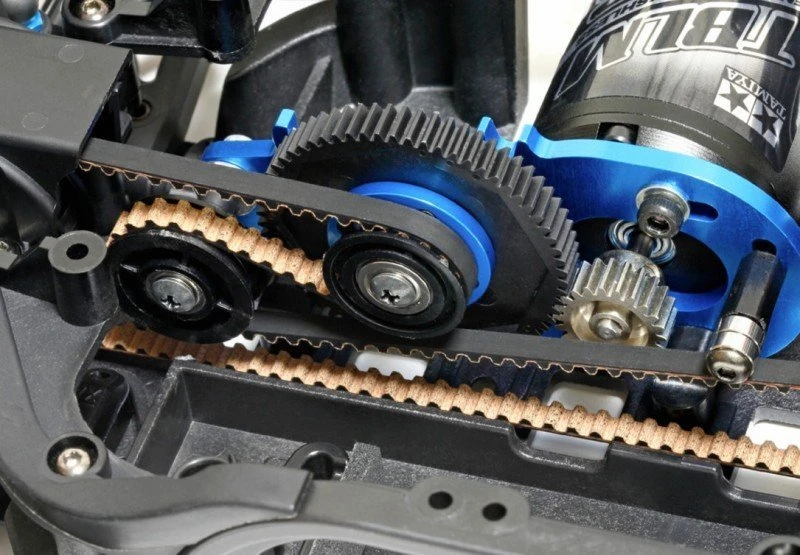

the frame center section. The highly efficient single belt drivetrain offers
3 motor position locations, each with its own performance characteristics suited

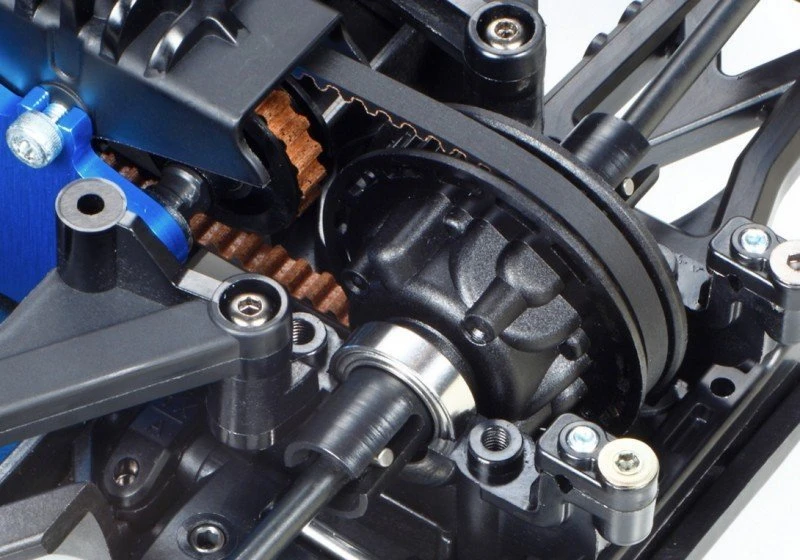

to different tracks and setups. Proven TRF419 design suspension, gear differential

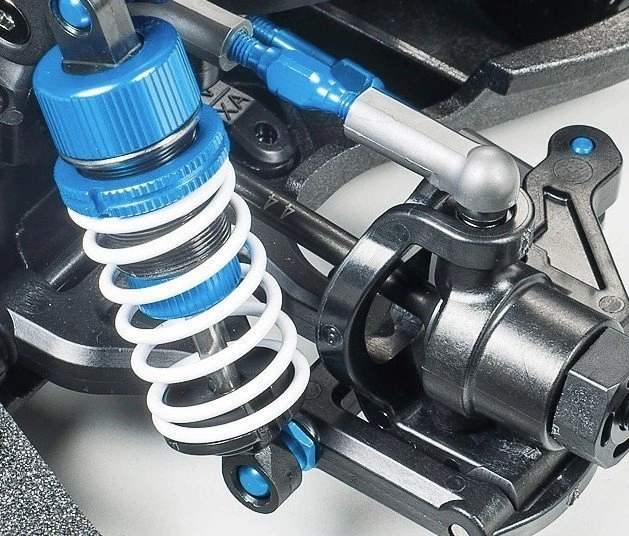

units and steering components are joined by proven TRF aluminum shock dampers
and universal shafts to make this chassis a hi-spec racer!

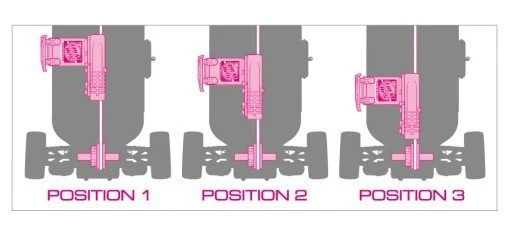

A choice of three motor positions is on offer to suit driving and circuit style.
No belt change is necessary when switching between the positions, and the chassis
allows any necessary adjustments to belt tension.

• Length: 370mm
• Width: 187mm
• Wheelbase: 257mm
• Composite Resin Lower Deck & Upper Frame
• Aluminum Motor Mount
• Front & Rear Gear Differentials
• Aluminum Turnbuckle Shafts
• Single Belt-Driven 4WD
• Full Ball Bearings
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• TRF Special Dampers
• TRF419 design Uprights
• TRF419 design Suspension Arms
• TRF419 design Gear Differential Units
• Universal Drive Shafts

Required Items (Sold Separately)

• Body
• Brushless Motor
• Tires
• 2-channel R/C system with ESC
• Batteries for transmitter
• Battery Pack and Charger
