58684-60A Tamiya – 1/10 Toyota GR Yaris (GT-Four) (M05) (w/o ESC)

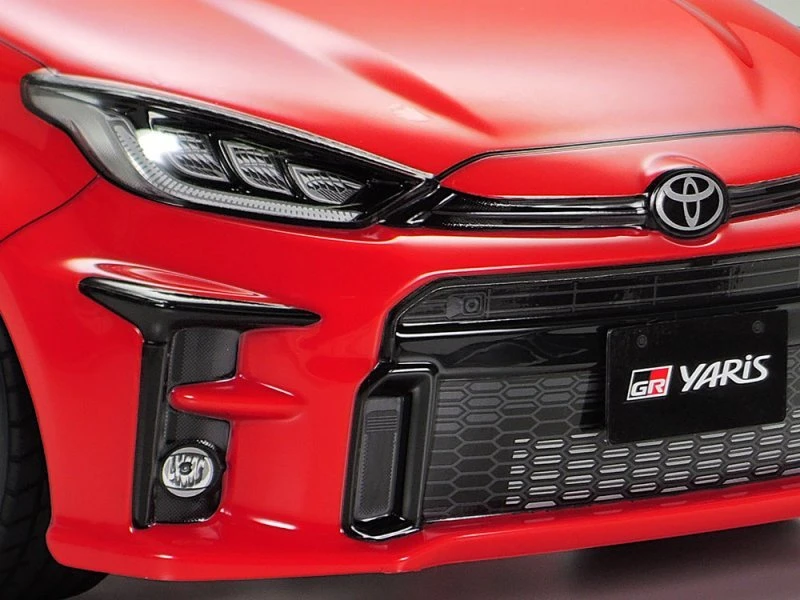

Announced in 2020, this 4WD sports car boasts a compact three-door hatchback body. It features different exciting grades: the high power RZ and the high performance RZ, the RC competition spec, and the FF layout RS model. All are paired with the GR-FOUR sports 4WD system and a 272hp 1.6-liter 3-cylinder engine. This R/C model assembly kit captures such features the prominent radiator grille, bulging rear fenders and roof rear spoiler, and recreates the powerful body in polycarbonate. The front wheel drive M-05 chassis facilitates a lively drive, and uses black 11-spoke wheels with tires carved with realistic tread patterns.

M-05 Chassis: Low Center of Gravity, High Performance!

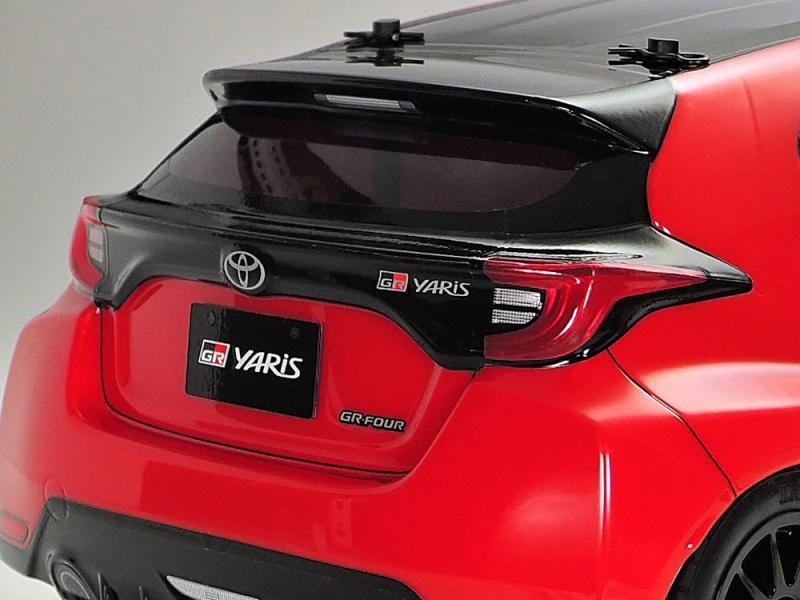

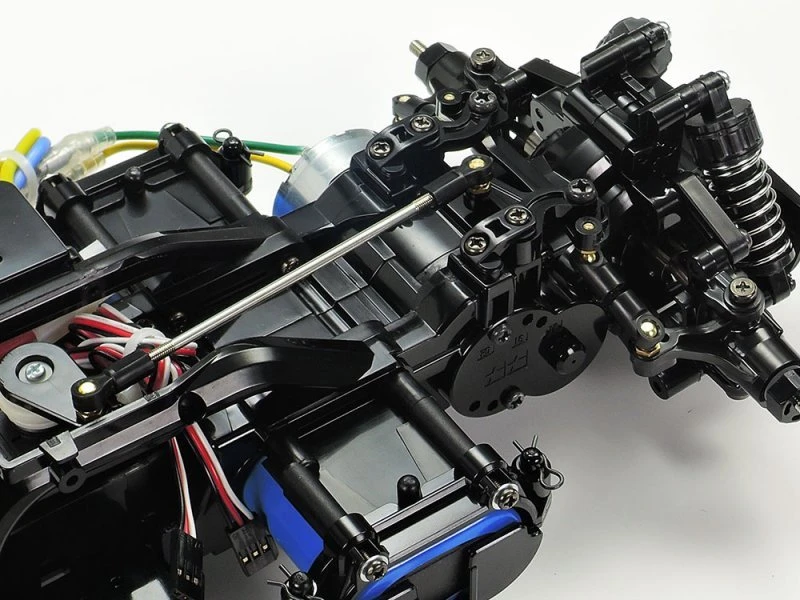

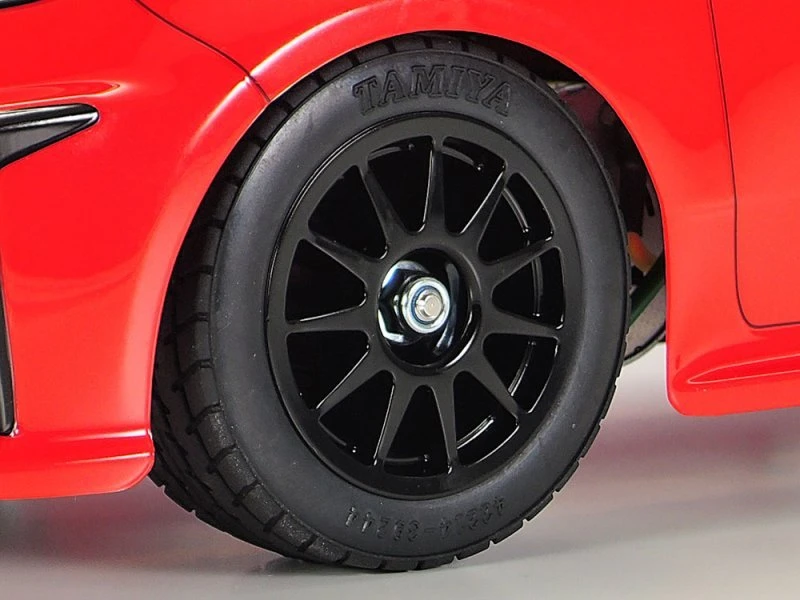

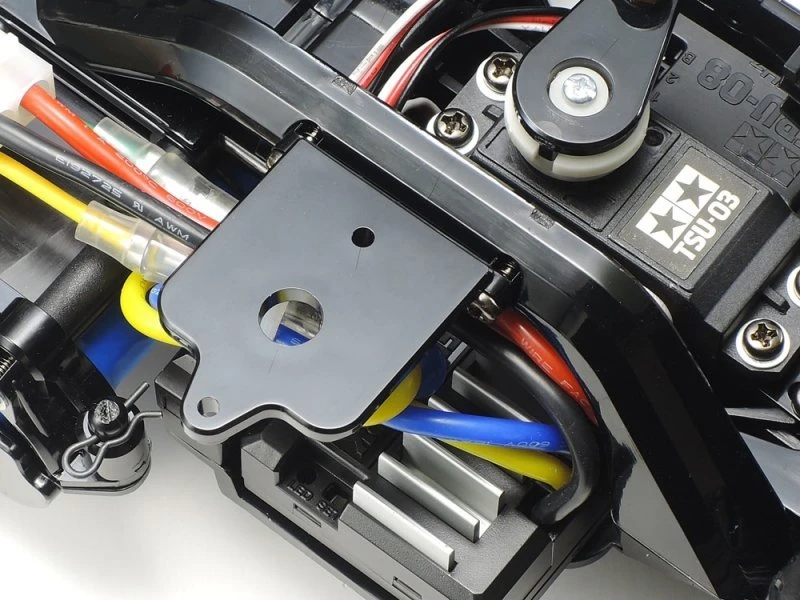

The front wheel drive M-05 chassis features a lightweight, narrow, durable, and easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provide stable high-speed cornering. 11-spoke wheels are molded in black and have tires with realistic tread patterns and inner sponge. In this kit, the chassis is setup with the 239mm L wheelbase.

Specifications

• Length: 372mm, Width: 168mm, Height: 137mm

• Wheelbase: 239mm

• Tread (Front & Rear): 138mm

• Tire Width/Diameter (Front & Rear): 25/59mm

• Monocoque Frame

• Front midship motor and front wheel drive system

• 3-Bevel Differential Gear

• 3-Piece Steering Tie-Rod

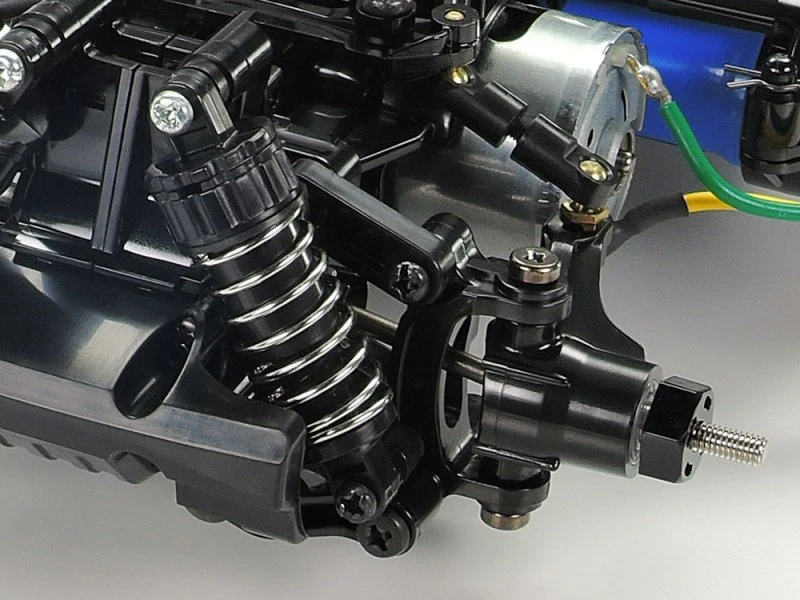

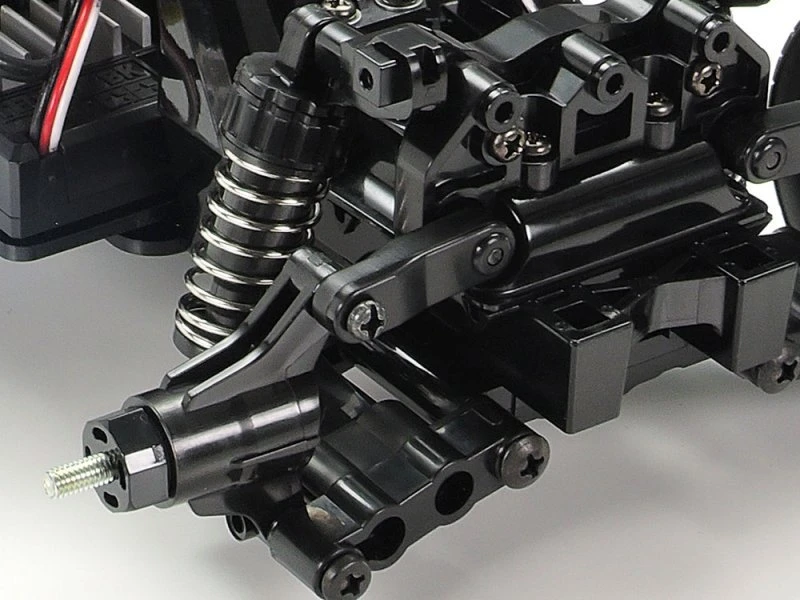

• 4-Wheel Double Wishbone Suspension

• Front & Rear Friction Dampers

• Gear Ratio = 5.8:1

• Type 540 Motor

• Requires an Electronic Speed Controller (sold separately)

Separately Required Items:

• 2-channel R/C system w/ESC

• R6/AA/UM3 batteries for transmitter

• Battery pack & charger
