58685 Tamiya – 1/10 Comical Hotshot (GF-01CB)

This R/C model assembly kit creates a 4WD buggy, with a lightweight and durable stylized polycarbonate version of the legendary Hot Shot body. The reimagined comical body comes pre-painted in red and all that is needed is the application of the included stickers, and voila! A new, Comical Hot Shot which pays homage to Tamiya’s classic 1985 Hot Shot kit! The GF-01CB chassis in which the body sits on top of is a gear-driven unit that provides a thrilling drive and super wheelies when you jam on the throttle.

GF-01: Seriously Stable 4WD
This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Sealed gearboxes protect from dust and debris and are integrated into the frame, while the built-in differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension with CVA oil dampers and a two-piece tie rod steering setup with the servo on the left for excellent response. Two-piece wheels are joined by ST block bubble tires, and WR-02 or GF-01 Hop-Up Option parts are available to hop-up your model.

• 1/10 scale R/C model assembly kit.

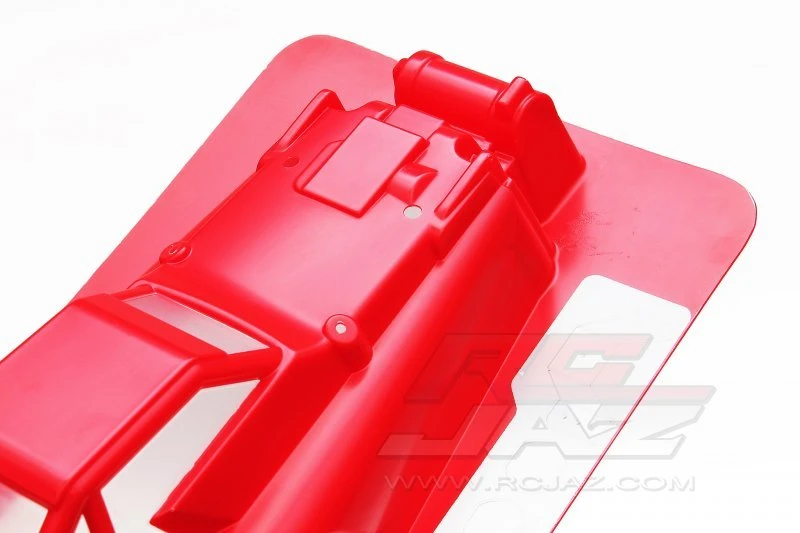

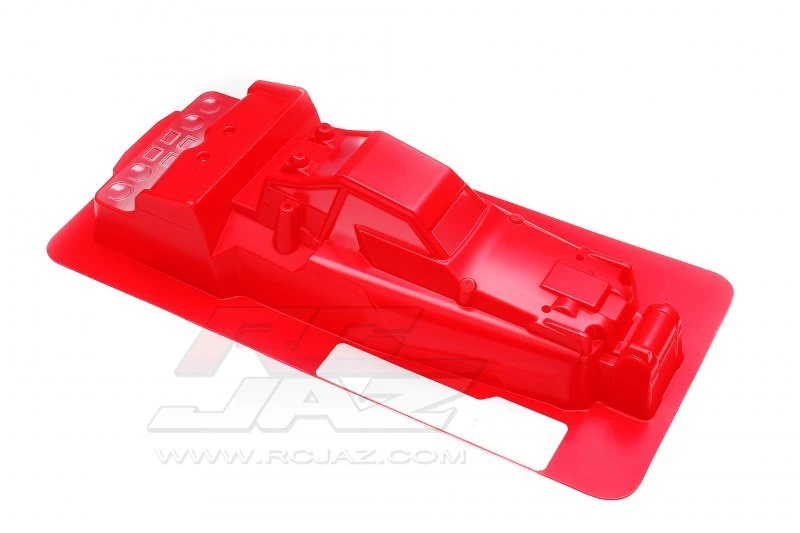

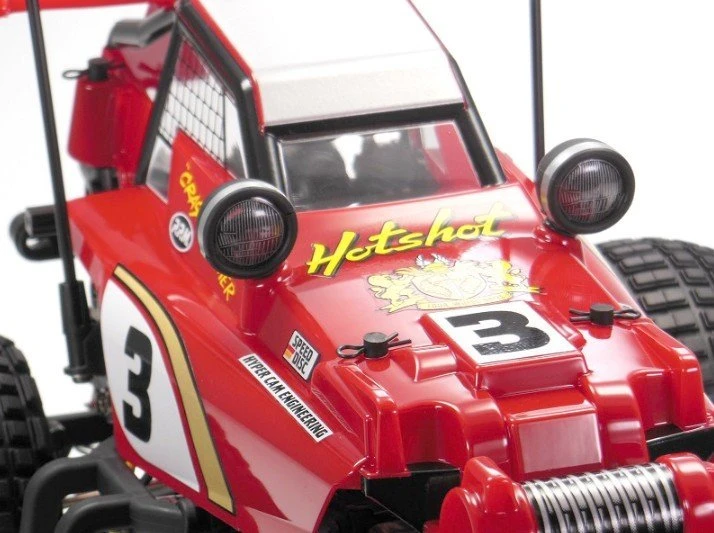

• Includes a lightweight and durable stylized polycarbonate version of the Hotshot body and wing, developed specially for this model. The body is pre-painted in PS-2 Red. Stickers based upon the 2007 re-issue Hotshot are included for decoration.

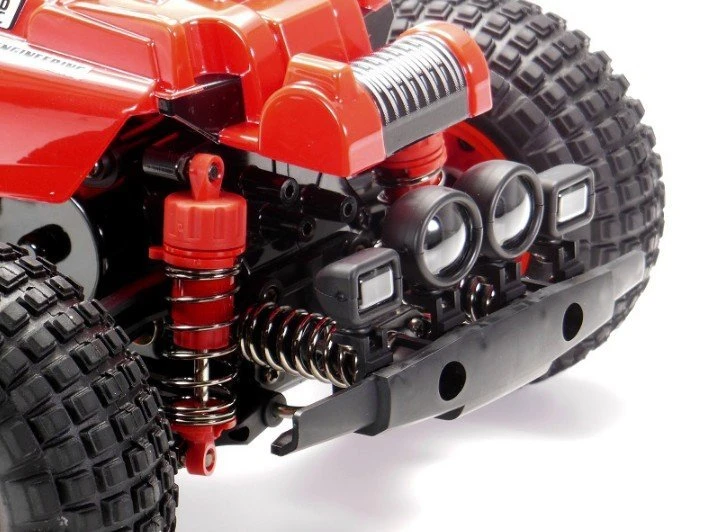

• Stylish bumper and muffler parts are included, as well as dedicated side guard components.

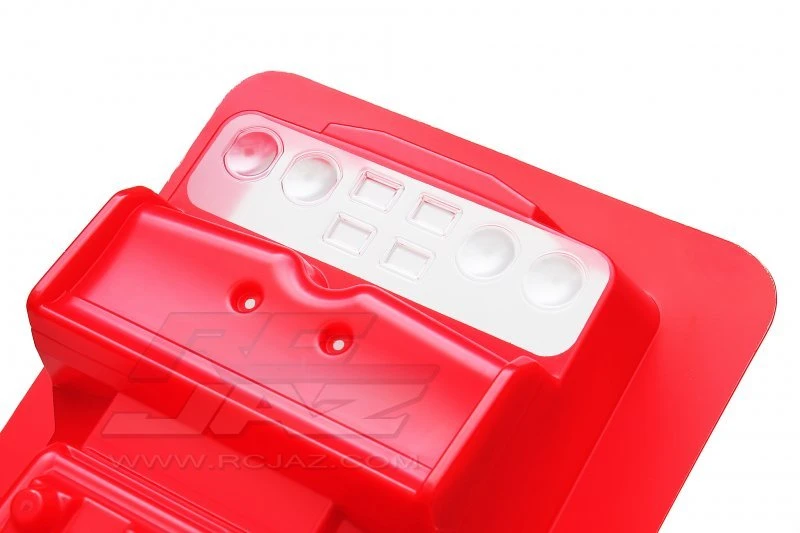

• Separately sold 5mm LEDs can be used to light up the model. Light pods are included.
• ST block bubble tires have stepped block patterns (width/diameter: front 45/99mm, rear 55/99mm).
• The GF-01CB chassis offers efficient gear-driven 4-wheel drive.
• ABS two-part wheels have red and white spoke parts.
• CVA Super Mini oil dampers molded in red ensure your ride has superior cushioning.
• A rear wheelie bar lets you perform thrilling wheelies by slamming on the throttle.
• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger.
• NOTE: Must use round type stick battery pack. Square shaped batteries will not fit the battery compartment.

Specification:

• Adjustable Gear Ratio : Fixed
• Bearings : Plastic bushing
• Body Material : Polycarbonate pre-painted body
• Body Stickers : Included
• Chassis Material : ABS Plastic
• Chassis Type : GF-01CB
• Construction Type : Assembly Kit
• Differential Type : Gear
• Drive Type : 4WD
• Electronic Speed Control (esc) : Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Motor : 540-brushed type
• Requires A : 2-channel radio, steering servo, 7.2volt battery & battery charger
• Scale : 1/10
• Shock Damper : CVA Oil Filled
• Suspension : Fully Independent Double Wishbone
• Terrain Use : Multi-Purpose
