6JA Futaba 6-Channel 2.4GHz S-FHSS Air/R2006GS (Airplane)

Blazing Speed. Red-hot Value

In S-FHSS mode, the 6J’s frame rate is just 6.8ms, a response speed unmatched
by any other 6-channel flight system. But the 6J isn’t just about speed;
it’s also one of the best values you’ll find anywhere.

It’s an easy and natural step up from a 4-channel system. And if you
already own a 6-channel, it’s a solid investment with a range of high-end
features that goes far beyond what you’d expect. Start with 15-model memory.
Throttle and pitch curves for airplanes as well as helis. Electronic swash ring
for helis, as well as four swashplate options.

And with the blazing speed, absolute affordability and unequaled value, the
6J also offers the rock-solid security and dependability of Futaba FHSS technology.

The R2006GS auto-adapts to the transmission mode selected, whether it’s
FHSS or high-speed S-FHSS mode. And since it operates on a wide range of voltage,
you don’t need a regulator even if you use a 2S, 7.4V LiPo pack as a power
source.

Here are just a few of the features that make the 6J one of the best flight
system values around!

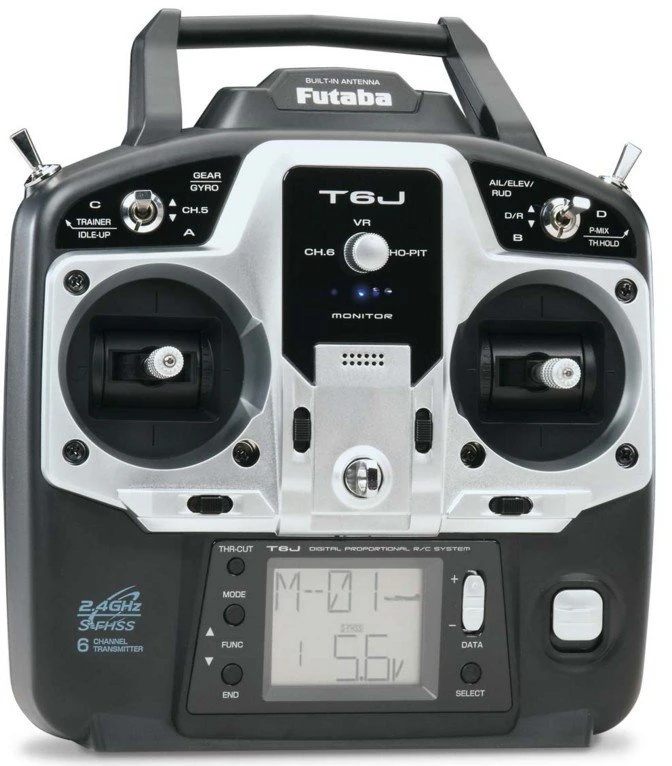

• The 6J faceplate looks clean and uncrowded, yet puts sticks, the programming
  keys and the rotary knob within easy reach. A built-in antenna prevents breakage
  and damage.

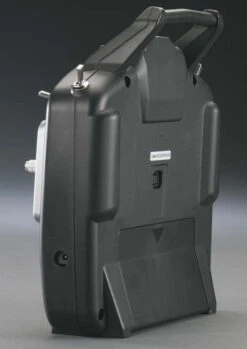

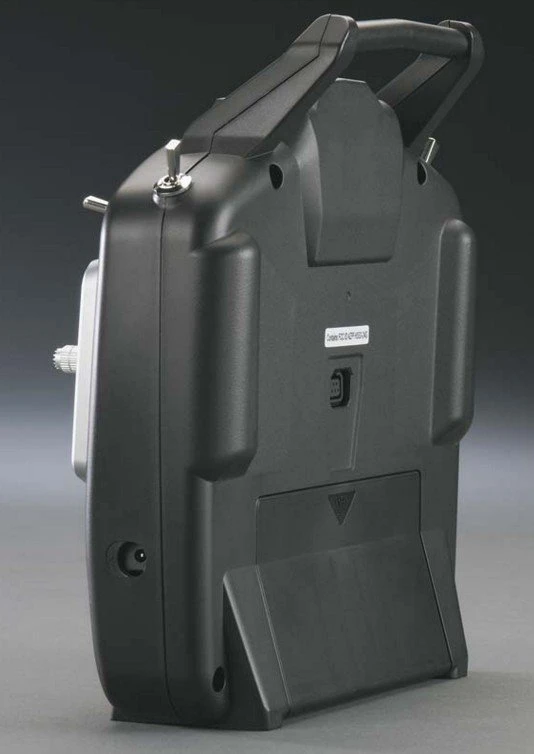

• Angled for a better, easier grip, and balanced for easy neck strap use,
  the 6J’s case also features a broad, flat base that makes it stand solidly
  when you set it down. Other features include a charging jack on the side and
  a square micro-port for a trainer cord on the backplate.

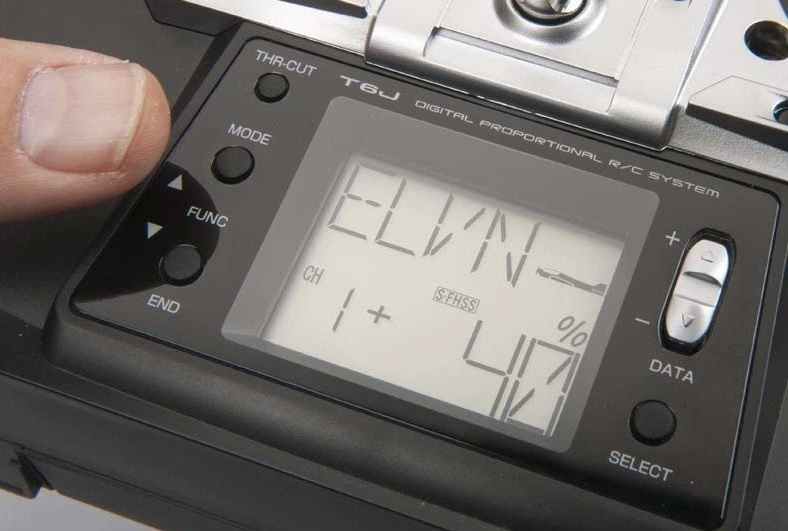

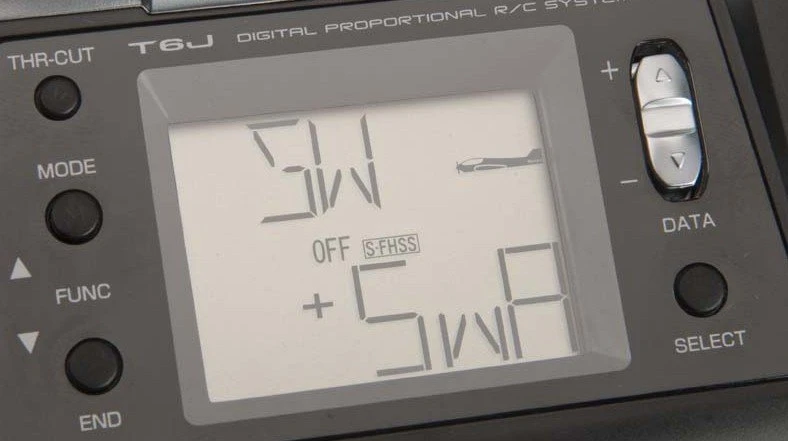

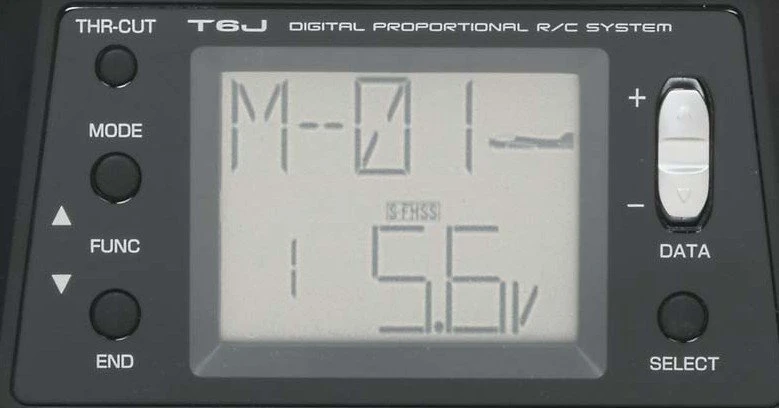

• A big 40 x 30 LCD offers more information and easier viewing at a glance.
  You can see model name, number and type, voltage, modulation (and more) on
  the home screen; push SELECT and you see the timer!
• If you scroll by the function you want, no problem; you can navigate through
  menus forward and backward with the same ease.
• Most of the 6J’s mixing functions can be assigned to the switch you
  prefer, so you can adjust the control setup to your style of flying.

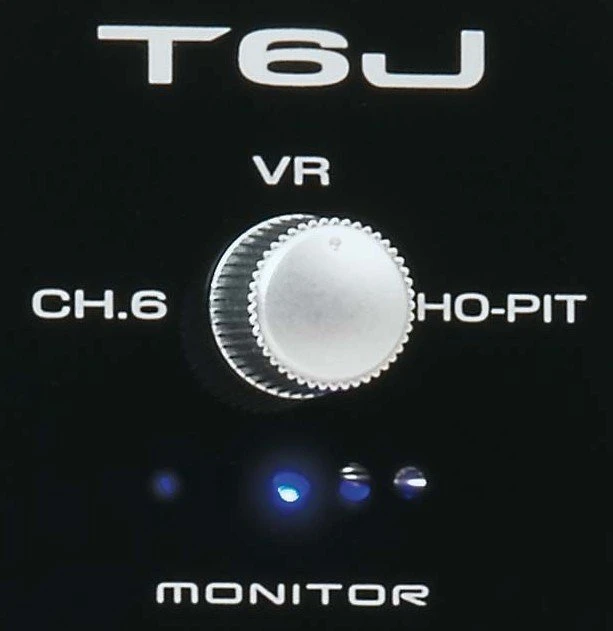

• The 6J’s rotary knob can be used for a fully proportional 6th channel,
  fine-tuning hover-pitch or scale flaps. It also leaves room for an added programmable
  mix you can activate with the flip of the switch.

System features:

• 15-model memory
• 4-character model naming
• Simple 1-lever/3-button programming
• Data reset
• Airplane & heli software
• FHSS/S-FHSS modes
• Mode 1-4 selectable
• 127-segment, 40 x 40 LCD
• Digital trims/trim memory
• Endpoint adjustment (EPA), sub-trims & servo reversing
• Dual rates & exponential (ail/ele/rud)
• Fail-safe (all channels; in S-FHSS mode only)
• Throttle cut
• Trainer system (cord required)
• Throttle position, mix & low battery warnings
• Up/down & model timer
• Range check mode
• R2006GS S-FHSS Receiver

Airplane Features:

• 2 programmable mixes, plus:
• (2) 5-point throttle curves
• (2) 5-point pitch curves
• Flaperon w/differential rate
• Flap trim (2 rates)
• V-tail mixing
• Elevon mixing

Requirements:

• 4 “AA” cells
• Servos (FUTK6000 only)

Transmitter Specifications:

• Type: 2-stick, 6-channel, FHSS/S-FHSS selectable
• Current Drain: 170mA

Receiver Specifications:

• R2006GS 2.4GHz S-FHSS 6-Channel Receiver
• Type: Full-range flight receiver
• Modes: FHSS or S-FHSS
• Features: Easy-Link™ binding, high-voltage operation, frequency-hopping,
  spread-spectrum design & Dual Antenna Diversity
• Voltage Input: 4.8V-7.4V
• Compatible Batteries: NiCd, NiMH, LiPo, LiIon & LiFe
• Dimensions: 1-11/16 x 15/16 x 516 in (43 x 24 x 7.9 mm)
• Weight: 0.29 oz (8.3 g)
• Current Drain: 80mA (@ no signal)
• Stock #: FUTL7606
