6VA Futaba 6-Channel FM 40MHz/ R116FB / 4xS3001

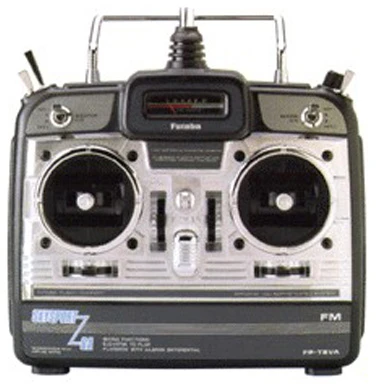

This is the Futaba 6VA 6-Channel Areoplane Stick Radio with the R116FB Receiver
and S3001 Servo.

INCLUDES:

• 6VA 6-Channel Transmitter
• R116FB Receiver
• Four S3001 Servo
• servo mounting
• Neckstrap, frequency flag set.

SPECS:

Transmitter:

• Transmitter FP-T6VA
• Operating system: Two-stick, 6 channels, w/airplane function
• Transmitting frequency: 35, 40 or 60MHz band
• Modulation: FM (Frequency Modulation)
• Power requirement: 9.6V Nicd battery(NT-8iB)
• Current drain: 180mA

Receiver:

• Receiver FP-R116FB
• Receiving frequency: 35, 40 or 60MHz band
• Intermediate frequency: 455kHz
• Power requirement: 4.8V or 6V Nicd battery (shared with servos)
• Current drain: 22mA
• Size: 33.4X50.4X20.5mm
• Weight: 30g/1.06oz

Servo:

• Control system: Pulse width control
• Operating angle: One side 45 degree min. (including trim)
• Power requirement: 4.8V or 6V Nicd battery (shared with receiver)
• Current drain: 8mA (at idle)
• Output torque: 3kg-cm / 42oz-in
• Operating speed: 0.22 sec/60 degree
• Size: 40.4×19.8x36mm
• Weight: 45.1g / 1.59oz
