7CA Futaba 7-Channel (M1) 2.4GHz/ R617FS

The 7C sits squarely in the middle ground in computer systems. It’s a system that
offers much of the 9C’s set-up versatility matched to 4-channel ease of use. Like
all other computer systems on this page, it offers Dial n’ Key simplicity for
programming, and the 2.4GHz FASST system for an unparalleled RF link.

FEATURES:

• Available with 4 S3152 digital high-torque servos (FUTK7000/7001); 4 S3004
  ball bearing servos (FUTK7002); or 4 S3001 ball bearing servos (FUTK7003)
• Dial ‘n KeyTM programming
• Airplane software
• Assignable switches/functions
• Up/down timer
• Mode 1-4 selectable (modes 3 and 4 available via transmitter software)
• Large 72 x 32 LCD screen with adjustable contrast
• 10-model memory
• 6-character model naming
• Digital trims, trim memory, EPA, subtrims and servo reversing (all channels)
• Dual/Triple rates* (aileron/elevator/rudder)
• Exponential (aileron/elevator/rudder)
• Adjustable throttle cut
• Fail-safe
• Trainer system (cord required)
• Flap switch
• Retract switch
• Variable rate knob (channel 6)
• Airplane Advanced Menu:
• Ailevator feature simplifies dual servo set-ups on elevators
• 3 programmable mixes
• Flaperon
• Flap trim
• Air brake
• Elevator to flap mixing
• V-tail mixing
• Elevon mixing
• Aileron to rudder mixing
• Snap roll

INCLUDES:

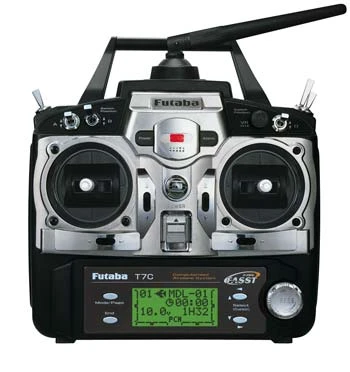

• Futaba 7C 2.4Ghz Transmitter
• NT8F600B 9.6V 600mAh Transmitter Battery
• R617FS Receiver

SPECS:

Transmitter:

• Operating system: 2-stick, 7 channels
• Power Supply: 9.6V NT8S600B Ni-Cd battery
• Current Drain: 250 mA

Receiver:

• Size: 41.6 x 27.5 x 9.2 mm
• Power Requirement: 4.8 – 6V
• Current Drain: 80mA (at no signal)
• Weight: 0.34oz (9.8g) with case, 0.25oz (7g) without case
