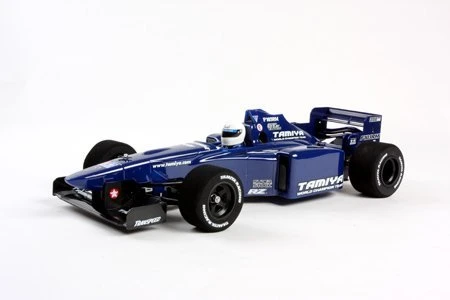

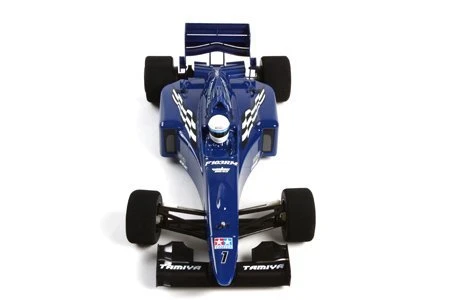

84032 Tamiya – F103RM W/L Body-RC HP Racing F103RM (w/Body) – F103

Enjoy the Direct Drive Response!

This 1/10 scale assembly R/C model features a direct drive 2WD where the motor
pinion is directly set to the spur gear for efficient power transmission. Chassis
consists of FRP lower and half-type upper deck. Front suspension features independent
kingpins with coil springs, and rear suspension features friction pads and a
coil spring damper that controls chassis roll. A type 540 motor is installed
on the height adjustable gear case with the battery mounted at the rear for
excellent balance, also improving road hugging performance. In addition, standing
steering servo mount and isometric left and right tie-rods display no reoccurring
steering habits. Simple design enables easy construction, as well as the lightweight
chassis ensures sharp running responses.

Specs & Features

• Length: 330mm(w/wings)
• Width: 200mm
• Tread: Front=170mm, Rear=160mm
• Type 540 Motor
• Drivetrain: Rear Direct Drive 2WD
• Ball Differential
• Isometric Steering Tie-Rods
• Suspension: Front=Independent Kingpins with Coil Springs, Rear=T-Bar ?Gear
  Ratio=3.7 :1
• Tire Width/Dia.: Front=30/60mm, Rear=40/64mm
• Speed Controller: Electronic Speed Controller (sold separately)
• The height of rear shaft mounting position is adjustable. Lightweight differential
  joint improves acceleration.
• Front suspension is equipped with independent uprights and coil springs.
• Friction pads and coil spring damped suspension control chassis roll.
