84191 Tamiya – 1/10 RC Team Lotus 99T Honda (F103 Chassis) [Limited Edition]

• Nakajima&39;s Ride:Team Lotus 99T Honda was developed to compete in the 1987
  F1 season and featured a computer-controlled Active Suspension system and
  a powerful Honda V6 turbo engine which was said to have an output of over
  1,000hp. With Ayrton Senna and the first Japanese F1 driver, Satoru Nakajima,
  at the helm, the 99T Honda took wins at the Monaco and Detroit GPs during
  the season. This 1/10 scale R/C assembly kit faithfully reproduces the memorable
  Lotus 99T Honda. The simple, ground-hugging body is made with polycarbonate
  and the included stickers depict the No.11 car driven by Nakajima. The direct
  drive 2WD F103 chassis is equipped with high-grip sponge tires and features
  sharp handling characteristics.

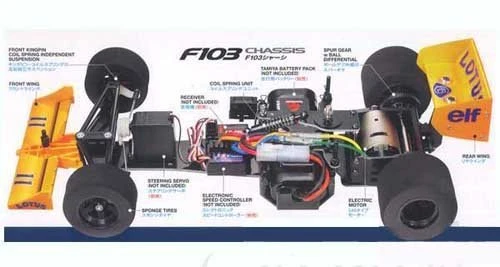

• Direct Drive 2WD F103 Chassis:The F103 chassis features a lightweight, durable
  semi-double deck frame equipped with 1.5mm thick upper and 2.5mm thick lower
  FRP plates. Front independent kingpin/coil spring and a rear rigid 3-point
  suspension setup offer superior handling performance. The highly efficient
  direct drive 2WD features the motor pinion directly connected to the spur
  gear which has a built-in ball differential. Gear case is equipped with 1060
  ball bearings and 5 different ground clearance settings are possible.

Specs and Features:

• Length: 405mm Width: 200mm Height: 107mm Weight: 660g
• Wheelbase: 260mm Tread: 170mm (Front), 155mm (Rear)
• Tire Width/Diameter: 30/59mm (Front), 45/64mm (Rear)
• FRP Semi-Double Deck Frame
• Horizontally-Mounted Motor with Rear Direct Drive 2WD
• Ball Differential
• Isometric 2-Piece Steering Tie-Rod
• Suspension: Kingpin/Coil Spring (Front), T-Bar Rigid (Rear)
• Gear Ratio=3.70:1 (when used with 17T pinion/63T spur gears)
• Type 540 Motor
• Requires electronic speed controller (sold separately)
