84203 Tamiya – 1/10 RC F104X1 Chassis Kit – F104X1

This new kit is based on the F104 chassis. It&39;s designated the F104X1 chassis and it&39;s a limited edition release. It was created to further improve traction and cornering performance. It features newly designed parts that include a roll damper as seen in many 1/10 and 1/12 scale pan cars and a new X-shaped upper deck. This limited edition kit also sports special-colored aluminum parts.

NEW Specs and Features:

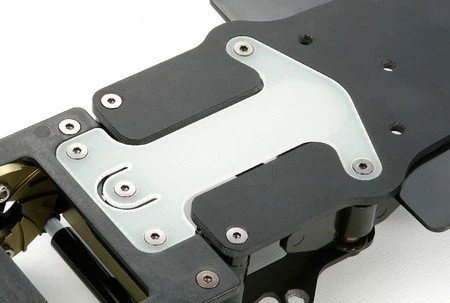

• X-Shaped FRP upper deck (new part)
• Aluminum damper mount (Titanium color) (new part)
• Rear axle shaft counter weight fitted with ball bearings (black color)
• F104 carbon reinforced gear case (new part)
• Aluminum Roll damper (Black color) (new part)

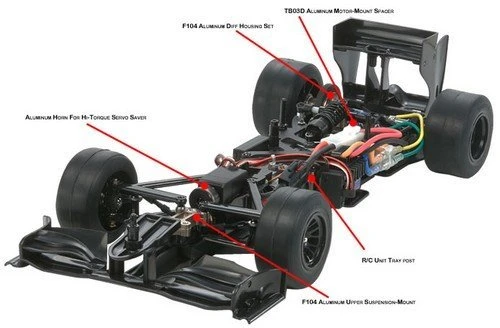

• Item 54129 TB-03D Aluminum Motor Mount (new color)
• Item 54158 F104 Aluminum Diff Housing Set (new color)
• Item 54159 Aluminum Horn for Hi-Torque Servo Saver (F104) (new color)
• Item 54202 F104 Aluminum Upper Suspension Mount (new color)
• Left Rear Wheel Hub (new color)

Specs and Features:

• Link-type front suspension
• Front kingpin coil spring independent suspension
• Direct drive solid rear axle transmission
• Ball differential
• Accommodates Tamiya foam or rubber tires
• Fits F104 specific F1 body shells (sold separately)
• Adjustable front camber
• Adjustable front and rear ride height

Other Included Option Parts:

• Item 53599 Fluorine Coated 5mm Aluminum Ball Nut
• Item 53901 TRF Special Damper (F103GT) (Black)
• Item 54154 F103 Carbon Reinforced Front Upright
• Item 54160 F104 Titanium Coated King Pin
• Item 54161 F104 Low Friction Suspension Ball Set
• Item 54222 F104 High-Traction T-Bar
• Touring Car Short Spring (Black)
• Low Friction 5mm Adjuster
• 3x35mm Aluminum Turnbuckle Shafts (Black)
• 4mm Aluminum Lock Nuts (Black)
• 4mm Aluminum Flanged Lock Nuts (Black)

New specification highlights and details:

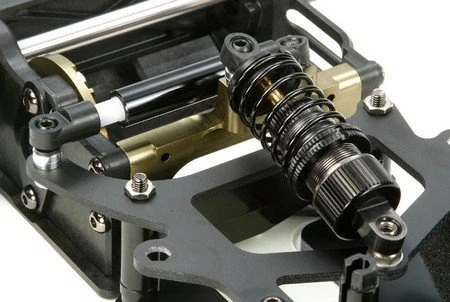

• Roll Damper & Upper Deck Pitch movement is controlled by a single TRF Damper and roll movement is controlled independently by a new Roll Damper. The Roll Damper connects to the FRP Upper Deck, which features a new X-shape for better roll characteristics, resulting in improved traction.

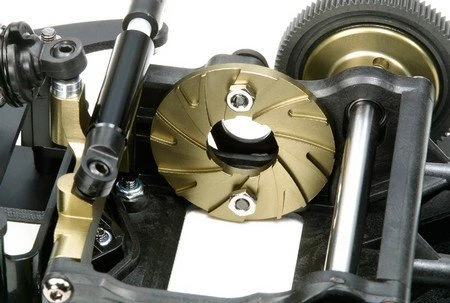

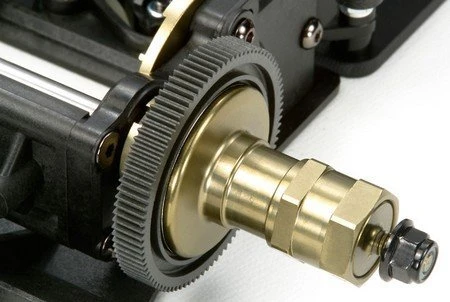

• Counterweight The rear shaft counterweight is installed between the gear case and the left rear wheel to optimize balance and improve rear wheel traction. This freewheel counterweight is equipped with a ball bearing and does not affect the cars acceleration.
• New durable gear case Compared to the standard fiberglass-reinforced parts, this Carbon Reinforced Gear case features superior strength and enhances the effect of the Roll Damper.
