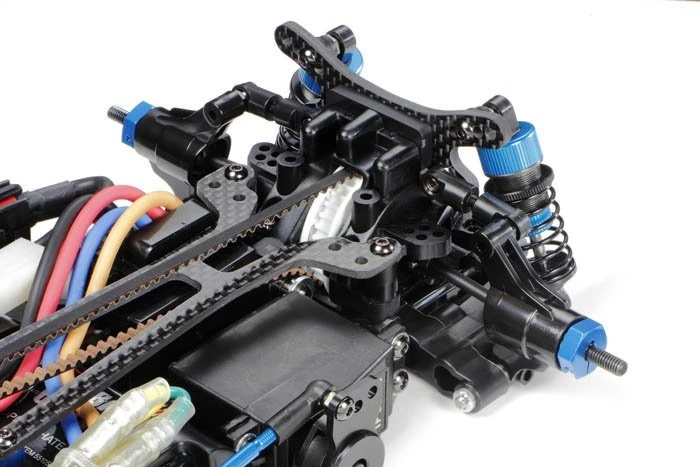

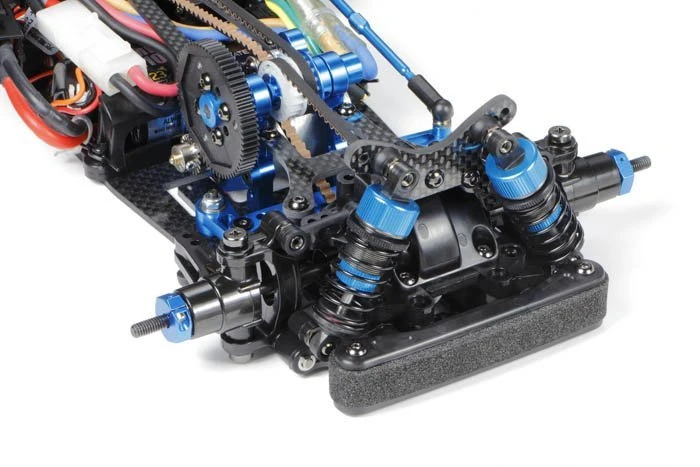

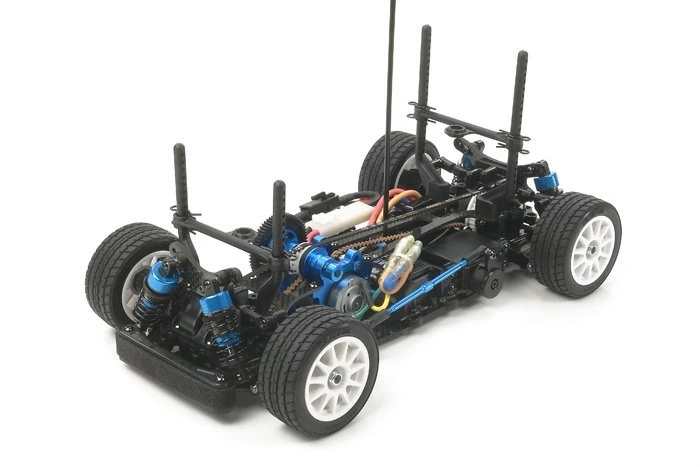

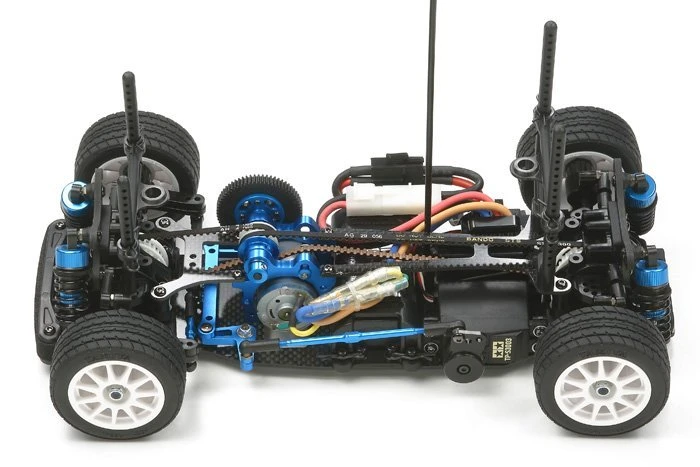

- The Tamiya TA05 chassis has been a favorite mid-level
4WD touring car platform since 2005. Tamiya has incorporated its proven components
into a new, unique 1/12 scale R/C chassis design. This chassis combines the
TA05 2-belt driven 4WD drivetrain with a 210mm wheelbase (overall chassis
length: 292mm) and has a carbon-fiber double deck layout. It also features
an aluminum motor mount which holds the front mid-ship motor and spur gear.
The TA05 gearboxes are equipped with oil-filled gear differential units (37T)
and the suspension uses M-chassis components such as suspension arms, universal
shafts, and aluminum dampers. Separate suspension mounts are used to enable
easy suspension toe-angle adjustments as seen in many of Tamiya&39;s touring
car platforms. The steering setup features durable aluminum components for
precise control. This chassis is designed for use with Item 55105 Tamiya LF
Battery LF1100-6.6V Racing Pack (M-Size) Note: Battery is not imported into
the USA. See below for substitute compatible battery packs. (TBA) The TA-05
M will be compatible with existing M-Chassis bodies that meet the 210mm wheelbase.
Specs and Features:
- M-chassis suspension arms and front uprights
- 4WD fully independent wishbone suspension
- Separate suspension mounts enable toe-angle adjustment.
- Universal drive shafts
- TA05 oil-filled gear differential units allow a range of diff settings
- Aluminum dampers are mounted to a durable 3mm thick carbon-fiber damper
stay - TA05 front one-way and direct coupling can be installed. (Sold Separately)
- Blue-anodized aluminum motor mount holds
- 380 motor
- 2-belt drivetrain layout uses an 18T center pulley
- 2.25mm thick lower and 2mm thick 2-piece upper deck.
- Battery pack and R/C unit positions are interchangeable to adjust chassis
weight distribution. - This chassis is compatible with current M-chassis bodies (short wheelbase)
such as Item 50795 1/10 R/C Mini Cooper Racing Body Parts Set. - Use Item 55105 Tamiya LF Battery LF1100-6.6V Racing Pack (M-Size) as the
power source. Note: Battery is not imported into the USA. - Substitute battery (TBA)
- Item 51237 Suzuki Swift Super 1600 Wheels (4pcs.) are included. Tires are
sold separately. - The following existing option parts are available for customization:
- Item 53833 TA05 Front One-Way Unit
- Item 53877 TA05 Front Direct Coupling
- Item 54212 M-Chassis 3x37mm Titanium Coated Suspension Shafts (2pcs.)
- Item 54267 M-05 & M-06 Aluminum Rear Upright (2.0)
ELECTRIC KITS REQUIRE:
(unless stated differently above):
- Radio: 2-Channel with servo(s)
- Battery: 6-cell flat with standard Tamiya connector
- Charger: AC/DC timed or peak for 6-cell battery
- Paint: PS for Polycarbonate/TS for ABS
- Misc. Items: Building and track equipment.
- Speed Controller: electronic speed controller
