- The Tyrrell P34, the only 6-wheeled F1 race car ever
to compete in the history of F1, caused a lot of fanfare and controversy when
it was introduced in 1976. This is a 1/10 R/C assembly kit model of the Tyrrell
P34 which raced at the 1977 Monaco GP, which had a different rear wing and

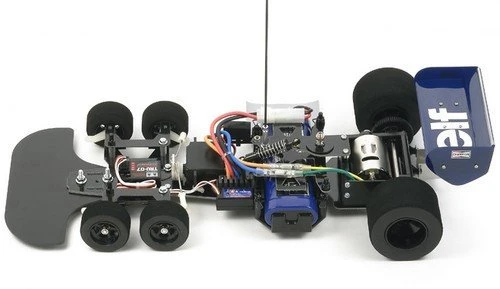

engine cover than the car which raced at the Japanese GP. - The high performance direct drive 2WD chassis has a semi-double
deck layout with 1.5mm thick upper and 2.5mm thick lower FRP plates. The kingpin
and coil spring 4-wheel independent front suspension consists of a one-piece
lower arm and left/right upper arms. One servo controls the steering of all
four front wheels. The rear suspension features a rigid T-bar suspension with
a coil spring and friction plate. The spur gear has a built-in ball diff that
provides a limited slip effect. In addition, both front and rear wheels are
equipped with high-grip sponge tires.
Specs & Features:
- 1/10 scale R/C assembly kit.
- P34 Tyrell body is made out durable polycarbonate material.
- Stickers are included to depict team drivers Jody Scheckter&39;s
No.3 and Patrick Depailler&39;s No.4 cars. - High performance direct drive 2WD chassis comes equipped
with a half double deck frame with 1.5mm thick upper and - 2.5mm thick lower FRP plates.
- Kingpin coil spring front suspension.
- Links control the front 4-wheel independent suspension.
- One servo controls all four front wheels.
- The rear suspension features a rigid T-bar suspension
with a coil spring and friction plate. - Front and rear foam tires included.
- 540-J brushed motor included
- Length: 430mm
- Width: 204mm
- Height: 108mm
- Weight: 815g
- Tread: 140mm (Front), 155mm (Rear)
- Tire Width/Diameter: 23/44mm (Front), 45/64mm (Rear)
- Gear Ratio: 4.5:1 (when used with 14T pinion and 63T
spur gears) - Requires an Electronic Speed Controller (sold separately)



![84263 Tamiya - 1/10 RC Tyrrell P34 Six Wheeler 1977 Monaco GP F103 Chassis [Limited Item] 3 84263 Tamiya - 1/10 RC Tyrrell P34 Six Wheeler 1977 Monaco GP F103 Chassis [Limited Item]](https://www.rcmasterusa.com/wp-content/uploads/2024/12/b_84263_SUB_1.webp)
![84263 Tamiya - 1/10 RC Tyrrell P34 Six Wheeler 1977 Monaco GP F103 Chassis [Limited Item] 4 84263 Tamiya - 1/10 RC Tyrrell P34 Six Wheeler 1977 Monaco GP F103 Chassis [Limited Item] - Image 2](https://www.rcmasterusa.com/wp-content/uploads/2024/12/b_84263_SUB_2.webp)
![84263 Tamiya - 1/10 RC Tyrrell P34 Six Wheeler 1977 Monaco GP F103 Chassis [Limited Item] 5 84263 Tamiya - 1/10 RC Tyrrell P34 Six Wheeler 1977 Monaco GP F103 Chassis [Limited Item] -Remote Control Model Shop b 84263 SUB 2](https://www.rcmasterusa.com/wp-content/uploads/2024/12/b_84263_SUB_2-247x134.webp)
