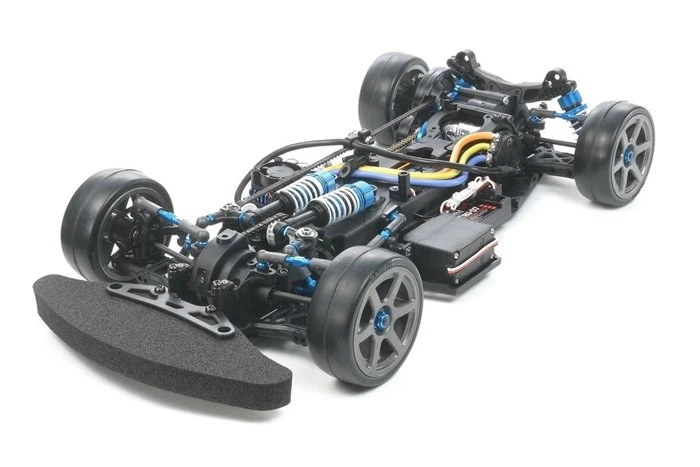

84330 Tamiya – 1/10 RC TA06 PRO Chassis Kit – W/44mm Double Cardan Joint Shafts

This is a special limited edition version of the Tamiya TA-06 Pro 4WD Touring
Car chassis kit that includes item 42216 (Double Cardan Joint Shafts 44mm). Double
Cardan Joint Shaft features two joint sections to minimize rotational vibrations
for better suspension feel. The shafts are made from high-strength steel and are
especially ideal for use with direct couplings (Spools). The overall length is
equivalent to that of a standard 44mm universal drive shaft. Each component is
available separately as a spare part to aid with maintenance. The TA-06 is the
6th generation Tamiya high performance 4WD touring car. It incorporates a unique
dual drive system. It has a gear box in the rear for maximum acceleration and
a belt system to transfer power to the front drive wheels.

Specs and Features

• Scale: 1/10 scale
• Construction type: assembly kit
• Terrain use: on-road
• Drive-train: 4WD
• Drive type: multi
• Drive line: universal
• Differential type: gear
• Suspension: fully independent double wishbone
• Steering mechanism: bell-crank
• Shock damper: oil-filled damper
• Shock damper material: aluminum
• Tire type: not included
• Tire tread: slick
• Body material: n/a
• ESC: not included
• ESC type: N/A
• LED Light buckets: no
• LED lights: no
• Motor type: not included
• Bearings: shielded ball bearing
• Chassis material: FRP
• Sticker material: n/a
• Internal gear ratio: 2.16
• Adjustable camber: yes
• Adjustable toe angles: front and rear
• Adjustable ride height: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: yes
• Adjustable track width: yes
• Adjustable shock angle: yes
• Special features:
• Requires: 7.2 battery & charger
• Requires: wheels, tires, body set, motor, esc
• Requires: radio gear, servo, receiver
• Requires: polycarbonate paint
