84336 Tamiya – 1/10 RC F104 Ver.II V.2 Pro Chassis Kit Black Special

This is a Black Edition of the previously released F104 Version 2 kit (item 58534).
Every spec and feature is the same except all the aluminum parts are now anodized
in black instead of blue.

About the F104 version II:

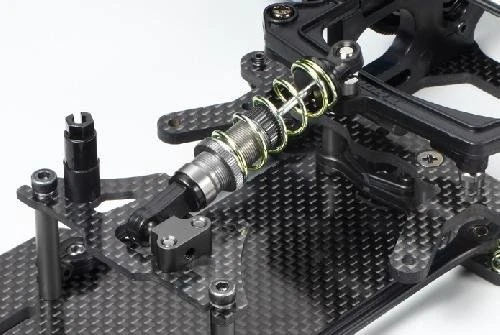

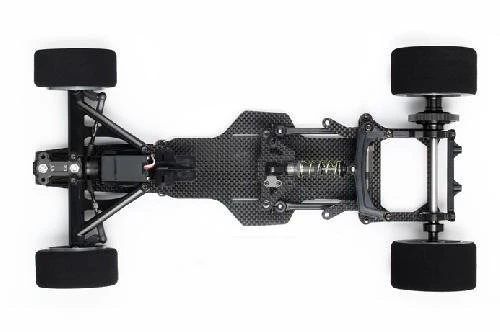

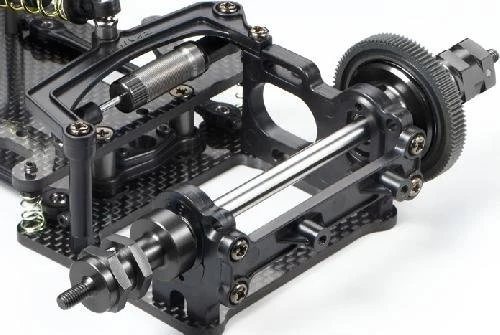

The new F104 version II chassis incorporates a Pivot Ball Link Rear Suspension
(PBLR) like the one found on the RM-01 chassis. Compared to the previous 3-point
T-bar rear suspension system, this new setup enables more precise adjustments
of the chassis&39; pitch and roll characteristics. Furthermore, the PBLR suspension
system features a center pivot ball, an aluminum pitch damper to temper chassis
pitch movement, and an aluminum roll damper and side links to control chassis
roll. The new layout also increases overall traction and provides greater high
speed cornering ability. The proven F104 front suspension remain intact, which
features king pin coil springs for the suspension set up.

Specs & Features

• Scale: 1/10 scale
• Construction type: assembly kit
• Terrain use: on-road
• Drive-train: 2WD RWD
• Drive type: pinion to spur gear
• Drive line: solid axle
• Differential type: ball pressure plate
• Suspension: independent front/solid axle rear
• Steering mechanism: direct servo
• Shock damper: oil-filled damper
• Shock damper material: aluminum
• Tire type: not included
• Tire tread: slick
• Body material: Polycarbonate
• Chassis material: carbon fiber plate
• Electronic Speed Control (ESC): not included
• ESC model: n/a
• LED Light buckets: no
• LED lights: no
• Motor: not included
• Bearings: shielded ball bearing
• Adjustable camber: yes
• Adjustable toe angles: front only
• Adjustable ground clearance: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: fixed
• Adjustable track width: fixed
• Adjustable shock angle: yes
• Special feature 1: Pivot-Ball Link Rear (PBLR) suspension system
• Special feature 2: Aluminum parts anodized in black
• Special feature 3: Carbon lower deck 3.0mm thick
• Requires: 2-channel radio gear
• Requires: 7.2 battery & charger
• Requires: wheels, tires, body set, motor, esc
• Requires: motor
