84375 Tamiya – 1/10 RC XV-01 Chassis Kit Long Damper Spec

This limited edition version of the versatile XV-01 chassis is set up to use
long dampers and provides an even greater off-road driving experience, while
still keeping the same base as the original XV-01.

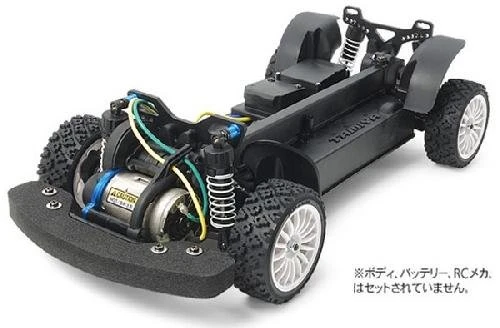

The 4WD XV-01 chassis offers dynamic R/C rally driving on both tarmac and gravel
surfaces. It features a front-motor, belt-driven 4WD layout with front and rear
enclosed gearboxes equipped with gear differential units. The box-like main
frame incorporates covers and wheel well liners to provide superb protection
against dirt and debris. The 4-wheel double wishbone suspension ensures plenty
of suspension stroke and ground clearance and is matched with Rally Block Tires
on replica wheels for realistic handling

• Scale : 1/10
• Construction type : assembly kit
• Terrain use : multi-purpose
• Drive-train : 4WD
• Drive type : Dual-Drive
• Drive line : dog bone
• Differential type : sealed oil-filled gear
• Suspension : fully independent double wishbone
• Steering mechanism : bell-crank
• Shock damper : oil-filled damper
• Shock damper material : plastic
• Tire type : rubber
• Tire tread : rally block
• Body material : not included
• Chassis material : plastic
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : 540-brushed type
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front and rear
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : yes
• Special feature 1 : Wheelbase: 257mm
• Special feature 2 : The chassis is fitted with newly-designed front and rear damper stays to allow maximum exploitation of the extended stroke provided by the CVA mini oil dampers.
• Special feature 3 : Suspension arm parts are designed to allow the car to run optimally using ground clearance of 10mm or more, making it ideally-suited to off-road running.
• Special feature 4 : The XV-01 chassis uses a front-motor, belt-driven 4WD layout with the drive belt, battery and R/C equipment protected from dirt and debris by covers.
• Special feature 5 : Compatible with Lancia Delta Integrale, Subaru Impreza WRX STI Team Arai, Subaru Impreza WRC 2008 or Mitsubishi Lancer Evo. X bodies (sold separately).
• Requires A : 2-channel radio gear & electronic speed control
• Requires B : 7.2 battery & charger
• Requires C : Body set
• Requires D : polycarbonate paint
