84424 Tamiya M05-V2 | 1/10 M-05 Ver.II R Chassis Kit

About the Tamiya 84424:

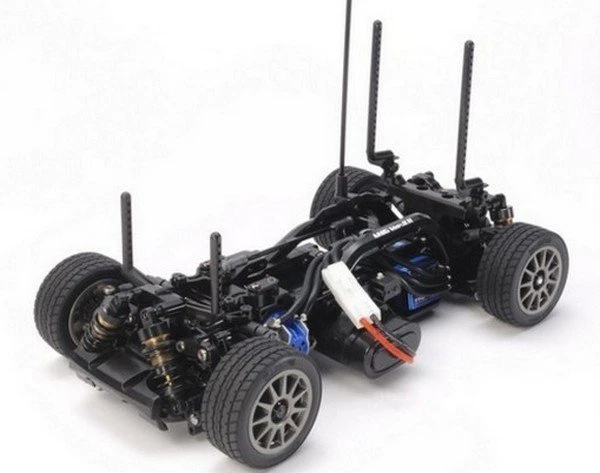

• The kit features the front-wheel drive M-05 Ver.II PRO chassis loaded with
  high performance race spec parts. Dedicated M-Chassis double cardan drive
  shafts make sure power loss is minimal, while TRF short dampers give great
  cushioning and traction, and M-05Ra uprights optimize cornering. The kit also

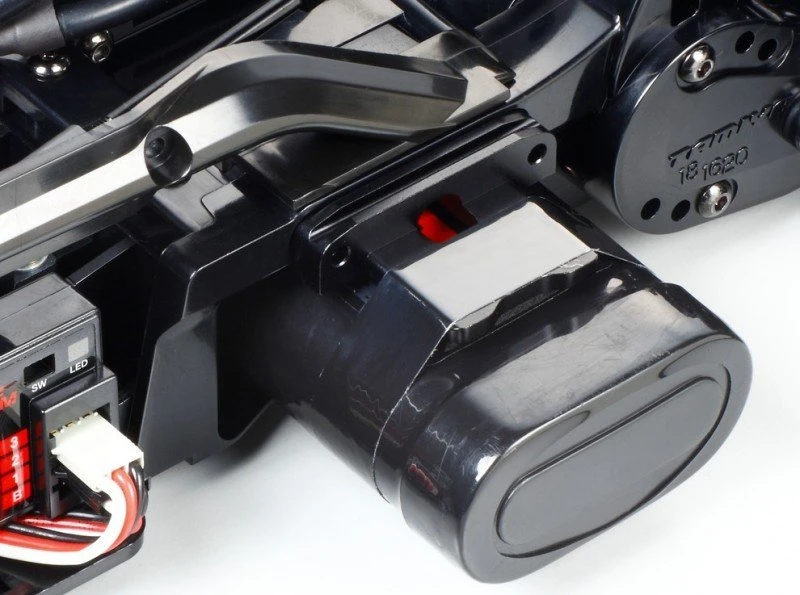

  includes lightweight aluminum battery holders, plus hex screws for worry-free
  attachment and ease of maintenance.
• The M05 chassis, which was released in 2009, has been a favorite platform
  for M-chassis club racers for years. The Version 2 tweaks the proven M05 with
  enhancements that take advantage of new battery technologies as well as tried
  and true suspension adjustments used in many of Tamiya&39;s touring car platforms.
  Furthermore, it features a number of upgrades, to improve balance and lower
  the chassis&39; center of gravity, making it a highly drivable FWD radio control
  car.

Specifications:

• Length: 300mm (S wheelbase),307mm (M, L Wheelbases)
• Width: 165mm
• Wheelbase: 210mm (S),225mm (M),239mm (L)
• Tread (Front & Rear): 138mm
• Monocoque Frame
• Front-Wheel 2WD
• 3-Bevel Differential Gear
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front & Rear TRF Aluminum Short Dampers (HL Coating)
• Gear Ratio = 5.8:1
• Type 540 Motor (sold separately)
• Electronic Speed Controller (sold separately)
• Special feature 1 : Newly-designed M-Chassis double cardan drive shafts
  minimize power loss.

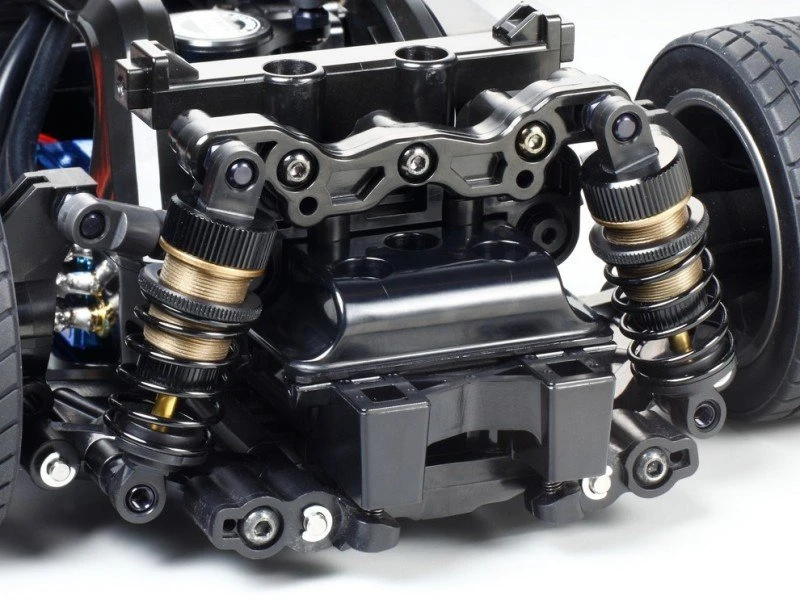

• Special feature 2 : TRF short dampers give superb cushioning and maximize
  chassis traction.

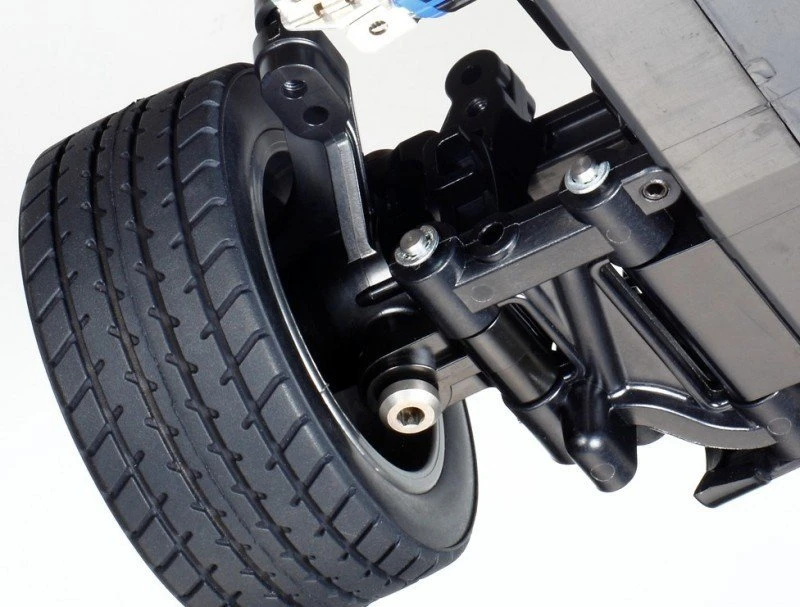

• Special feature 3 : M05R a type uprights ensure that the chassis has optimized
  cornering characteristics.
• Special feature 4 : Hex screws are employed for secure attachment of parts.
• Special feature 5 : Compatible with square-shaped battery packs & low-profile
  servos.
• Special feature 6 : Combination of black anodized metal parts and dark plastic
  molded parts.
