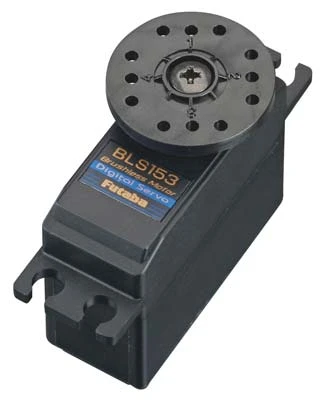

BLS153 Futaba Brushless Mini Air Servo

This is the Futaba BLS153 Brushless Mini Digital Servo for Aircraft Usage.

FEATURES:

• Mini size for applications where space and weight are at a premium
• At least five times longer lasting than brushed servos
• Dual ball bearings and Samarium cobalt magnets
• Smoother operation and greater resistance to jolts and vibration
• Same power consumption as brushed digital servos

INCLUDES:

Futaba BLS153 Servo with 0.83″ (21mm) round horn, 1.2″ (32mm) six
point horn, 1.5″ (39mm) four point horn, four rubber grommets, four eyelets,
four 1.5 x 12mm mounting screws and instruction sheet

REQUIRES:

Installing in aircraft, connecting linkage and connecting to receiver

SPECS:

• Power Supply: 4.8V – 6V NiCd battery only
• Speed: 0.15 sec/60?X @ 4.8V
• 0.12 sec/60?X @ 6V
• Torque: 76.4 oz-in (5.5 kg-cm @ 4.8V)
• 97.2 oz-in (7.0 kg-cm @ 6V)
• Size: 1.40 x 0.6 x 1.1″ (35.5 x 15 x 28.6mm)
• Weight: 0.92oz (26g)

COMMENTS:

For full performance of digital servos use them only with FM, PCM and FASST
systems. Do not use digital servos with AM systems.
