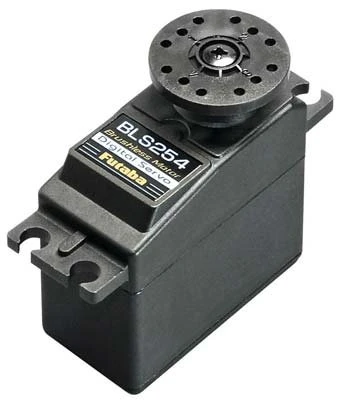

BLS254 Futaba Brushless Heli Rudder Servo

This is the Futaba BLS254 Brushless Heli Rudder Servo.
When using with the GY520 you must make sure you change to the correct mode in
the gyro software.

FEATURES:

• Designed for 3D helis
• Standard size
• Equipped with two ball bearings
• 30% faster response than standard digital servos and five times longer lasting
  than servos with brushed motors
• Same power consumption as brushed digital servos

INCLUDES:

• Futaba BLS254 Brushless Heli Rudder Servo with universal connector
• (21mm) diameter round horn, 1.8″ (45mm) diameter round horn 1.2″
• (32mm) diameter 6-point horn, 1.5″ (38.8mm) diameter 4-point horn mounting
  screws, eyelets and grommets

REQUIRES:

Installing in heli, connecting linkage and connecting to receiver

SPECS:

• Torque: 53 oz-in (3.8kg/cm) @ 4.8V
• Speed: 0.06 sec/60?X @ 4.8V
• Size: 1.60 x 0.80 x 1.50″ (40 x 20 x 36.8mm)
• Weight: 1.80 oz (51g)
