BLS257 Futaba Brushless Heli Rudder Mini Servo

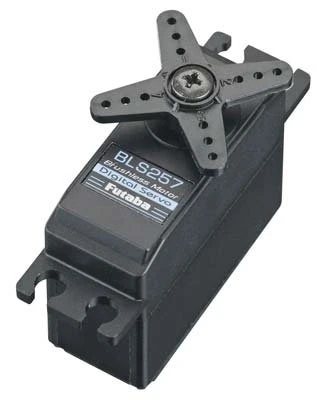

This is the Futaba BLS257 Brushless Rudder Mini Digital Servo.
When using with the GY520 you must make sure you change to the correct mode in
the gyro software.

FEATURES:

• Designed for 3D helis
• 30% faster response than standard digital servos and five times longer lasting
  than servos with brushed motors
• Same power consumption as brushed digital servos

INCLUDES:

Futaba BLS257 Brushless Heli Rudder Mini Digital Servo with universal connector,
0.83″ (21mm) diameter round horn, 1.2″ (32mm) diameter 6-point horn,
1.5″ (38.8mm) diameter 4-point horn, four each mounting screws, eyelets
and grommets

REQUIRES: Installing in heli, connecting linkage and connecting to receiver

SPECS:

• Torque: 36 oz-in. (2.6 kg-cm) @ 4.8V
• Speed: 0.07 sec/60?X
• Size: 1.4 x 0.6 x 1.1″ (35.5 x 15 x 28.6mm)
• Weight: 0.92 oz (26g)
