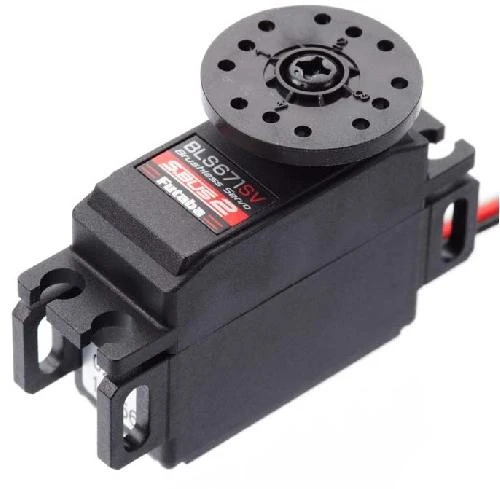

BLS671SV Futaba – 1/12 Mini Brushless S.BUS 2 High Voltage Servo

• This is the Futaba BLS671SV – 1/12 Mini Brushless S.BUS
  2 High Voltage Servo
• Designed to be used with models requiring high speed and high torque
  Brushless motor offers incredible holding power and 5X longer life
  than servos equipped with brushed motors
  Programmable and compatible with S.Bus and S.Bus2

Includes:

• HV BLS671SV HS S.Bus2 Mini Servo with Instructions
• 0.83″ (21mm) Round Horn
• 1.5″ (39mm) Four Point Horn
• 1.2″ (32mm) Six Point Horn
• Four each, Grommets, Eyelets and Mounting Screws

Spec:

• Speed: 0.11sec/ 60deg (at 6.6V) 0.10sec/ 60deg (at 7.4V)
• Torque: 7.4kg/cm (at 6.6V) 8.4kg/cm (at 7.4V)
• Torque: 102.8oz/in (at 6.6V) 115.3oz/in (at 7.4V)
• Size: 33 x 15 x 27.1mm
• Weight: 28g
• Rated Voltage: DC6.0V – 7.4V
• Operating Voltage: DC4.0V – 8.4V
