Dash Sanwa Saber AM 27mhz 2 Channel Radio Control W/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)

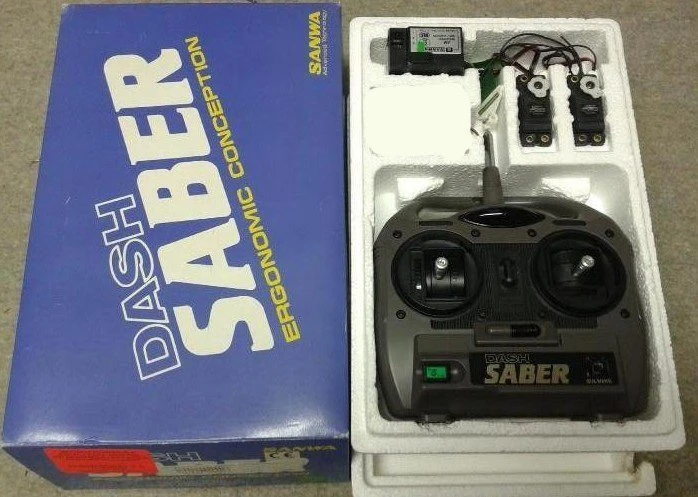

Contents:

• Sanwa Dash Saber-X Transmitter
• SRD-2122RS Receiver
• 2x SRM-102 Servos (SB-NOR)

Specifications:

Transmitter:

• Power:500mW
• Modululation: PPM/AM
• Occupied Bandwidth: -55db@ 20KHz
• Power Supply: 8AA Size Dry Cells DC 12V
• Weight 393 grams (Excepting battery)

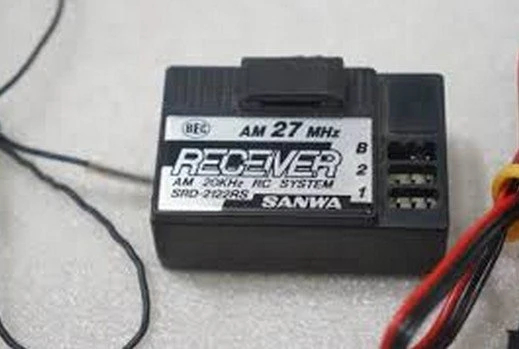

Receiver:

• Modululation: PPM/AM
• Intermediate Frequency: 455KHz
• Power Supply: 4.8V to 8.4V NiCD,6.0V Dry Cell
• Dimensions:48mm(L)x33mm(W)x19mm(H)
• Weight:32 grams

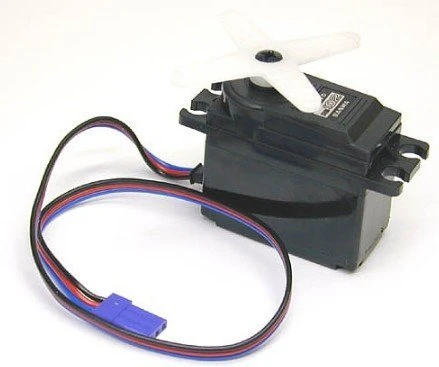

Servo:

• Power Supply: 6.0V through BEC Receiver
• Dimensions:39mm(L)x20mm(W)x36mm(H)
• Weight:45 grams
• Transit time: 0.18 seconds (at 6.0V) for 60 degree rotation
• Torque:3.5 kg/cm (6.0V)

Accessories

• BEC Swith Harness
• Instrustion Manual
