DP-ORCZ33 Yokomo – 1/10 Scale EP RC Drift Car Kit – ORC Z33



Model after the ORC with TOP SECRET Z33 D1 racer driven in the 2005 professional drift championship by Ryuji Miki (2004 Series Champion), this unassembled 1/10th scale electric-powered radio controlled car kit allowss the appeal of drifting to be easily enjoyed by anyone.

All of the essential features have been miniaturized to allow the alluring aspects of drifting to be enjoyed with a radio-controlled car.

The underpinings are comprmised of Yokomo’s newly developed MR-4TC SD molded type chassis (which features an advanced racing suspenion geometry for superior handling performance), and a highly efficient shaft drive full-time 4wd system. The assential keys to drifting, such as drift angle and distance, are enhanced by the Yokomo Super Drift tires (patent pending). And for improved performance, a slew of optional parts are available to tune the chassis, just like it’s full-size counterpart.

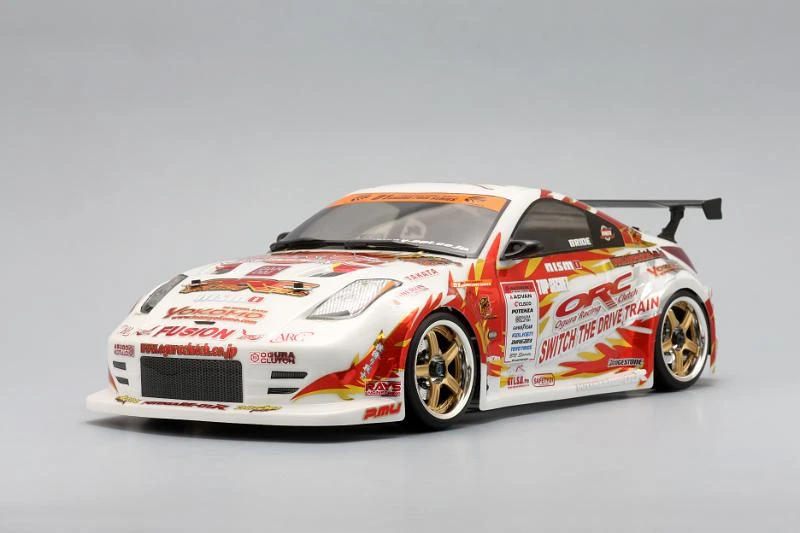

The detailed exterior begins with an aggressively styled body, GT-type wing, aero mirrors, and even wheels that have been carefully detailed to replicate the scale look of the original. In addition to the realistic drifting performance, this kit can also be prudl displayed as a static model.

Features:


Optional light buckets and lighting kits are available to really bring out the scale look.


Taller GT wings(just like the ones used in D1) are included in each kit.


Highly detailed racing livery decals are also included in each D1-SPEC kit. Every D1-SPEC kit is officially licensed by the respective teams, and the D1 Grand Prix.


Patent pending ZERO ONE ‘R’ drift tires are mated to detailed replicas of the actual wheels. SUPER ADVAN Racing Ver.2 wheels shown.


Detailed accessory parts including front and rear brake rotors, brake calipers, wipers and aero mirrors are included for added scale realism.


The newest CM version of our race-proven MR-4TC SD chassis. Light and yet very strong, the molded CM chassis is easy to build and boasts shaft-driven full time 4WD, fully adjustable double wishbone suspension, LSD ball di.erentials and adjustable coil-over shocks.

MR-4TC SD CHASSIS

• High efficiency shaft drive full-time 4WD system (Sealed TransmisionCase)
• High strength molded composite chassis
• Fully adjustable double-wishbone suspension
• Adustable alignment via tie-rod turnbuckles
• Lsd type ball differentials (front & rear)
• Front universal driveshafts, rear dog bones
• Composite shock absorbers (adjustable damping)
• Front urethane bumper, rear bumper
• Aluminum die-cast clamp type motor mount
• Spur gear (70T)
• Pinion gear (30T)
• Ball bearing (9 pieces)

  EXTERIOR

• Top secret super G-Force Z33 wide body
• GT wing
• ORC with top secret Z33 design & detailing decal (sponsor logos-lights-window frame)
• Window paint masking
• Accessory pats (exhaust muffler-brake rotors-wipers-aero mirrors)
• Super drift tires for superior drift distances and angles (patent pending)
• Rays volk racing GT-C wheels (gold version)

  ADDITIONAL ITEMS REQUIRED (SOLD SEPARATELY)

• 2 Channel radio set

  -Transmitter

  -Receiver

  -Speed controller

  -Servo
• Sub-C type 7.2V Battery (6 cell) stick pack & side pack compatible
• Charger
• Motor (Yokomo motors recommended)
• Paint for polycarbonate bodies

  *Actual product may differ slightly from product shown in photos used on this package.

  *Product contents subject to change without notice.

• Scale: 1/10
• Overall body length: 446mm
• Overall body width:190mm
• Overall height: 120mm
• Overall chassis width: 194mm
• Wheelbase: 258mm
• Internal drive ratio: 2.353:1
• Full weight: APPROX. 1.650g
