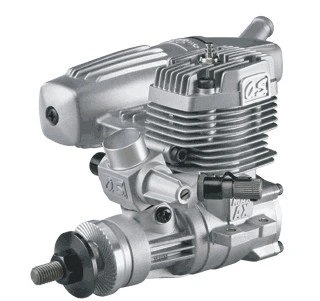

Engine O.S. – 35AX

Big power in a small AX engine!

The same quality construction that has enabled AX engines to deliver FX power
in a more compact size can be found in the 35AX. Popular-sized aircraft will
be able to swing bigger props, which means improved all-around performance.
Plus, the 35AX requires no modifications to fit inside a cowl designed for a
smaller engine!

Same mounting dimensions as the 32SX and 25FX engines.

Distinctive 5-sided heat sink head design for better cooling.

Diagonally-mounted needle that makes adjustments much safer.

Specifications:

• Stock Number: OSMG0545
• Bore: 0.795 in (20.2 mm)
• Stroke: 0.709 in (18.0 mm)
• RPM range: 2,500-19,000*
• Output (hp @ RPM)*: 0.9 @ 11,000 ? 1.3 @ 16,000
• Weight w/muffler: 12.8 oz (363 g)
• Includes: Power Box E-3080 muffler, #8 glow plug, needle valve extension
  cable
• Recommended Props: 10×6, 10×7, 11×6, 12×6

* = Minimum figures calculated with recommended props. Maximum figures calculated
with modified props.
