G190 Futaba Micro Piezo Gyro

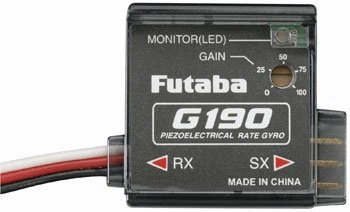

This is the Futaba G190 Micro Piezo Gyro.

FEATURES:

• Integrated sensor type rate gyro is designed for small electric powered
  helicopters
• Any side of the gyro case can be used to mount unit to heli-great for limited
  space applications
• High density assembly technology results in small size and light weight

Function

Integrated sensor type rate gyro is designed for small electric powered helicopters
Any side of the gyro case can be used to mount unit to heli-great for limited
space applications High density assembly technology results in small size and
light weight

Includes:

• One Futaba G190 Micro Piezo Gyro
• One mini plastic screwdriver
• Three pieces of double sided tape

SPECS:

• Length: 0.87″ (22.2mm)
• Width: 0.90″ (22.8mm)
• Height: 0.35″ (8.9mm)
• Weight: 0.24oz (6.7g) including connector
• Operating Voltage: 4.8 to 6V DC
• Current Drain: 15mA @ 4.8V
• Operating Temperature Range: -5Xto +45XC
• Functions: Sensitivity trimmer and LED monitor
• Gyro Sensor: Piezoelectric
• Functions: Sensitivity trimmer and LED monitor
• Voltage- use only with a 4.8V battery. (if you use it with a higher voltage
  battery it needs to be regulated to 6V)
