GY401_S9254 Futaba – GY401 Gyro W/SMM Technology + S9254 Digital Coreless High Torque

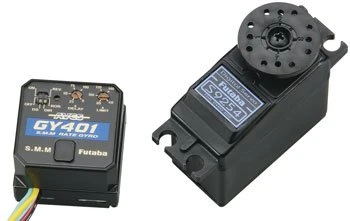

This is the Futaba GY401 Gyro with an S9254 Digital Servo.
This is a high performance, compact and lightweight
(AVCS) Angular Vector Control System gyro developed for model helicopters.
Because the sensor and control circuit are integrated, it is simple to install.

FEATURES:

• AVCS System: Since the rudder trim changes (caused by wind and other meteorological
  changes) the front, rear, and other heli attitudes change and are automatically
  cancelled; tail (rudder) operation is easy, making it perfect for 3D flight.
  (also known as heading hold gyro)
• SMM Gyro Sensor: Use of this newly developed technology virtually eliminates
  rudder trim changes during flight (see COMMENTS).
• Digital Servo Compatible (DS Mode): DS mode makes it compatible with Futaba
  Digital Servos. This maximizes the high-speed response performance of the
  Digital Servo.
• Included high-speed S9254 Digital Servo boasts 47 oz-in torque and a speed
  of .06 sec/60?X
• Remote Gain Function and Mode Switching Function Remote: Gain function allows
  sensitivity switching from the transmitter and mode switching function allows
  AVCS/normal gyro mode switching.
• Integrated, compact and lightweight design made possible by high density
  mounting technology.
• Conductive Resin Case: This case improves EMC (Electrostatic and electromagnetic
  interference) resistance.

INCLUDES:

• One GY401 gyro
• One S9254 Digital servo, available separately FUTM0224
• One .81″ (20.5mm) round servo horn, one 1.8″ (45mm) round servo
  horn
• One 1.25″ (32mm) 6 point servo horn, one 1.5″ (39mm) 4 point horn,
  mounting hardware
• One mini plastic adjustment screwdriver
• Three mounting pads
• One instruction sheet

SPECS:

• GY401 Gyro- S9254 Digital Servo
• Length: 1.1″ (27mm) 1.6″ (40mm)
• Width: 1.1″ (27mm) .79″ (20mm)
• Height: .79″ (20mm) 1.4″ (36.2mm) not including horn
• Weight: .95oz (27g) 1.8oz (50g)
• Torque: 47 oz-in
• Speed: .06 sec/60?X
