MT-4 Sanwa W/RX461+RX462/Battery Box/Switch Without Servo

The World’s fastest 2.4GHz telemetry transmitter!

The World’s fastest 2.4GHz telemetry transmitter!
Discover race feeling like the pros! The Sanwa MT-4 is equipped with super fast
telemetry and the new 2.4GHz S-Link FH4T system (FH4T = F.H.S.S.-4 telemetry).
Once again, Sanwa is unbeatable compared to its competitors. Super fast response,
highest transmission security and rapid telemetry data flow make the Sanwa MT-4
the reference product on the market.

• The following telemetry data* are displayed and can be accessed after the
  run
• RPM – Sensor included
• Temperature – 2 sensors connectable, 1 sensor already included
• Receiver battery voltage (battery charge condition)

The telemetry does only work with the RX-461 and RX-462 receiver

• The Sanwa MT-4 can be operated with all Sanwa 2.4GHz FHSS-2, FHSS-3 and
  FHSS-4 car receivers: RX-371, RX-442FS, RX-451, RX-451R

Features:

• Super fast F.H.S.S.-4 technology
• Antenna integrated into the handle
• High-quality case and workmanship
• Menu selection – comfortable operation with scroll wheel
• Telemetry (displays motor temperature, RPM and receiver voltage during operation)
• Telemetry Logging
• Telemetry sensors included
• Data logger: up to 120 measuring points during the run (grading selectable)
• Direct Model Select
• Dual Rate, Expo, Trim/Sub Trim, Servo Reverse and Endpoint Adjustment
• Adjustable servo operation speed
• Anti-Lock Braking System
• Programmable model names and 18 model memory
• Model Select Shortcut (Direct Model)
• Compatible with older receivers due to changeable modulation (FH2/FH3/FH4T)
• Adjustable spring tension for steering and throttle
• Adjustable Throttle Trigger
• Changeable throttle mode (5:5 or 3:7)
• Programmable Low Voltage Alarm
• Additional grip pad for bigger hands
• Recommended telemetry receiver: RX-461 (1x included)
• Timer
• AUX1 / AUX2

RX461

• Frequency: 2.4GHz FHSS4
• Channel: 4ch
• Nominal Input Voltage: 4.8~7.4V
• Dimensions: 4.8-7.4V
• Weight: 9.6g
• Compatible radio: MT-4

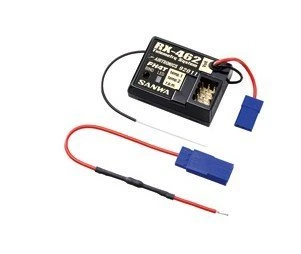

RX462

• Frequency: 2.4GHz FHSS4
• Channel: 4ch
• Nominal Input Voltage: 4.8-7.4V
• Dimensions: 36.2×26.5×16.3mm
• Weight: 10.8g
• Compatible radio: MT-4

Cautions and supplemental explanation

About MT-4 Response Mode

• Please be aware that analog servo could not be activated under SHR,SSR mode.
  To prevent risks of trouble, do not use analog servo under SHR,SSR mode.
  Digital servos(SRG, Digital ERG, SDX) can be activated under either NOR or
  SHR mode.
  SSR mode only activates on SRG series.
• The Sanwa MT-4 can be operated with all Sanwa 2.4GHz FHSS-2, FHSS-3 and
  FHSS-4 car receivers: RX-371, RX-442FS, RX-451, RX-451R.
