MT-44 Sanwa – 4-Channel 2.4G Transmitter With RX482 And RX472 Receiver

Beyond Middle Class Radios, The MT-44 Transmitter

• HIGH RESOLUTION DISPLAY
  The same detailed dot as M12S enables so clear display.
  Three kind of telemetry data can be displayed simultaneously because of gray
  scale display.
• BEST POSITION FOR STEERING / THROTTLE
  Steering/Throttle is arranged in the best position for operation.
  Drop Down is used as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries allows to be not only compact but also light.
• USB CHARGE
  When used with optional Li-Po 1 cell battery, weight become lighter and it
  can be changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• Quick Setup Wizard
• Safety Link
• Racing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry Switch
• Clock
• Circumstance Temperature Display
• CSV Output for LOG data
• CODE 10-compatible (Naming support)
• Simultaneous three telemetry data display
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB change support)
• Large full dot LCD monitor
• Wight LED back light
• Full adjustable trigger
• Telemetry function
• Built-in antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Dual Rate
• End Point Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable Rate Control)
• AUX1 (Movement type for 3CH. it’s the same as MT-4S function.)
• AUX2 (Movement type for 4CH. it’s the same as MT-4S function.)
• Fail safe (power/ battery) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (when used with SD card, 250 models is available.)
• Model Name (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Select
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• Response Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• STEP AUX (Step 1 – 100)
• POINT AUX (2 – 6 point)
• 4WS MIXING (Front/Rear/Normal(coordinate phase)/Reverse(opposite phase))
• MOA MIXING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH MIXING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• Volume Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

Compatible Receivers:

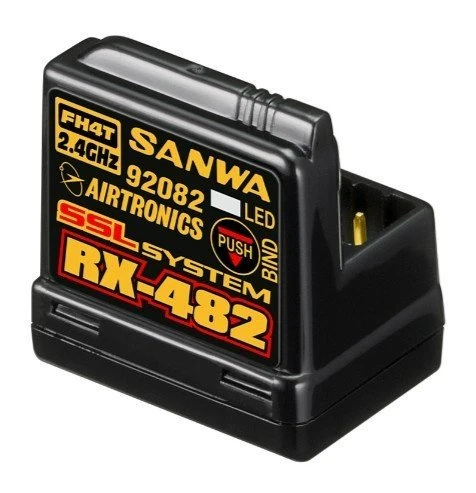

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471,
  RX-451R, RX-451, RX-381, RX-380)

Cautions and supplemental explanation:

[SSL(SANWA Synchronized Link) Sysytem] SANWA NEW SSL SYSTEM

• When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series,
  the setting of ESC etc. by Transmitter is available through SSL functions
  while driving.
• Since the setting can be done without the stop of car, the detailed adjustment
  in accordance with Race conditions
  is available without interruption of Intervals and the change of machine conditions.

[Response of Telemetry System]

• It is often said that telemetry system reduce response speed. However,
  SANWA Original Data Processing and Algorithm Design makes Telemetry possible
  without response speed reduction.
  Our Excellent Telemetry System has no response speed reduction.
• With our telemetry system, the precious race data will help the next race
  setting and driving.

[Response Mode]

• Please do not use Analog Servo for SHR mode or SSR mode.
  If analog servo is used for SHR mode or SSR mode, the servo will be broken
  and will not work.
  Digital servo (SRG series, Digital ERG series, SDX series) can be used both
  for NOR mode and SHR mode.
• SSR mode can be used only by SRG series servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not
  work.
  Please use NOR mode for the above ESC.
