MT-4S Sanwa 4CH 2.4G With RX472 And RX482 Receiver

• Beyond the traditional middle class, amazing response to approach M12*
  * Double response rather than MT-4
• From CODE-AUX function* , SSL (Sanwa Synchronized Link) function
  which can be adjusted from Radio to the corresponding devices directly
  *Various settings of Super Vortex Zero and Gain-adjustment of SGS-01C
• LCD backlight is added and even better usability is realized

Features:

• LCD backlight
• CODE AUX (with CODE AUX name function )
• Super fast F.H.S.S.-4 technology
• Antenna integrated into the handle
• High-quality case and workmanship
• Menu selection – comfortable operation with scroll wheel
• Telemetry (displays motor temperature, RPM and receiver voltage during operation)
• Telemetry Logging
• Telemetry sensors included
• Data logger: up to 120 measuring points during the run (grading selectable)
• Direct Model Select
• Dual Rate, Expo, Trim/Sub Trim, Servo Reverse and Endpoint Adjustment
• Adjustable servo operation speed
• Anti-Lock Braking System
• Programmable model names and 18 model memory
• Model Select Shortcut (Direct Model)
• Compatible with older receivers due to changeable modulation (FH2/FH3/FH4T)
• Adjustable spring tension for steering and throttle
• Adjustable Throttle Trigger
• Changeable throttle mode (5:5 or 3:7)
• Programmable Low Voltage Alarm
• Additional grip pad for bigger hands
• Timer
• AUX1 / AUX2

Cautions and supplemental explanation

• About MT-4 Response Mode
  Please be aware that analog servo could not be activated under SHR,SSR mode.
  To prevent risks of trouble, do not use analog servo under SHR,SSR mode.
  Digital servos(SRG, Digital ERG, SDX) can be activated under either NOR or
  SHR mode.
  SSR mode only activates on SRG series.
• The Sanwa MT-4 can be operated with all Sanwa 2.4GHz FHSS-2, FHSS-3 and
  FHSS-4 car receivers: RX-371, RX-442FS, RX-451, RX-451R.

RX-472 Receiver:

• 2.4GHz FHSS4/FHSS3 Spread spectrum system 4ch
• Sanwa Synchronized Link ( SSL ) function support
• Sanwa Super Response (SSR) support
• Lightest receiver in class

Specs:

• Frequency :2.4GHz FHSS4/FHSS3
• Channel :4ch
• Nominal Input Voltage :4.8~7.4V
• Dimensions :30.0×23.3×14.0mm
• Weight :6.6g
• Compatible radio :M12, EXZES Z,MT-4 ( SSL not support )

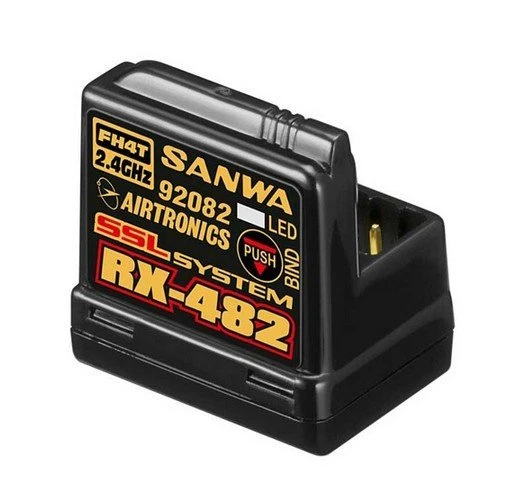

RX-482 Receiver:

• 2.4GHz FHSS4 Spread spectrum system 4ch
• SSL support (ESC: Super Vortex Series etc.)
• Built-in Antenna
• Sanwa Super Response (SSR) support

Specs:

• Frequency :2.4GHz FHSS4
• Channel :4ch
• Nominal Input Voltage :3.7V~7.4V
• Dimensions :18.2×24.4×27.1mm
• Weight :7.1g
• Compatible radio :M12, Exzes Z, MT-4S, MT-4(No SSL support)
