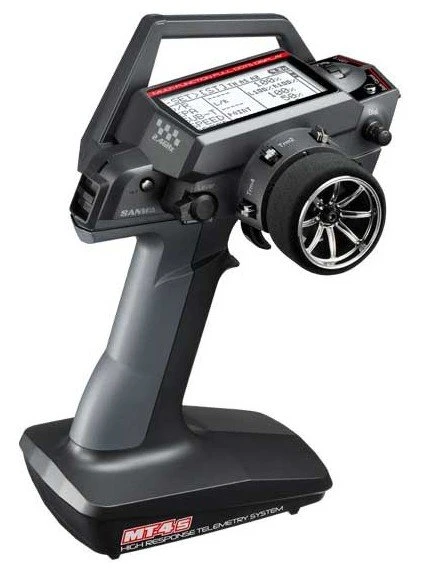

MT-4S Sanwa Super Computer Radio Transmitter 4ch 2.4G RX472/SX-102Z X2/PC SSL

Entry for the race seriously
Feeling a new driving which collaboration with peripheral devices produces
And more than anything, more enjoyable world
Attraction of MT-4S to add evolushon & scalability to MT-4 of deep R/C

• LCD backlight
• CODE AUX (with CODE AUX name function )
• Super fast F.H.S.S.-4 technology
• Antenna integrated into the handle
• High-quality case and workmanship
• Menu selection – comfortable operation with scroll wheel
• Telemetry (displays motor temperature, RPM and receiver voltage during operation)
• Telemetry Logging
• Telemetry sensors included
• Data logger: up to 120 measuring points during the run (grading selectable)
• Direct Model Select
• Dual Rate, Expo, Trim/Sub Trim, Servo Reverse and Endpoint Adjustment
• Adjustable servo operation speed
• Anti-Lock Braking System
• Programmable model names and 18 model memory
• Model Select Shortcut (Direct Model)
• Compatible with older receivers due to changeable modulation (FH2/FH3/FH4T)
• Adjustable spring tension for steering and throttle
• Adjustable Throttle Trigger
• Changeable throttle mode (5:5 or 3:7)
• Programmable Low Voltage Alarm
• Additional grip pad for bigger hands
• Timer
• AUX1 / AUX2

Cautions and Supplemental explanation:

• Please be aware that analog servo could not be activated under SHR,SSR mode.
  To prevent risks of trouble, do not use analog servo under SHR,SSR mode.
  Digital servos(SRG, Digital ERG, SDX) can be activated under either NOR or
  SHR mode.
  SSR mode only activates on SRG series.
• The Sanwa MT-4 can be operated with all Sanwa 2.4GHz FHSS-2, FHSS-3 and
  FHSS-4 car receivers: RX-371, RX-442FS, RX-451, RX-451R.

RX472 Receiver :

2.4GHz FHSS4/FHSS3 Spread spectrum system 4ch

Sanwa Synchronized Link ( SSL ) function support

Sanwa Super Response (SSR) support

Lightest receiver in class

Specs:

Frequency:2.4GHz FHSS4/FHSS3

Channel:4ch

Nominal Input Voltage:4.8~7.4V

Dimensions:30.0×23.3×14.0mm

Weight:6.6g

Compatible radio:M12,EXZES Z,MT-4 ( SSL not support )

SSL Function (Sanwa Synchronaized Link) System

From using both of “RX-472” and “Super Vortex Zero”,
Drivers operate
“Code AUX Function” which is included on M12 & EXZES-Z
and can adujust setting of equipment directly and quickly from Radios.
In case of using SSL System, Drivers don’t need to use Setting Card or PC.
And also, Telemetry data can be sent to Radios without using any Sensors.

In case of using MT-4 with both of “RX-472” and “Super Vortex
Zero”,
SSL Function is not responded, but Telemetry data can be sent to Radios
without using any Sensors.

Notice:

Dimensions on product specification only shows the size of receiver itself
and it excludes length of the antenna and crystal projection.
To maintain the reception of device, please do not cut the antenna. For additional
information, please read official manual for each product.
