MT-S Sanwa – 4-Channel 2.4G Transmitter With RX-482 And RX-462 Receiver

• 1 SETUP WIZARD FOR EASY SETTING
• CAR TYPE(8 MODEL TYPES) CAN BE SET EASILY.
• 2 SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE
• The compatible equipment can be set by transmitter
• through CODE AUX functions.
• *Compatible equipment: SUPER VORTEX SERIES,
• SV-PLUS SERIES, SGS-01C (Gain Adjustment)
• 3 LIGHT BODY (366g)
• EASY OPERATION FOR CHILDREN
• MIDDLE CLASS (ENTRY LEVEL)

Features:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• BUILT-IN ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE RATE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT SETTING
• TELEMETRY SETTING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / VOLUME CHANGEABLE)
• TRANSMITTER BATTERY ALARM
• LCD CONTRAST
• VOLUME ADJUSTMENT
• SETUP WIZARD
• RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE OPERATION TYPE OF 3CH)
• AUX2(SELECT THE OPERATION TYPE OF 4CH)
• AUX TYPE SETTING
• CODE AUX (COMPATIBLE WITH SUPER VORTEX ZERO & TYPE-D MENU)
• STEP AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS MIXING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
  *DRIVE RATE IS VARIABLE.
• AUX MIXING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,

  RX-472, RX-481, RX-482

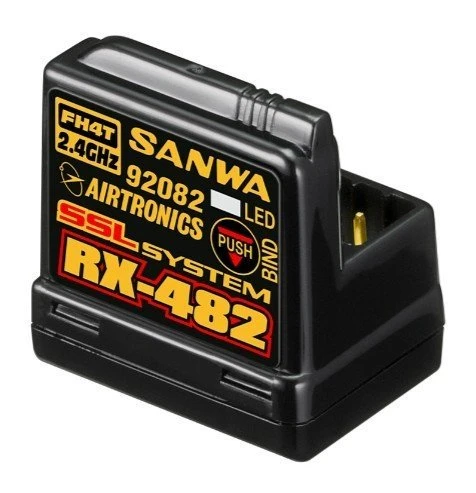

RX482 Specs:

• Frequency : 2.4GHz FHSS4
• Channel : 4ch
• Nominal Input Voltage : 3.7V~7.4V
• Dimensions : 18.2×24.4×27.1mm
• Weight : 7.1g
• Compatible radio : M12, Exzes Z, MT-4S, MT-4(No SSL support)

RX482 Features:

• 2.4GHz FHSS4 Spread spectrum system 4ch
• SSL support (ESC: Super Vortex Series etc.)
• Built-in Antenna
• Sanwa Super Response (SSR) support

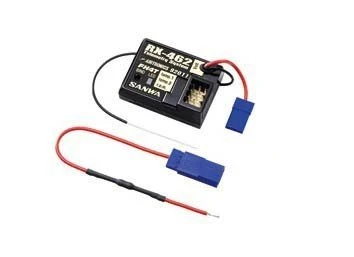

RX462 Specs:

• Frequency: 2.4GHz FHSS4
• Channel : 4ch
• Nominal Input Voltage: 4.8-7.4V
• Dimensions : 36.2×26.5×16.3mm
• Weight : 10.8g
• Compatible radio :MT-4

RX462 Features:

• Telemetry
• Battery voltage sensing terminal included
• 2.4GHz FHSS4 Spread spectrum system 4ch
• Sanwa Super Response (SSR) support
• sensors is not included
