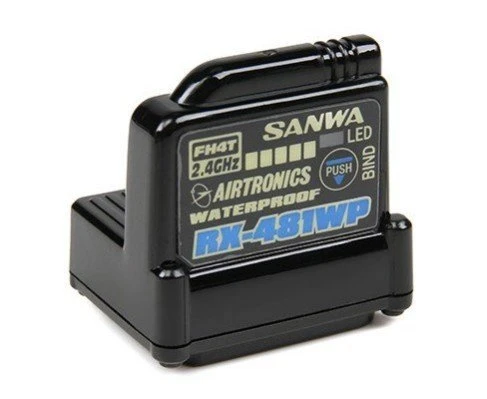

MT-S Sanwa Piano Black Limited Edition With Receiver RX-482 And RX-481WP

Black Limited Edition of Sanwa MT-S

FEATURES:

• SETUP WIZARD FOR EASY SETTING,CAR TYPE(8 MODEL TYPES) CAN BE SET EASILY.
• SSL (SANWA SYNCHRONIZED LINK)-COMPATIBLE,The compatible equipment can be
  set by transmitter through CODE AUX functions.
  *Compatible equipment: SUPER VORTEX SERIES,SV-PLUS SERIES, SGS-01C (Gain Adjustment)
• LIGHT BODY (366g),EASY OPERATION FOR CHILDREN
• MIDDLE CLASS (ENTRY LEVEL)

SYSTEM FEATURES:

• WHITE LED BACK LIGHT
• LARGE FULL-DOT LCD MONITOR(128x64dot)
• ST TH TENSION ADJUSTMENT
• ADJUSTABLE TRIGGER
• BUILT-IN ANTENNA
• TELEMETRY FUNCTION
• DUAL RATE
• SERVO SPEED
• SERVO REVERSE
• TRIM/SUB TRIM
• CURVE(EXPONENTIAL / ADJUSTABLE RATE CONTROL)
• FAIL SAFE(RADIO WAVES / BATTERY)
• EPA
• OFFSET
• BIND
• BASE
• FUNCTION
• TH TYPE(70:30/50:50)
• ANTI-LOCK BRAKE
• MODEL NAME(10 LETTERS)
• MODEL MEMORY(20 MODELS)
• MODEL(SELECT/CLEAR/COPY)
• TIMER(LAP / INTERVAL / DOWN)
• LOGGER
• ALERT SETTING
• TELEMETRY SETTING
• KEY ASSIGN(SW / TRIM)
• BUZZER(SCALE / VOLUME CHANGEABLE)
• TRANSMITTER BATTERY ALARM?LCD CONTRAST
• VOLUME ADJUSTMENT
• SETUP WIZARD?RF MODE SETTING(FH4/FH3)
• RESPONSE MODE (NOR/SHR/SSR)
• DIRECT MODEL SELECT
• AUX1(SELECT THE OPERATION TYPE OF 3CH)
• AUX2(SELECT THE OPERATION TYPE OF 4CH)
• AUX TYPE SETTING
• CODE AUX (COMPATIBLE WITH SUPER VORTEX ZERO & TYPE-D MENU)
• STEP AUX (STEP 1 to 100)
• POINT AUX (2 to 6 POINT)
• 4WS MIXING (FRONT/REAR/NORMAL/REVERSE
• MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
• *DRIVE RATE IS VARIABLE.
• AUX MIXING (ST MIXING, TH MIXING)
• 4 CELL DRY BATTERY
• COMPATIBLE RECEIVER; RX-380, RX-381, RX-451, RX-451R, RX-461, RX-462, RX-471,

  RX-472, RX-481, RX-482

CAUTIONS AND SUPPLEMENTAL EXPLANATION

[SSL(SANWA SYNCHRONIZES LINK) SYSTEM] SANWA NEW SSL SYSTEM

• When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus
  Series, the setting of ESC etc. by Transmitter is available through SSL functions
  while driving.
• Since the setting can be done without the stop of car, the detailed adjustment
  in accordance with Race conditions is available without interruption of Intervals
  and the change of machine conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• It is often said that telemetry system reduce response speed. However,
  SANWA Original Data Processing and Algorithm Design makes Telemetry possible
  without response speed reduction.
  Our Excellent Telemetry System has no response speed reduction.
• With our telemetry system, the precious race data will help the next race
  setting and driving.

[RESPONSE MODE]

• Please do not use Analog Servo for SHR mode or SSR mode.
• If analog servo is used for SHR mode or SSR mode, the servo will be broken
  and will not work.
• Digital servo (SRG series, Digital ERG series, SDX series) can be used both
  for NOR mode and SHR mode.
• SSR mode can be used only by SRG series servo.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000,
  F3300, SBL-01, SBL-02 and SBL-03CR do not work.
• Please use NOR mode for the above ESC. SV-08, HV-10, HV-12, F2500 can work
  by NOR/SHR MODE.

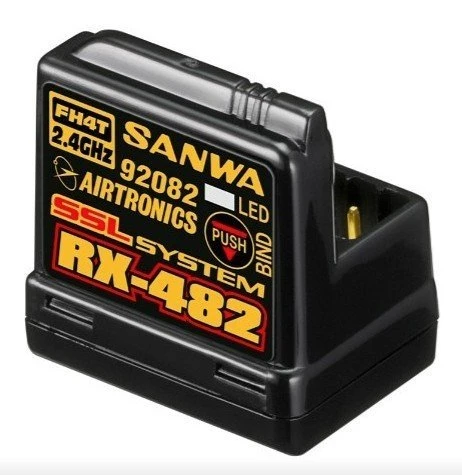

RX-482

• 2.4GHz FHSS4 Spread spectrum system 4ch
• SSL support (ESC: Super Vortex Series etc.)
• Built-in Antenna
• Sanwa Super Response (SSR) support
• Frequency: 2.4GHz FHSS4
• Channel: 4ch
• Nominal Input Voltage: 3.7V~7.4V
• Dimensions: 18.2×24.4×27.1mm
• Weight: 7.1g
• Compatible radio :M12, Exzes Z, MT-4S, MT-4(No SSL support)
