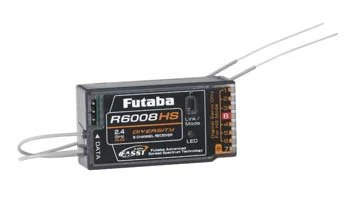

R6008HS Futaba 8-Channel 2.4GHz FASST Receiver

This is the Futaba R6008HS 2.4GHz FASST 8-Channel Receiver.
This receiver is switchable between regular and HS modes, per the Link/Mode
button.

FEATURES:

• G3 2048 resolution plus FASST benefits including Dual Antenna
• Diversity and significantly reduced latency for lightning quick response
• High speed operation allows digital servos to update more rapidly than analog
  servos (both are compatible with this receiver)
• HS (High Speed) mode improves frame rate on channels 1-6 to only
• 7 milliseconds-compared to 14 milliseconds at normal mode

INCLUDES:

Futaba R6008HS 2.4GHz FASST 8-Channel Receiver with instruction sheet

REQUIRES:

Installing in model and connecting servos

SPECS:

• Dimensions: 1.8 x 0.9 x 0.5″ (45 x 22 x 13mm)
• Weight: 0.48oz (13.5g)
• Power Requirement: 4.8 or 6.0V battery or regulated output from ESC

COMMENTS:

In HS mode, digital servos (including those in the BLS series) must be used
on channels 1-6. Those channels will also operate gyros and brushless ESCs.
Channels 7 and 8 continue at normal mode and accept any servos
