R6203SBE Futaba – 2.4G Receiver (High Voltage) S.Bus 3/18-Channel FASST

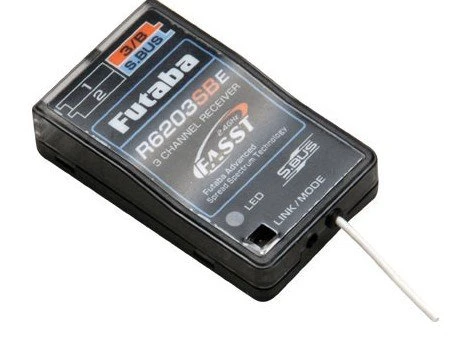

This is the Futaba R6303SBE FASST 2.4GHz Micro Receiver.

FEATURES:

• For use with park flight or indoor use airplanes and small electric helicopters
  up to 39.4″ (1000mm) main rotor diameter
• S.BUS system output port with three conventional channel outputs
• Compatible with S.Bus and conventional system servos and gyros
• Automatic FASST 2.4GHz 7-ch mode or 8ch/10ch/Multi-channel mode recognition

SPECS:

• Dimensions: 0.89 x 1.47 x 0.37″ (22.5 x 37.4 x 9.3mm)
• Weight: 0.22oz (6.3g)
• Power Requirement: 3.7 – 7.4V (voltage range 3.5 – 8.4V)*Battery fail safe
  voltage is set for 4-cell NiCd/NiMH battery. Fail safe function will not work
  properly with other types of batteries.
