R6208SB Futaba 2.4G 8ch S.Bus Receiver W/ High Voltage & High Speed Mode

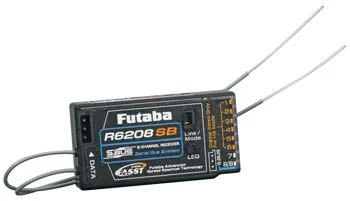

This is the Futaba R6208SB 2.4GHz FASST S.Bus 8-Channel High Voltage Receiver.



FEATURES:

• Utilizes digital serial data communication technology to transmit control
  signals between the receiver and servos using S.Bus hubs and cables (available
  separately)
• Easy programming with the SBC-1 Channel Setting Tool (FUTM4190),
• S-Bus receivers or PCLink software
• SBD-1 decoder cables (not included) allow the use of existing analog and
  digital servos
• Handles eight channels without S.Bus usage or as many as the available number
  of channels on transmitter with S.Bus use
• Prevents mismatched servo/channel connections
• Full-range receiver with DAD (Dual Antenna Diversity) that can be used in
  any flight application



INCLUDES:

Futaba R6208SB 2.4GHz FASST 8-Channel Receiver with Instructions and Short
Plug for connection the DATA port when an S.Bus channel is set

REQUIRES: Linking to transmitter and setting servo channels



SPECS:

Power Requirement: 3.7V or 7.4V battery or regulated output from ESC*
*output capacity must meet usage condition
Voltage Range: 3.5 – 8.4V
Dimensions: 0.98 x 1.86 x 0.56″ (24.9 x 47.3 x 14.3mm)
Weight: 0.49oz (13.8g)



COMMENTS:

FUTM4191 SBD-1 SBUS Decoder 1600mm
FUTM4192 SBD-1 SBUS Decoder 1100mm
FUTM4193 SBD-1 SBUS Decoder 400mm
