RC 3RACING Crawler EX Real – KIT-EX-REAL

EX REAL is a high performance with high level of realistic detail crawler.
The 1.4mm thick C-Channel metal frame with whole kit M7 metal linkages improve
the vehicle strength and durability. The front motor & 2 speed gearbox setup
follows the real crawler design, so the CG is at the front for better accelerating
traction. Besides, it keeps the space for user to do the preferring interior
designs. The metal bevel gear with metal solid axle, knuckes and upper linkage

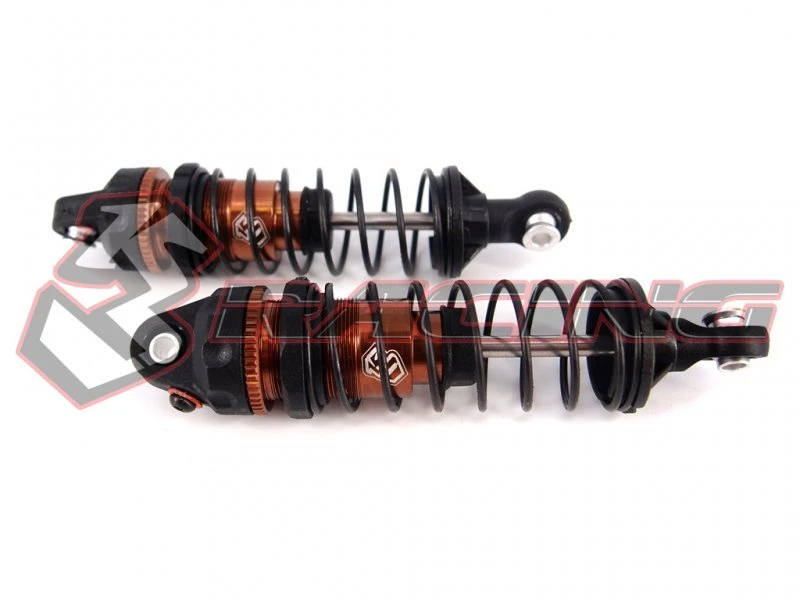

create significant ground clearance and greater exploring ability. The whole
new 75mm aluminum oil damper allows more oil volume to provide a better shock
absorbency. EX REAL includes all the refined adjustable settings: wheelbase,
camber and battery tray for the best performance in difference terrains. Also
with the stealth body mount and realistic front and rear bumper needed to say
EX REAL is a high price-performance ratio realistic crawler which makes you
have the best realistic crawler experience.

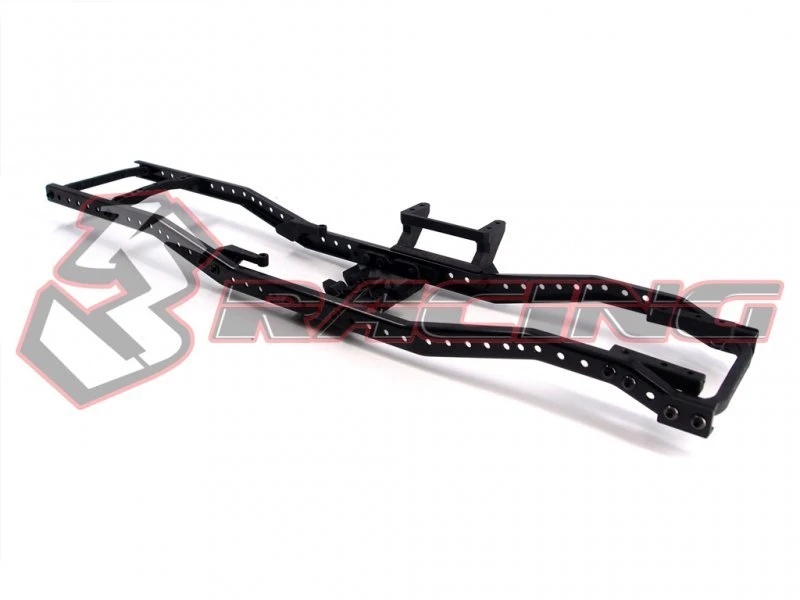

1.4MM THICK C-CHANNEL FRAME

1.4mm thick C-Channel metal frame with whole kit M7 metal linkages improve
the vehicle strength and durability.

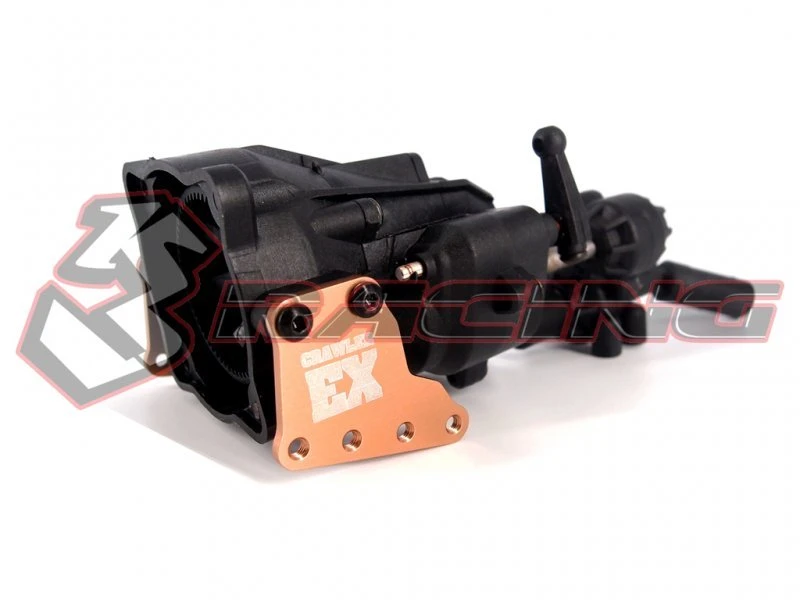

REALISTIC 2 SPEED GEARBOX & MIDDLE TRANSFER CASE

EX REAL comes with 2 speed transmission gearbox and transfer case with easy
adjustable motor gears spacer. Allow driver to shift into low range for more
torque while climbing hills and high range for blasting down the hills(GEAR
RATIO: 1ST SHIFT 2.6:1 | 2ND SHIFT 1.69:1). Give it the realistic and best low
speed crawling control. Inside the gearbox are used metal gears to increase
the strength and durability. Additionally, the front motor & 2 speed gearbox
setup follows the real crawler design, so the CG is at the front for better
accelerating traction. Besides, it keeps the space for user to do the preferring
interior designs.

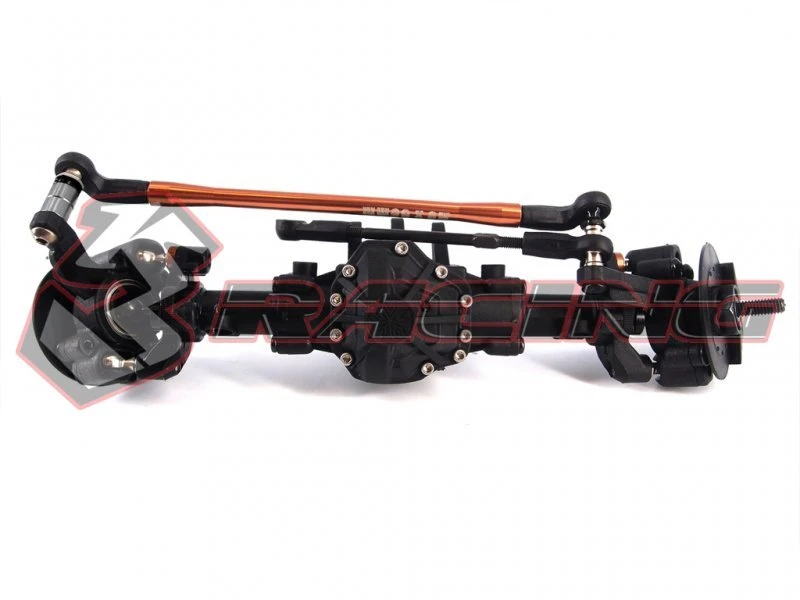

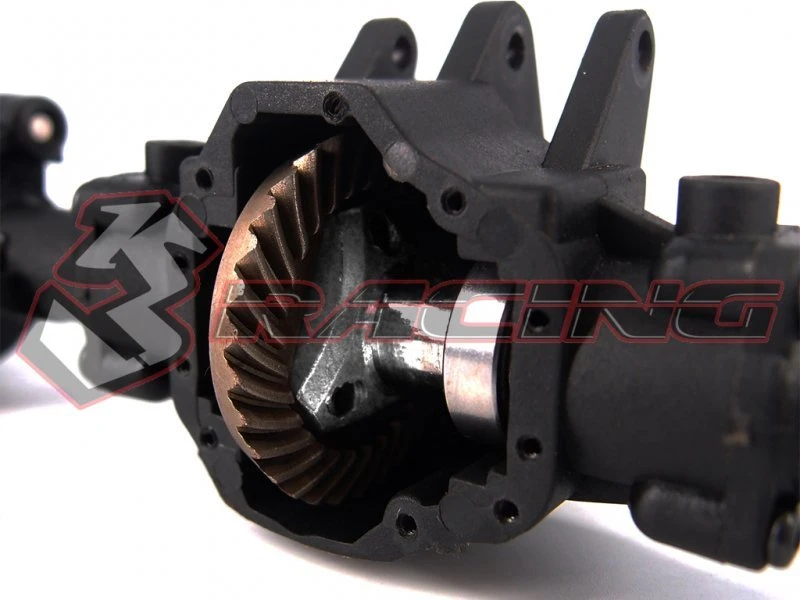

POWDER METALLURGY GEARS & METAL SOLID AXLES

EX REAL uses powder metallurgy gears to increase the strength and providing
smooth surface finish higher dimensional accuracy and part-to-part consistency,
increased EX REAL performance stability.

KNUCKLES & DIFF CASES

The knuckles design makes upper linkage closer to the chassis to increase the
ground clearance which can reduce the chances of blocking by the obstacles,
that is a huge advantage for climbing.

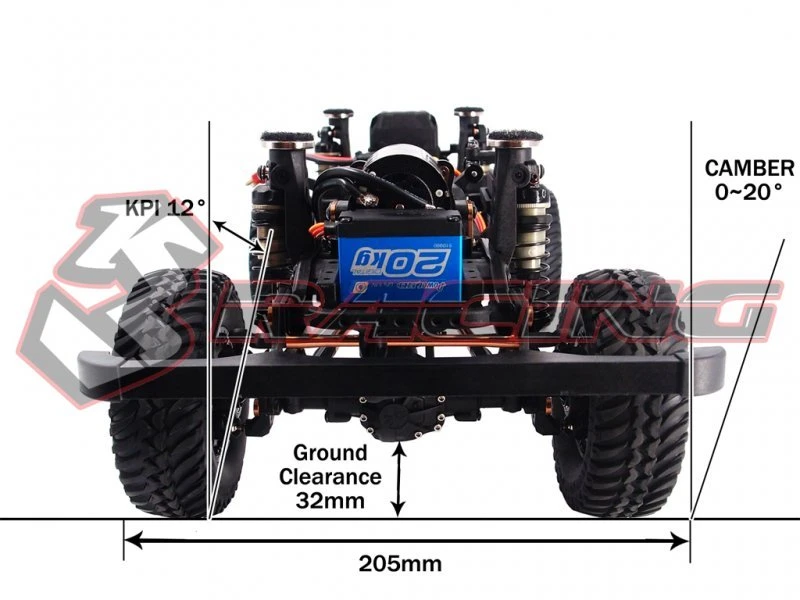

12° KINGPIN INCLINATION & ADJUSTABLE 0~20° CAMBER

EX REAL comes with 12°Kingpin inclination makes steering becomes smoother.
Adding adjustable 0~20° camber to level the axle to maximum the car performance
in difference terrains.

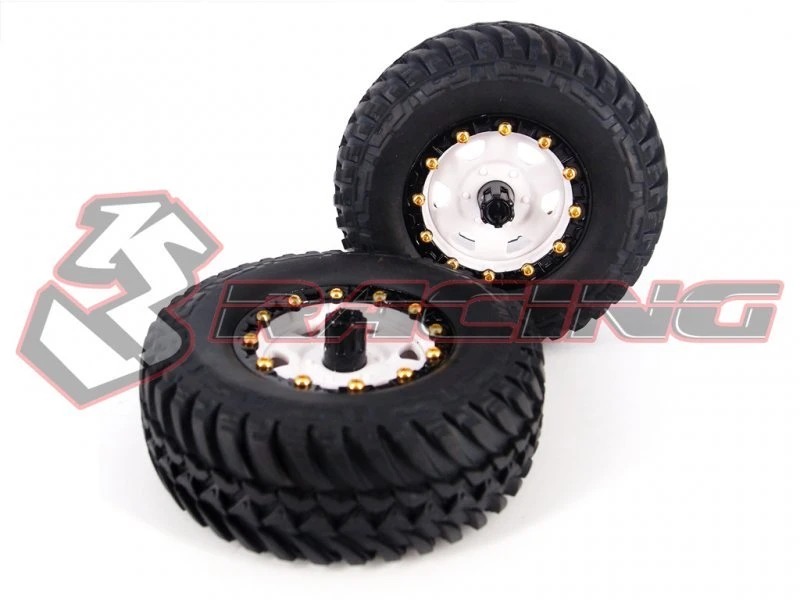

1.9 INCHES BEADLOCK RIMS WITH REALISTIC RUBBER TIRES

The beadlock rims included golden screws to improve the appearance of the car.
High traction realistic rubber tires, features huge and deep lug provides high
levels of traction in all off-road conditions.

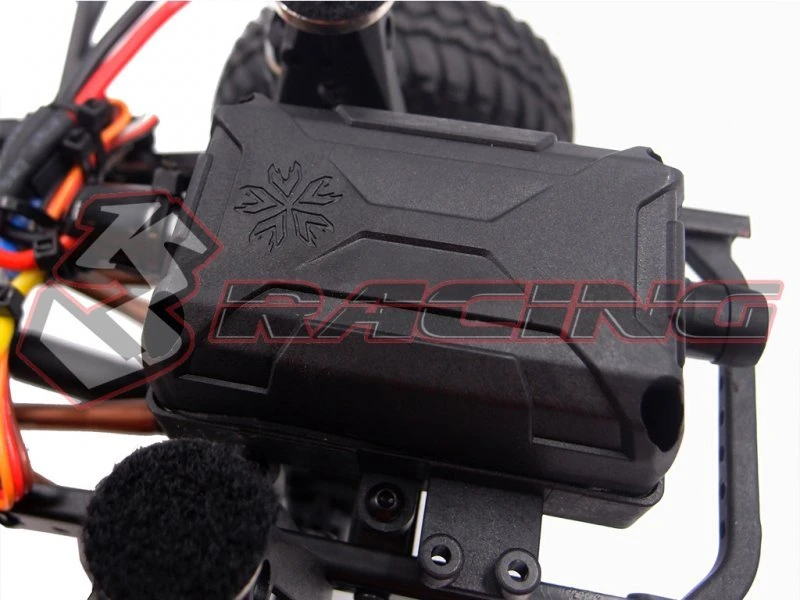

BASIC WATERPROOF RECEIVER CASE

For better weight distribution the receiver case is assembled at the rear part
of the vehicle.
The receiver case comes with rubber seal to provide the basic water-resistant
function; If user wants a more secure, user can use the silicone spray/paint(NOT
INCLUDED) to completely protect the case.

STEALTH BODY MOUNTS

To match up with the realistic look, EX REAL included a set of stealth body
mounts
to prevent the body posts exposed and affect the overall appearance. However,
EX REAL also included the standard body posts for user to use it on normal PC
body shells.

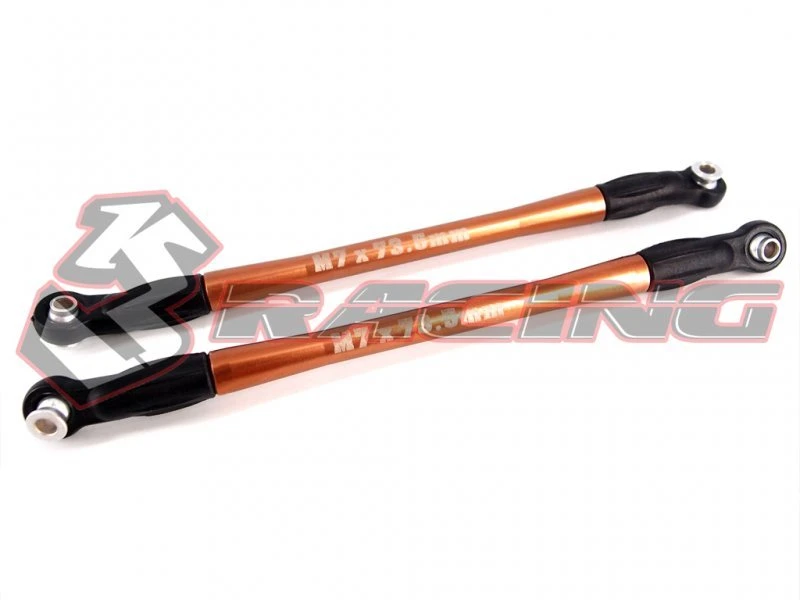

WHOLE KIT M7 METAL LINKAGES

Metal linkages increases whole car strength and durability.

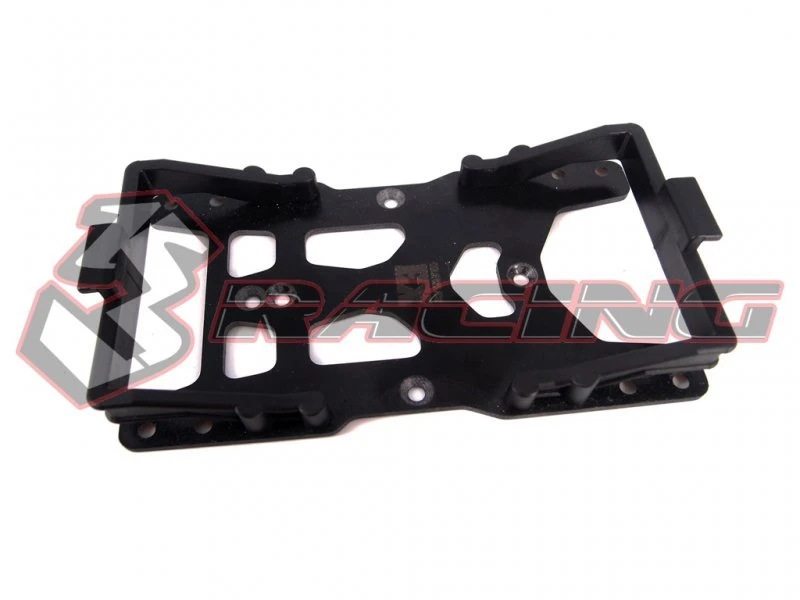

2.0MM FRP ADJUSTABLE BATTERY TRAY

Adjustable battery tray suitable for standard or short pack battery.

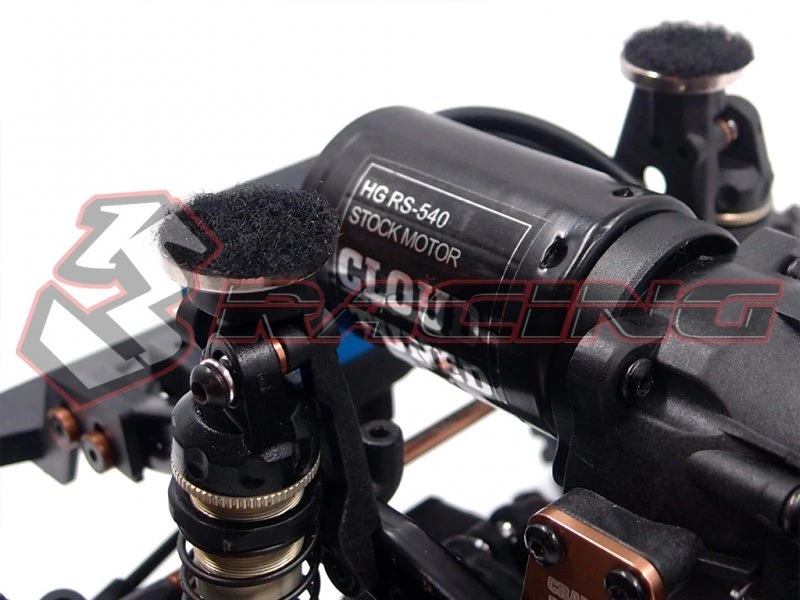

NOTE: Except motor is included, all other electronics and body shown in photos sold separately.

NOTE: Photos and descriptions depicts pre-production prototype, final production kit may subject to change without notice.
